【Innovative Connectivity】Three New RK3588 Development Boards Launched, Fully Optimized for Industrial-Grade Applications

We are proud to introduce our latest three series of RK3588 development boards, redefining embedded development with differentiated connectivity technologies:

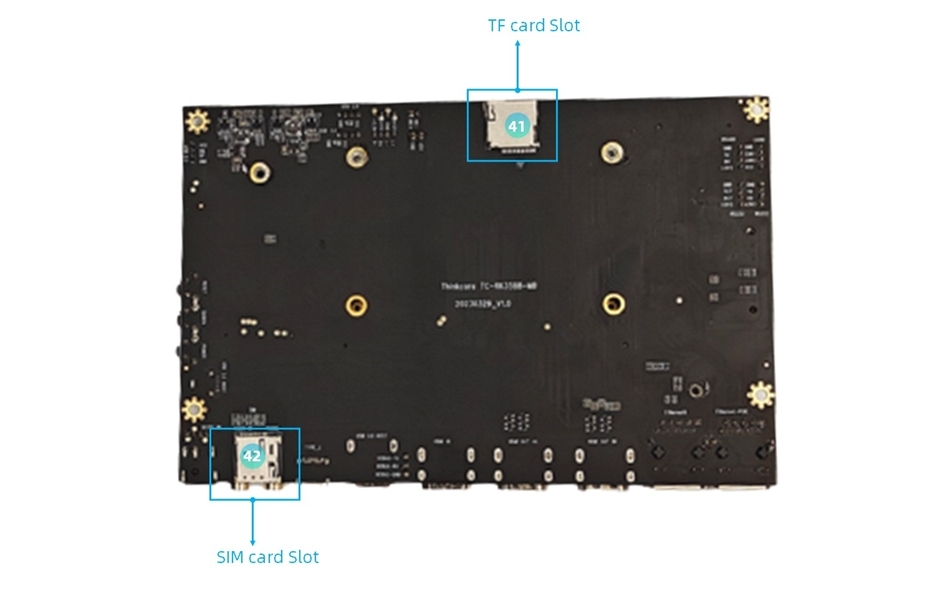

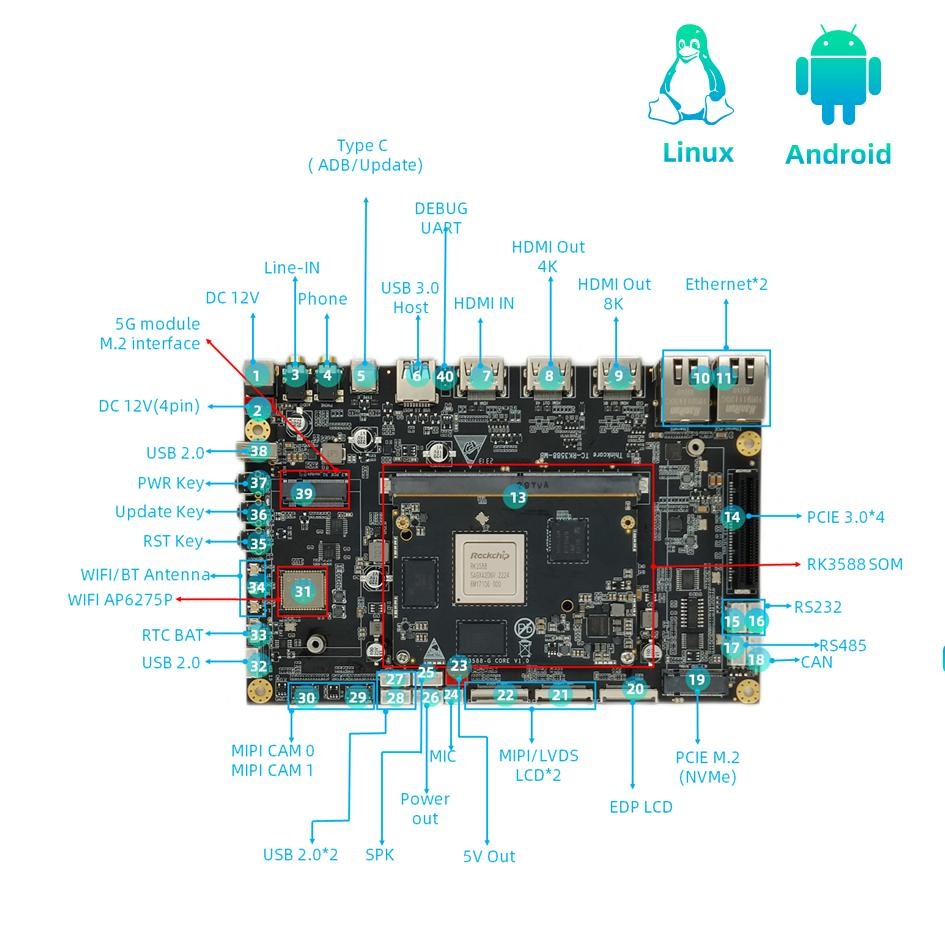

1. Gold Finger Edition

1) Gold-plated connectors, supporting PCIe/USB 3.1 expansion

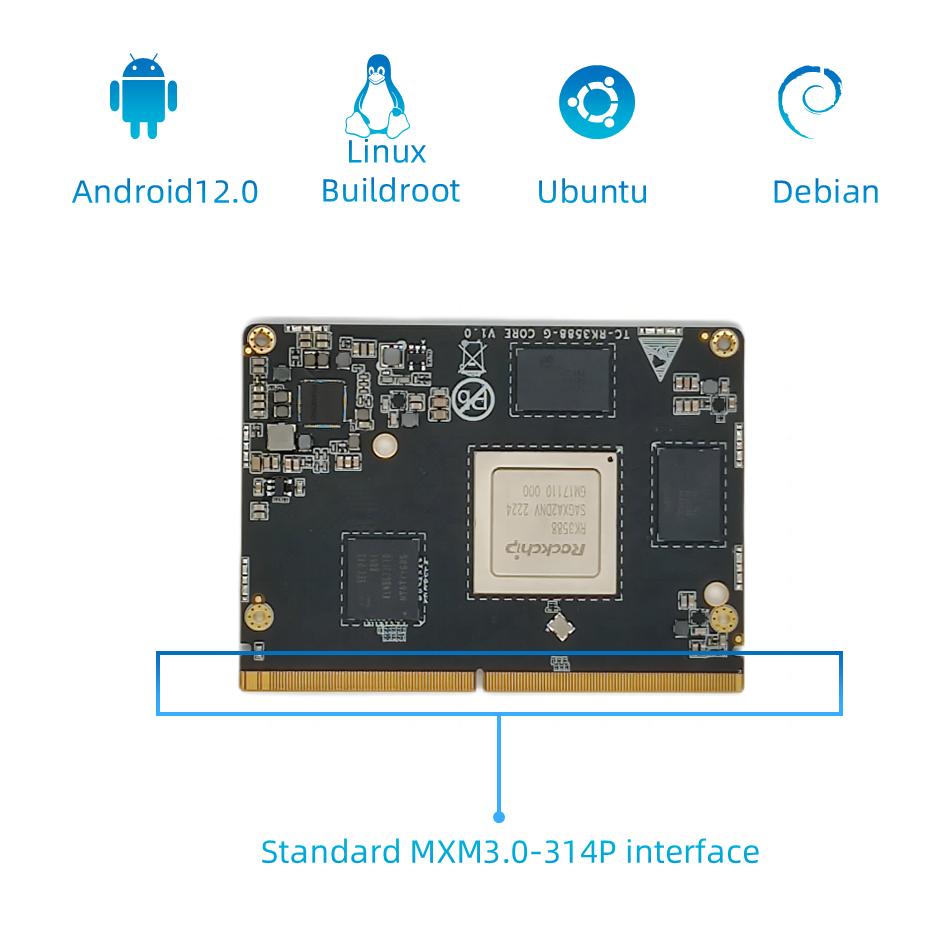

2) Gold finger connection,standard MXM3.0-314P interface, ideal for industrial automation equipment, modular servers, and other scenarios requiring frequent replacements.

3) Supports 2 * MIPI-CSI and 1 * HDMI IN input

4) Dual Gigabit Ethernet（1000 M bps + 2.5G）

5) PCIe3.0( * 4) expansion , Support Mini PCIe Expansion 5G support Dual band WiFi6 , support BT5.0, dual antenn

6) Both core board and baseboard available for purchase

Note:The actual hardware interfaces of the new version development board may differ. Please refer to the actual sample.

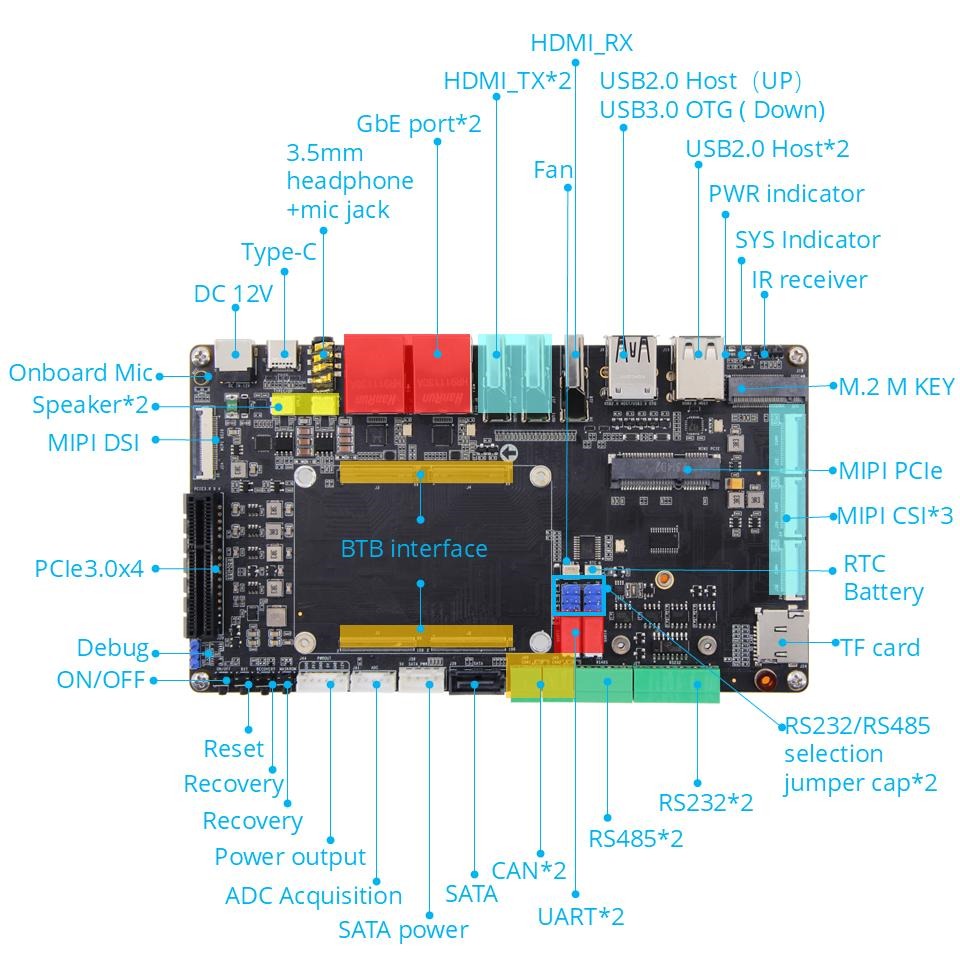

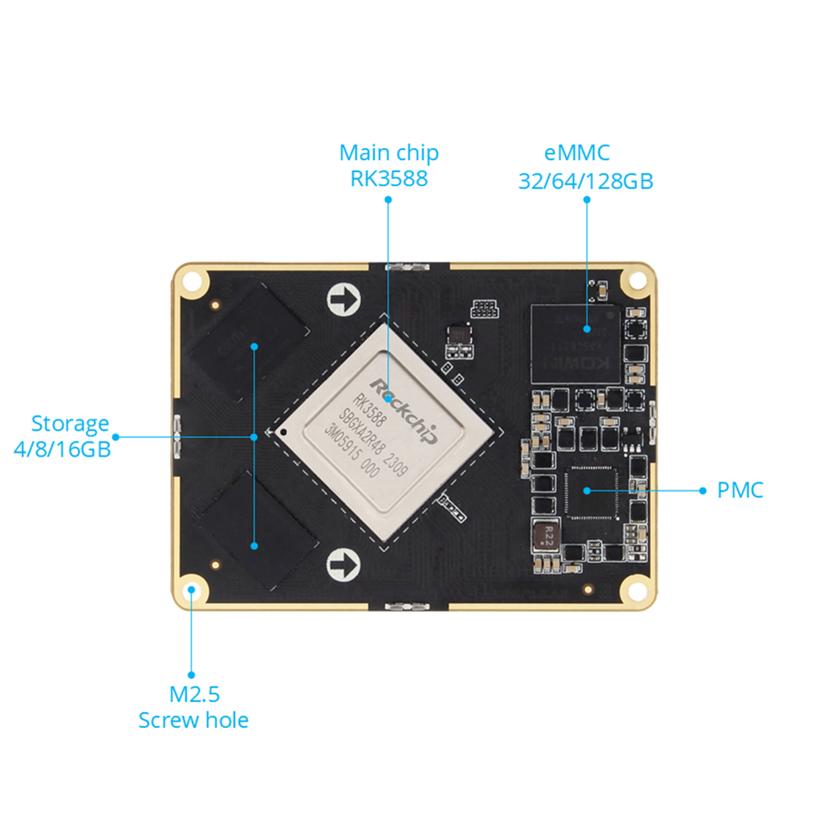

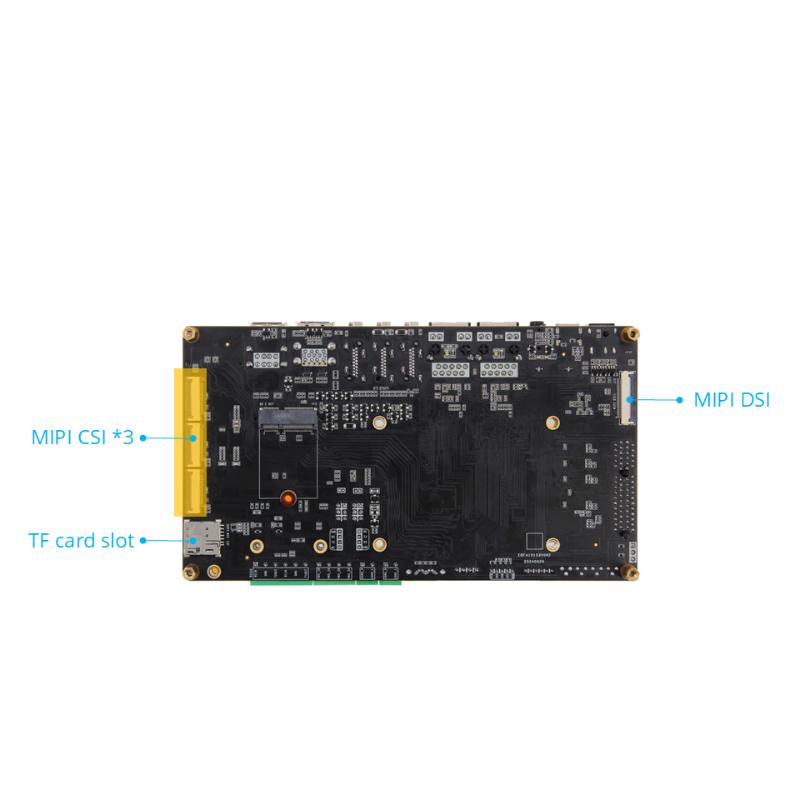

2. Board-to-Board Connector Edition

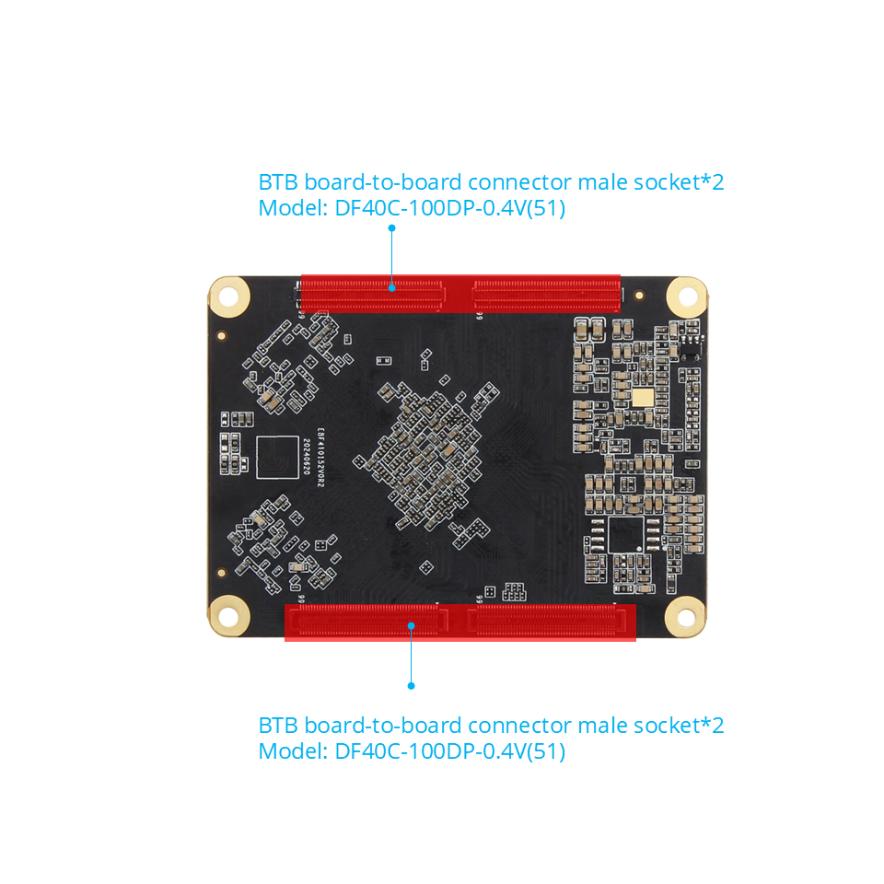

1) 400-pin expansion, 0.5mm pitch, full I/O access—perfect for space-constrained applications like medical devices and automotive systems.

2) Supports 6-channel camera input (4×2Lanes + 2×4Lanes), meeting diverse device requirements.

3) Multi-screen independent display:

a) Supports up to 8K@60fps + 4K@60fps + 2K@60fps (triple display)

b) Or 4K@60fps × 3 + 2K@60fps (quad display)

4) Dual M.2 Support:

a) (Back) M.2 slot for Wi-Fi/Bluetooth modules

b) (Front) M.2 slot for SSD storage

c) (Front) Mini PCIe for 4G/5G or Wi-Fi/Bluetooth modules

5) Wide-temperature operation: -40℃ to 85℃

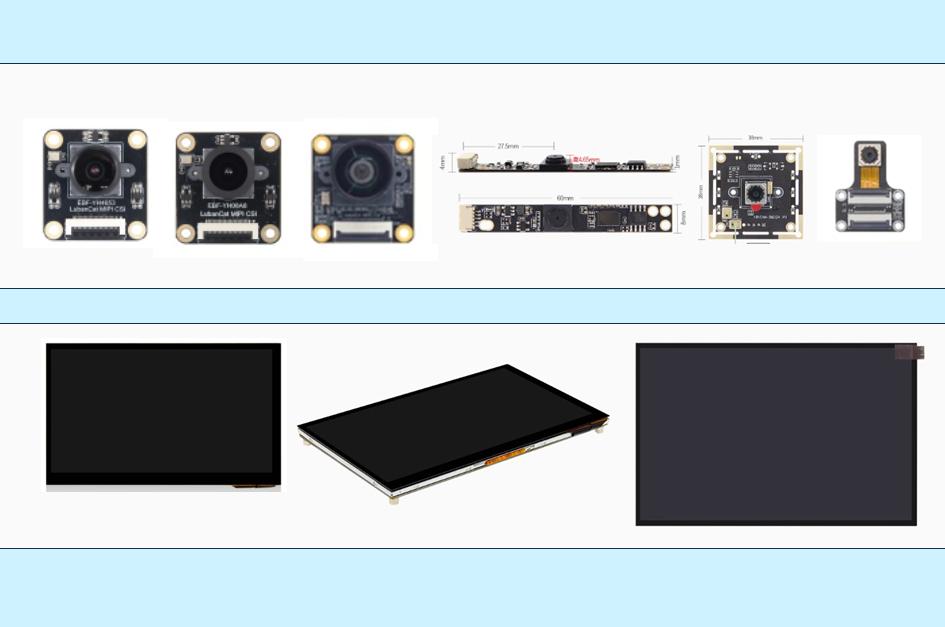

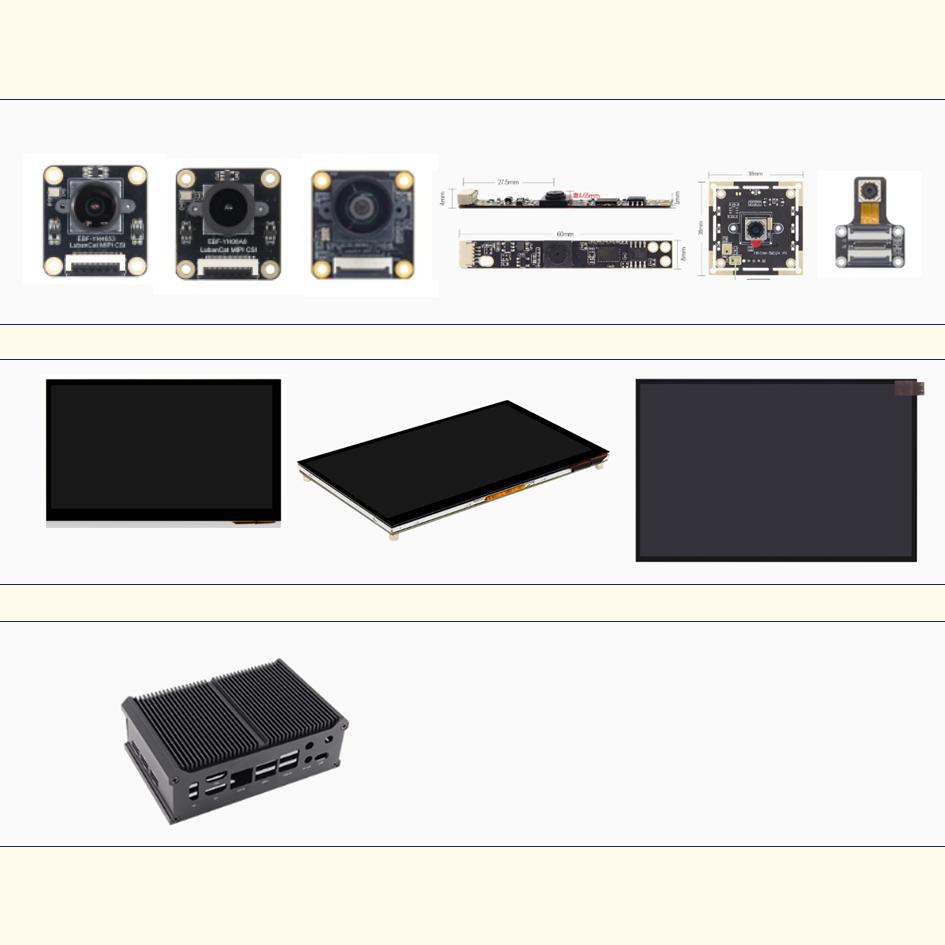

6) Optional Accessories:

• 5"/7"/10.1" MIPI display options
• Multiple MIPI camera options (OV8858/IMX415/GC08A8/GC4653/OV5693/OV2720/OV9726)
• Metal enclosure available—instantly transforms into an edge computing box

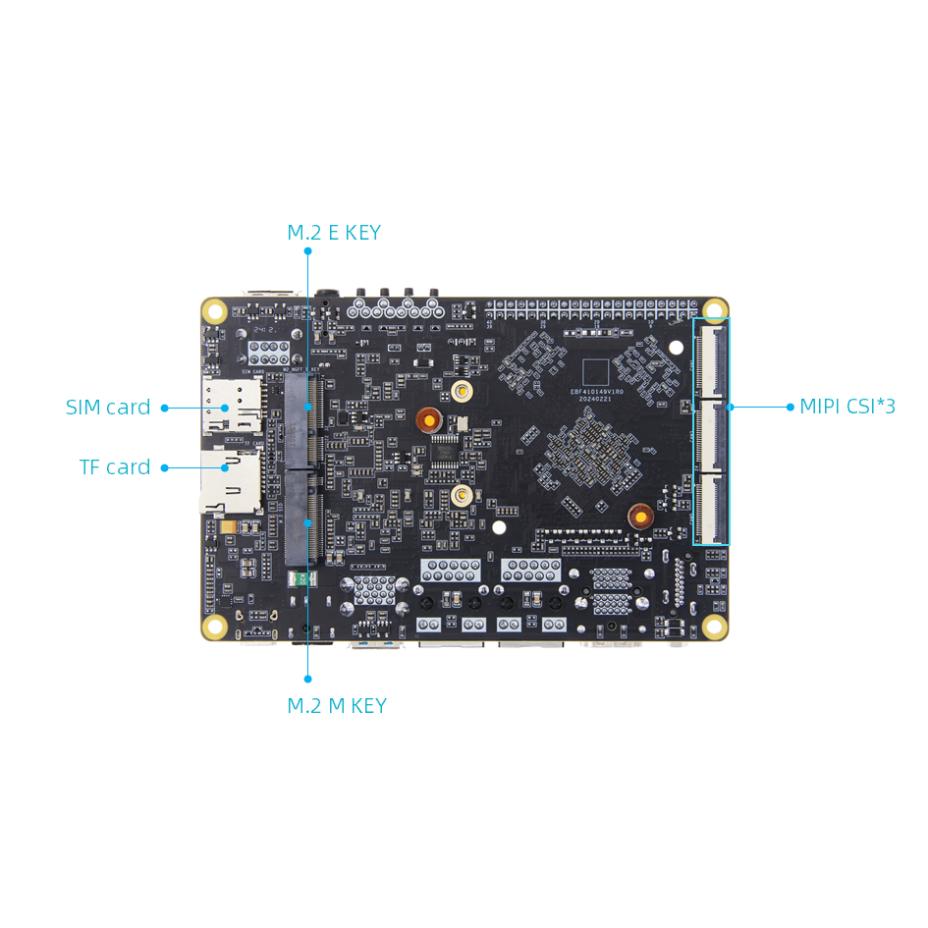

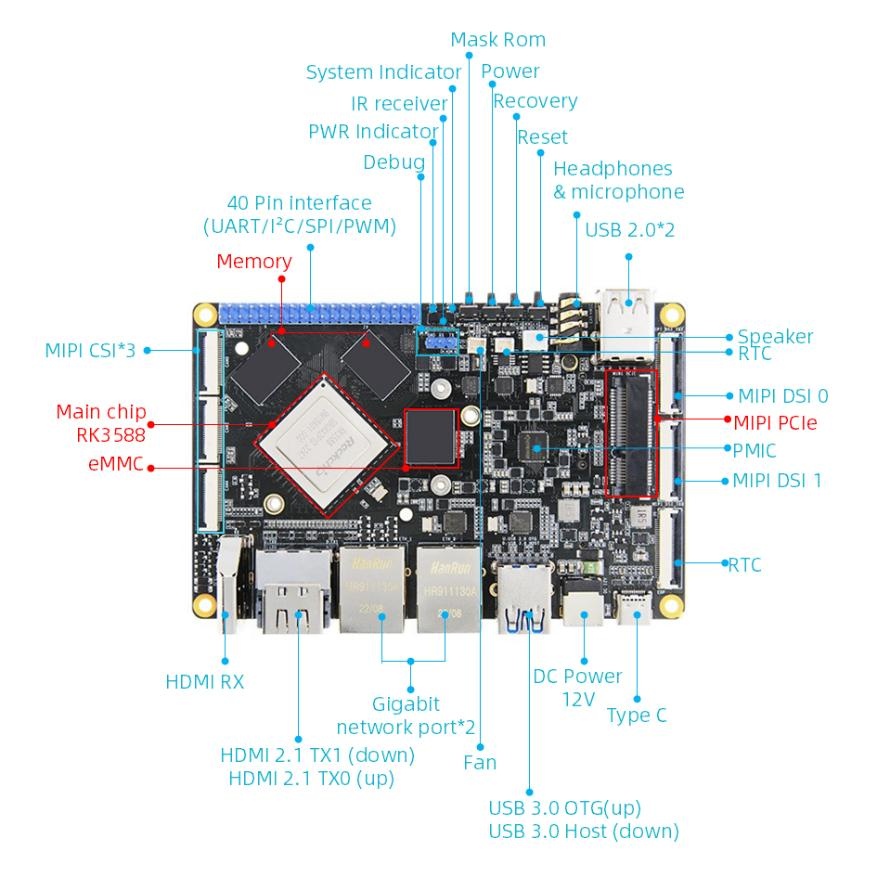

3. Integrated Board Edition

1) Fully integrated design with built-in WiFi 6/BT 5.2 modules—ideal for smart retail, edge computing, and fixed applications.

2) Can be Used as single board computer.

3) High cost-performance: Equipped with 4GB LPDDR + 32GB eMMC.

4) Multi-screen independent display:

a) Supports up to 8K@60fps + 4K@60fps + 2K@60fps (triple display)

b) Or 4K@60fps × 3 + 2K@60fps (quad display)

5) Optional Accessories:

• 5"/7"/10.1" MIPI display options
• Multiple MIPI camera options (OV8858/IMX415/GC08A8/GC4653/OV5693/OV2720/OV9726)
• Metal enclosure available—instantly converts into an edge AI box

Table 1: Asimple overview table for the 3 boards.

CTO Statement:
*"All three models leverage the RK3588’s 6TOPS NPU computing power but achieve scenario-specific optimization through innovative connectivity. Developers can now build systems like assembling building blocks."*

Innovative Connectivity: Three RK3588 Development Boards Launched for Industrial-Grade Applications

We are proud to introduce three new RK3588 development board series, redefining embedded development with differentiated connection technologies:

1. Gold Finger Edition

• Gold plating, supports PCIe/USB3.1 expansion
• Golden Finger connection, ideal for industrial automation and modular servers

2. Board-to-Board Connector Edition

• 0.5mm pitch high-density connection, 12-layer PCB stacking capability
• Perfect for space-constrained scenarios (medical devices, automotive systems) with 5Grms vibration resistance

3. Integrated Board Edition

• Fully integrated design with built-in WiFi6/BT5.2 modules
• Operates at -40℃~85℃, optimized for smart retail and edge computing
