RK3566 SBC Single Board Computer Compatible with Raspberry Pi

Thinkcore is a leading China RK3566 SBC Single Board Computer Compatible with Raspberry Pi manufacturers. The RK3566 SBC board is a high-performance and energy-efficient board that is ideal for a wide range of industrial and commercial applications. It is designed to offer exceptional processing power and reliability, making it an excellent choice for users in search of a reliable, high-quality computing solution.

 Rockchip RK3566 is used as the main chip, 22nm process technology, 1.8GHz main frequency, integrated quad-core 64-bit Cortex-A55 processor, Mali G52 2EE graphics.

 Trimmer and independent NPU;

 With 1TOPS computing power, it can be used for lightweight AI applications;

 Support 1 channel 4K60-frame decoded video output and 1080P encoding;

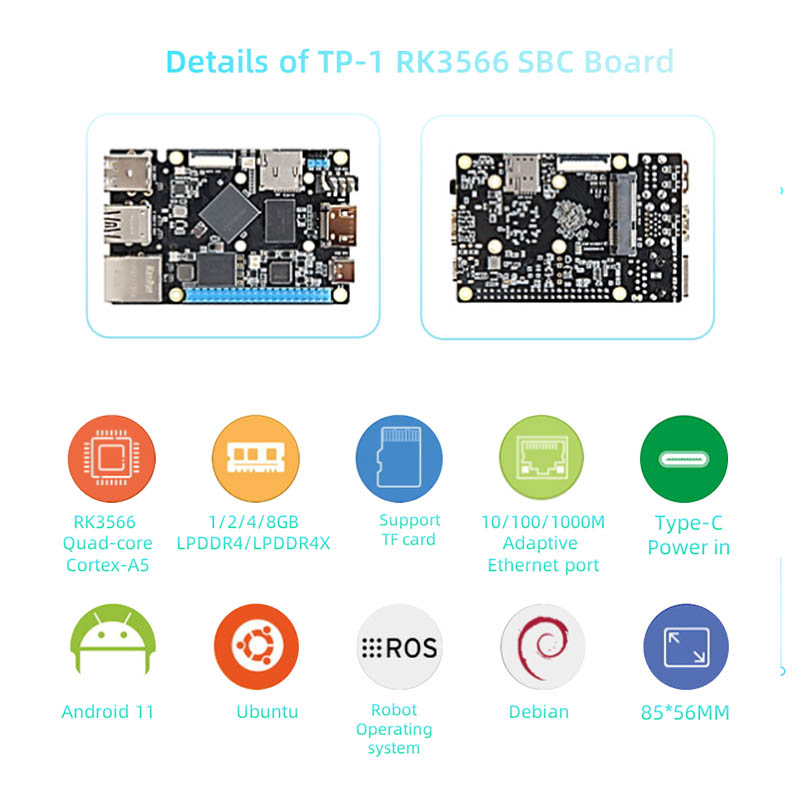

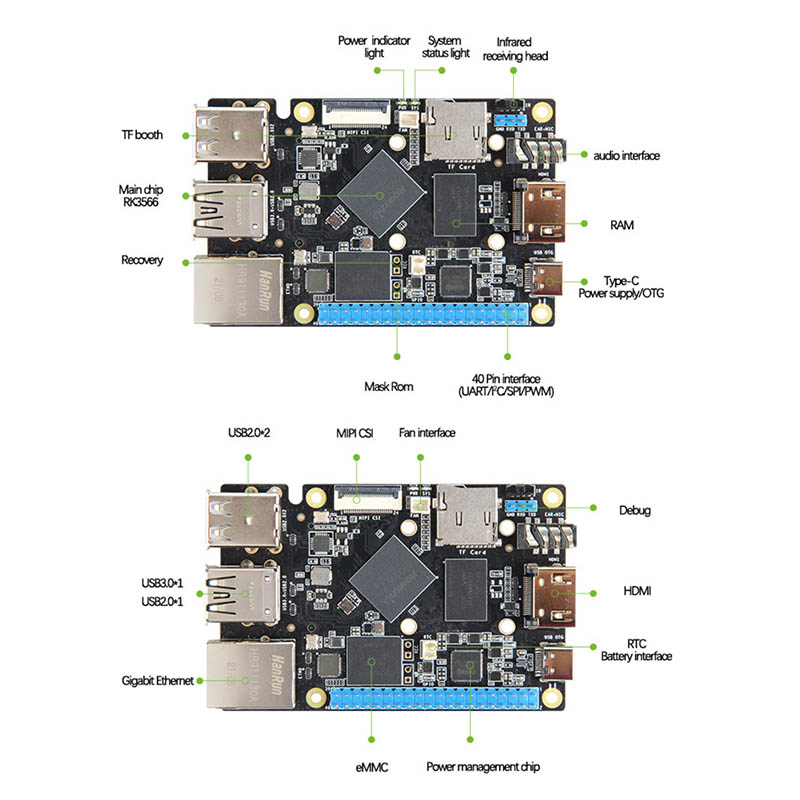

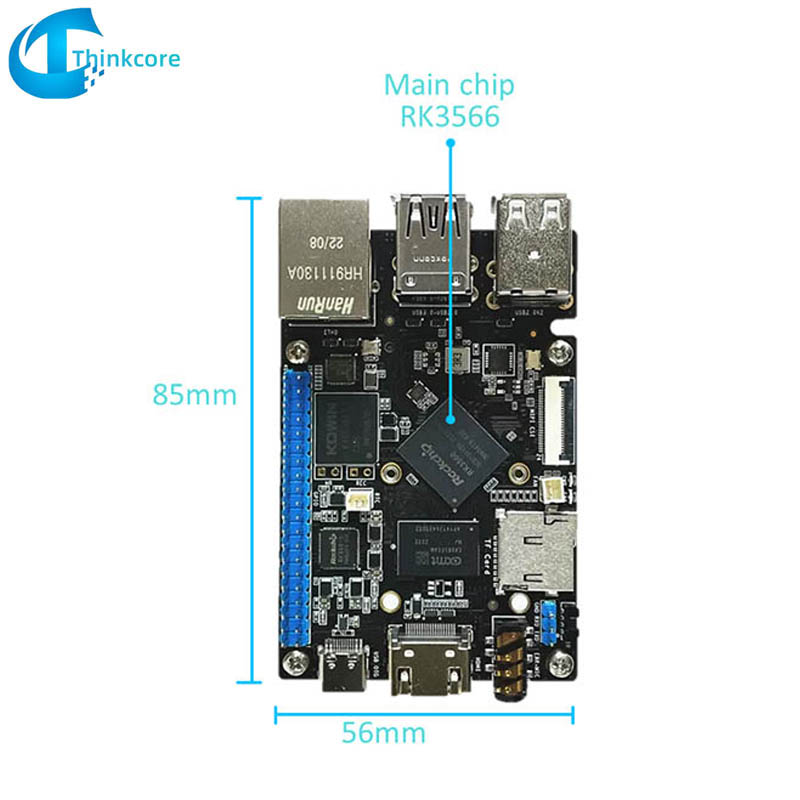

 A large number of on-board peripherals, integrated gigabit Ethernet, USB3.0, USB2.0, HDMI, Mini PCIe, MIPI screen interface, MIPI camera interface and other peripherals, reserved 40Pin unused pins, compatible with Raspberry PI interface; The board provides a variety of memory and storage configuration options, only 85*56 mm size, low power consumption, high performance, can easily run Linux or Android system;

 Android, Debain, and Ubuntu operating system images are available for a variety of application environments.

 Provide complete SDK driver development kit, design schematic and other resources, convenient for users to use and secondary development.

Product Parameters

Module: TP-1 ((with 1 Gigabit network port)

Power interface : 5V@3A DC input, Type-C interface

Main chip: RK3566(Quad-core Cortex-A55, 1.8GHz, Mali-G52)

Memor: 1/2/4/8GB, LPDDR4/4x, 1056MHz

Wireless network: 802.11ac, dual-band wireless network card, up to 433Mbps supp; Bluetooth supports BT4.2 protocol

HDMI: Mini-hdmi 2.0

Display port: MIPI- DSI

MIPI screen: interface, you can plug the MIPI screen

MIPI-CSI Camera interface: you can plug the OV5648 camera

USB: Type-C interface *1(OTG), which is shared with the power interface;

40Pin interface: Type-C interface *1(HOST), which cannot be used for power supply

Debug serial port: Compatible

with Raspberry PI 40Pin interface, support PWM, GPIO, I²C, SPI, UART
