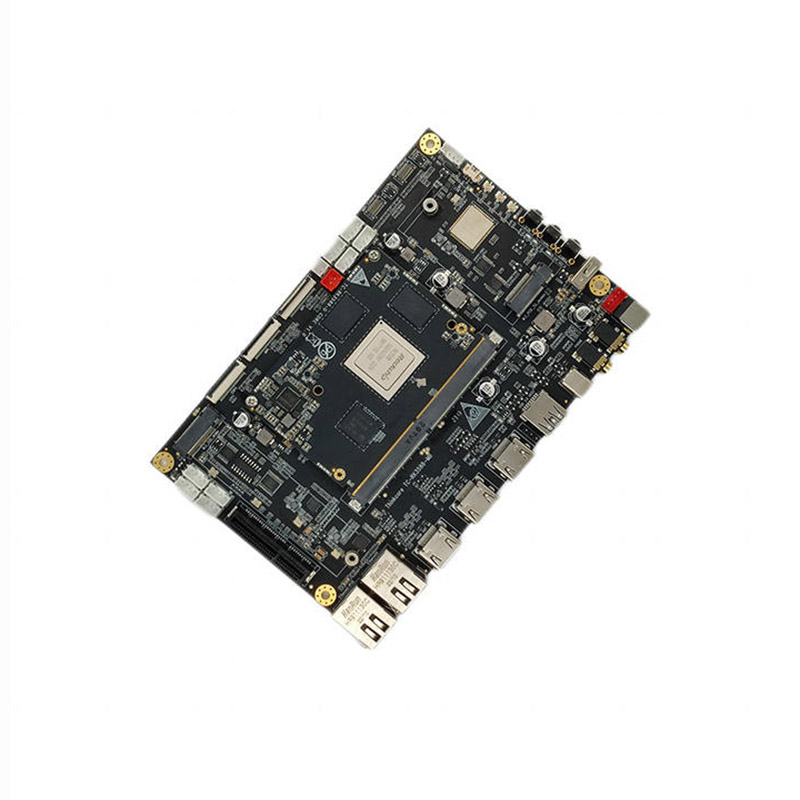

RK3588 Golden Finger Development Board

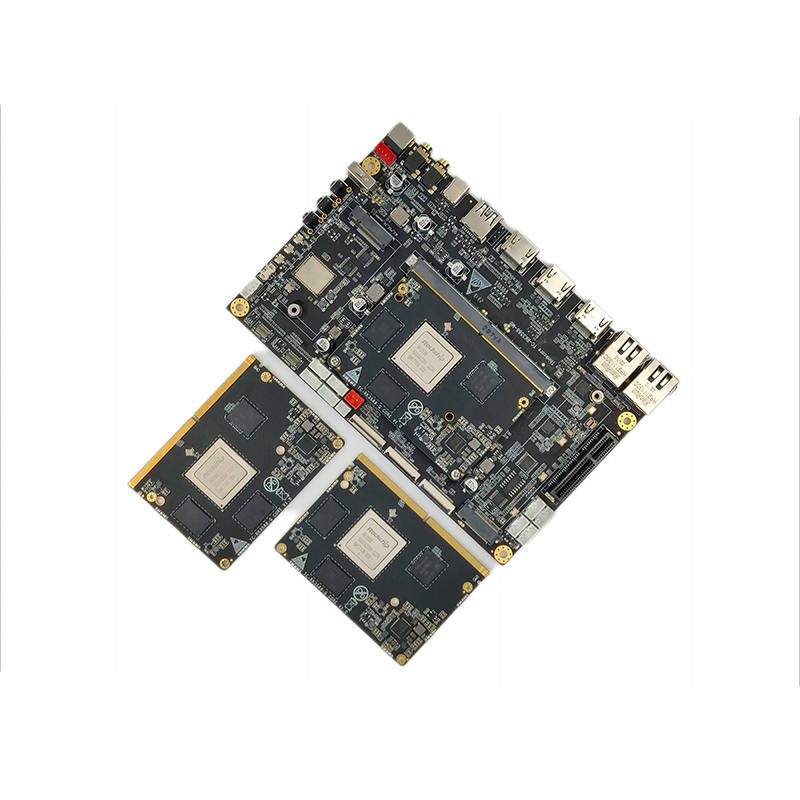

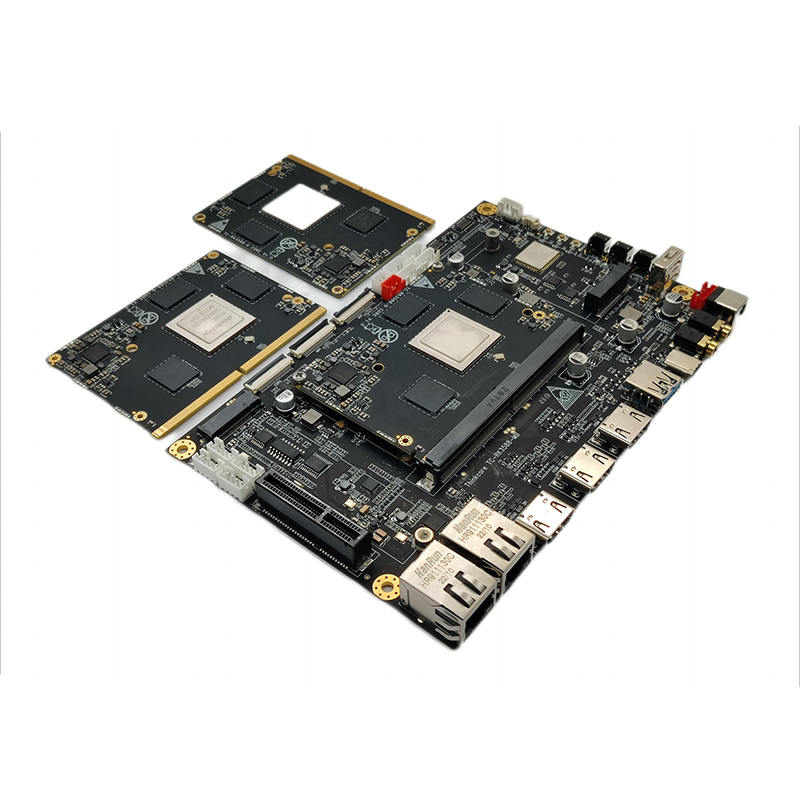

Thinkcore is RK3588 Golden Finger Development Board manufacturers and suppliers in China who can wholesale RK3588 Golden Finger Development Board. TC-RK3588 Gold finger development board consists of TC-RK3588 Goldfinger core board and bottom board.

About RK3588 chip

RK3588 is Rockchip's new-generation flagship AIoT chip. Adopted 8nm LP process and equipped with octa-core 64-bit CPU, its frequency is up to 2.4GHz. With Integrated ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, RK3588 can provide 6Tops computing power, support Mainstream deep learning framework; powerful RK3588 can bring more optimized performance for various AI application scenarios; support 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, It supports simultaneous editing and decoding, and can realize up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding; powerful video encoding and decoding capabilities can make the picture 8K high-definition presentation, and the picture quality is more delicate;

Up to 32GB of super large running memory can be configured, surpassing the capacity limit of previous memory, and the response speed is faster, which can meet the application requirements of products with high memory requirements and large storage capacity;

With HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multiple video output and HDMI RX2.0/MIPI-CSI/DVP video input interface, support multiple 8K video output and 4K video input, the highest It can realize seven different displays; integrated 48MP ISP with HDR&3DNR, supports dual MIPI-CSI camera input;

Integrates PCIe3.0/GMAC/SDIO3.0/USB3.0, which can expand multi-channel Gigabit Ethernet, WiFi6/Bluetooth, 5G/4G LTE, allowing network communication to have a higher rate;

It can simultaneously support the expansion of multiple PCIe3.0/SATA3.0 SSD/HDD large-capacity storage devices, allowing the device to easily expand to TB-level ultra-large capacity;

With PCIE3.0, SATA3.0, I2S, I2C, CAN, UART, SPDIF, SDIO3.0, MIPI-CSI, MIPI-DSI, USB3.0, USB2.0, SPI, GPIO and other expansion interfaces;

About the core board

TC-RK3588 Golden Finger core board adopts Rockchip RK3588 new generation flagship octa-core 64-bit processor, which can be equipped with a maximum of 32GB large memory; supports 8K video codec; has rich interfaces, supports multiple hard drives, Gigabit network, WiFi6, 5G /4G expansion and multiple video input and output; support multiple operating systems; applicable to ARM PC, edge computing, cloud server, smart NVR, smart big screen, AR/VR, smart car and other fields;

About the development board

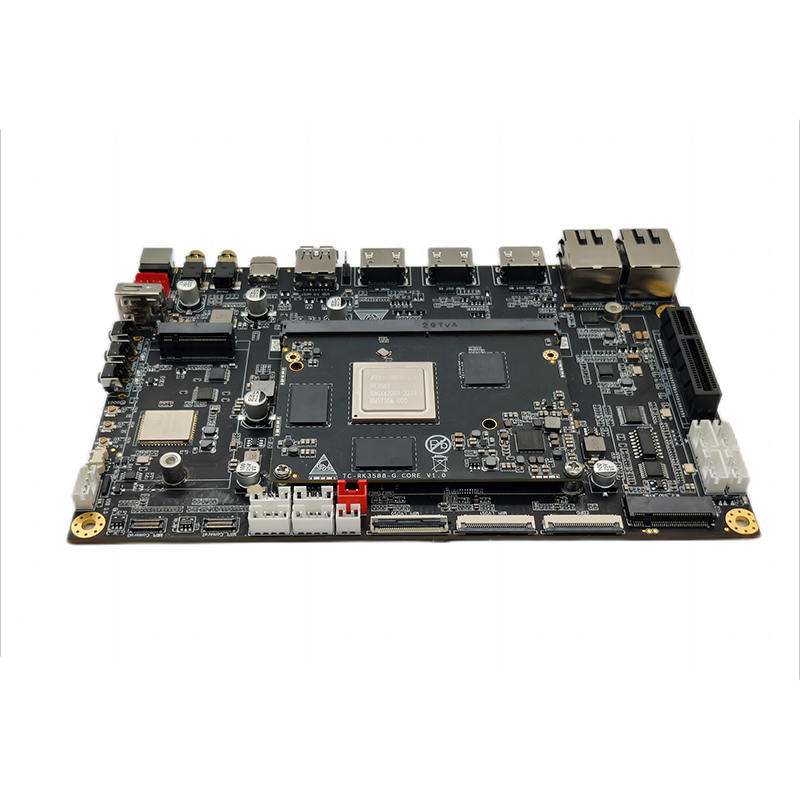

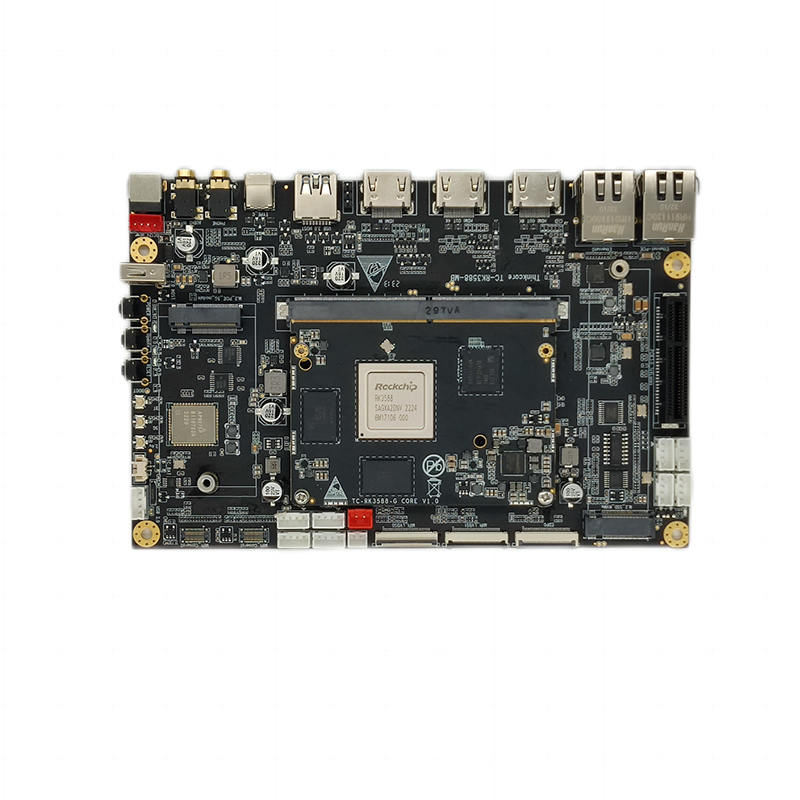

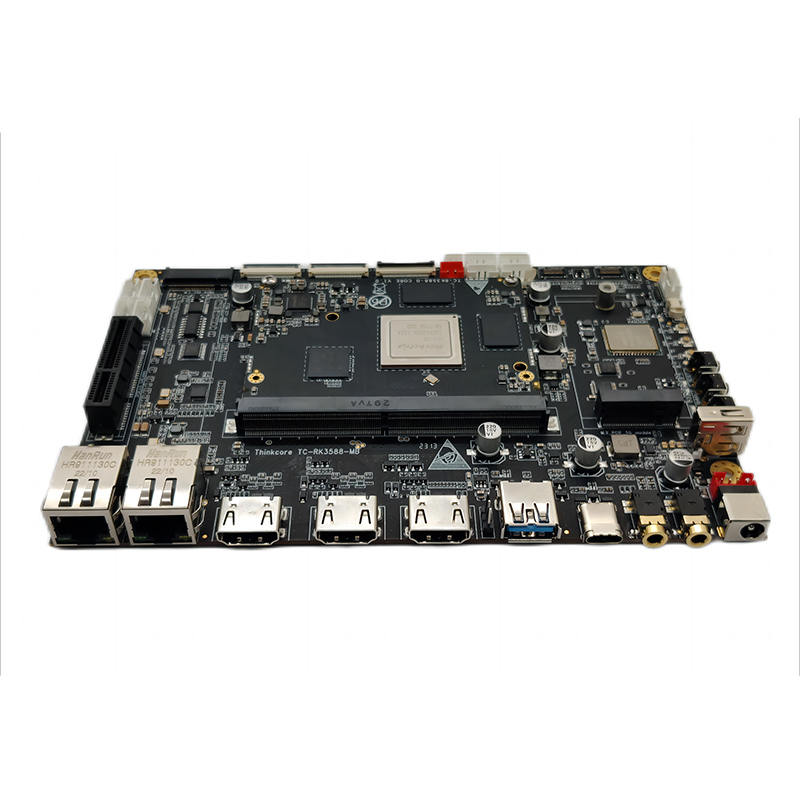

The TC-RK3588 development board adopts the Goldfinger core board + bottom board design. The core board adopts the standard MXM3.0-314P interface, which has rich pins and is more convenient to connect with the backplane; the backplane has rich onboard interfaces, including 5G PCIE interface, USB3.0, USB2.0, Gigabit network card, 2.5 G network card, WIFI6, Bluetooth, audio and video input and output, HDMI 4K output, HDMI 8K output, MIPI, eDP, LVDS and other display and communication interfaces, HDMI input, multiple MIPI cameras, TF card, RS485, RS232, TTL, RTC, Power supply output, PCIE3.0, PCIE M.2 hard disk and other interfaces. The development platform has excellent electrical characteristics and anti-interference characteristics, and the work is stable and reliable.

The TC-RK3588 platform supports Android 12.0, Linux Buildroot, Ubuntu, and Debian operating systems. The system runs stably and reliably, providing a safe and stable system environment for product research and production; the SDK is open source, and the core board schematic diagram and base board hardware information are open to the outside world, which is conducive to user autonomy develop.
