Rockchip RK3528a Linux Motherboard Onboard SBC Board

Rockchip RK3528a Linux Motherboard Onboard SBC Board is mainly for makers and embedded entry developers. It can be used as a mobile single-board computer and embedded motherboard, with office, education, programming development, embedded development and other functions.

Use Rockchip RK3528a Linux Motherboard Onboard SBC Board as the main chip, with 2.4G WiFi module, USB HOST, HDMI2.0, Gigabit Ethernet, TF card holder and other peripherals, lead out 30Pin unused pins, support GPIO, SPI, UART, PWM functions.

The board provides a variety of memory configurations to choose from, only 56*65mm in size, small and exquisite, low power consumption and high performance, can easily run Linux or Android system.

Officially supports mainstream Android 13, Debain, Ubuntu operating system images, which can be applied to 4 different application environments.

It is completely open source, provides official tutorials, and provides complete SDK driver development kits, design schematics and other resources to facilitate user use and secondary development.

Rockchip RK3528a Linux Motherboard Onboard SBC Board Parameters

1. CPU: Main chip: RK3528A, 4-core 64-bit Cortex-A53

2. GPU: ARM Mali-450

3. Memory: Onboard LPDDR4, 1/2/4 GB

4. Storage: eMMC, 0/8/32GB, supports eMMC boot system

5. Power interface: 5V@3A DC input, Type-C interface

6. Ethernet: 10/100/1000M adaptive Ethernet port

7. USB2.0: Type-A interface * 3 (HOST)

8. USB3.0: Type-A interface * 1 (HOST)

9. HDMI: HDMI2.0 screen interface * 1, the highest resolution supports 4096x2160@60fps

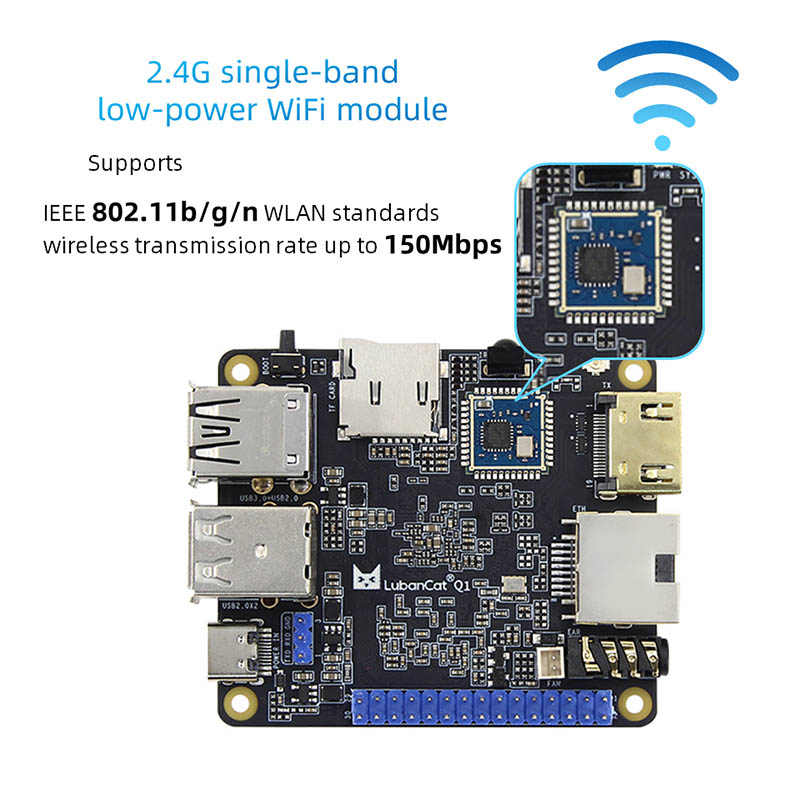

10. WiFi: Onboard supports 2.4G WiFi, model: BL-RTL8189FS

11. TF card holder: SD3.0 interface, up to 512GB, supports TF card boot system

12. 1O interface: 30Pin 2.54mm pin interface, supports GPIO, SPI, UART, PWM functions

13. Debug serial port: default parameter 1500000-8-N-1

14. Audio: headphone interface*1, can only output audio

15. Button: Maskroom button*1

16. Infrared receiver: supports infrared remote control function

17. Fan interface: supports installation of 5V fan cooling

18. LED: power indicator*1; system indicator*1

19. Size: 56*65mm
