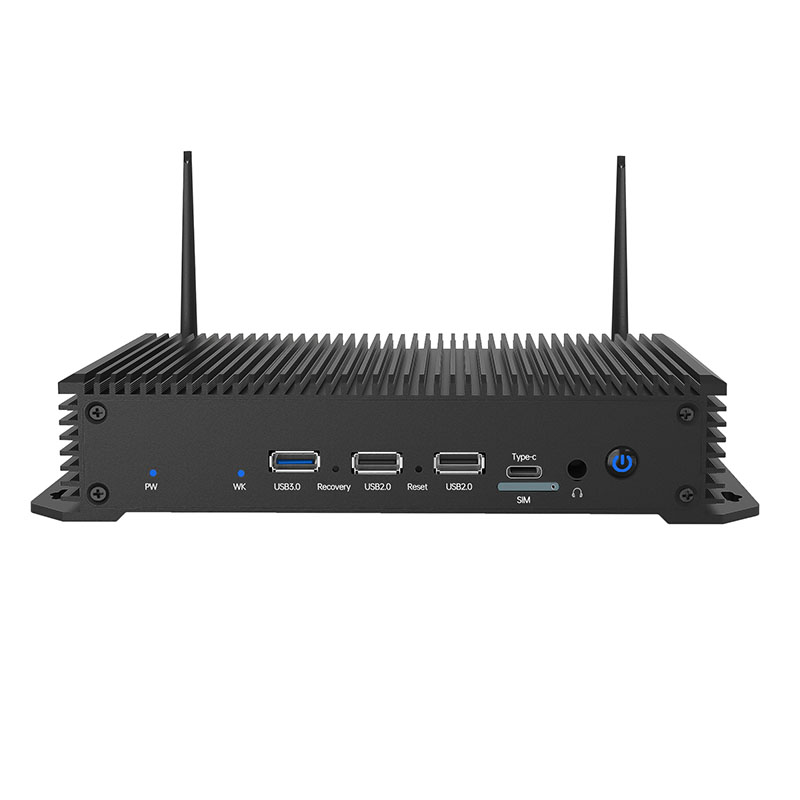

Rockchip RK3576 Embedded ARM Industrial Host / AI Edge Computing Smart Box

This RK3576 edge computing control board uses the new generation of domestic RK3576, a high-performance, low-power processor, integrating 4-core Cortex-A72 and 4-core Cortex-A53 and an independent NEON coprocessor, with a main frequency of 2.3GHz. It is suitable for ARM PC, edge computing, personal mobile Internet devices and other multimedia products.

GPU-ARM Mali-G52-MC3

Fully compatible with 0penGLES1.1/2.0/3.2, 0penCL 2.0 and Vulkan 1.1.

The special 2D hardware engine with MMU will maximize display performance and provide a smooth operating experience.

6TOPs independent NPU computing power

The embedded NPU supports INT4/INT8/INT16/FP16/BF16/TF32 mixed operations. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted. Video decoder supports H.264, H.265, VP9AV1 and AVS2 etc. up to 8K@30fps or 4K@120fps, and video encoder supports H.264 and H.265 up to4K@60fps, high-quality JPEG encoder/decoder supports up to 4K@60fps.

Supports mainstream operating systems

Supports Linux (Ubuntu, Debian), Buildroot, Android systems, safe, stable and reliable, meeting different development needs

Product Parameters

Chipset: RK3576 with Octa-core , Quad-Core Cortex-A72 and Quad-Core Cortex-A53

GPU : Mali-G52 MC3

NPU : 6.0 TOPS for INT8

Supports INT4,INT8,INT16,FP16,BF16 and TF32 operation"

FLASH: EMMC:16G/ 32GB /64G /128G Or UFS: 32GB /64G /128G/256G/512G/1T

SDRAM: LPDDR5: 32bit 4GB /8GB/16GB

Power Supply : DC 12V/2.0A

Power Indicator (LED): Power ON :Blue

OS: Android 14.0/Debian/buildroot/Ubuntu/armbian/wayland

Video Decoder:

 H.264 /AVC up to 4K@60fpS

 H.265/HEVC up to 8K@30fps or 4K@120fpS

 VP9 up to 8K@30fps or 4K@120fpS

 AVS2 up to 8K@30fps or 4K@120fpS

 AV1 up to 8K@30fps or 4K@120fpS

Video Encoder: H.264 and H.265 up to 4K@60fpS, Supports multi-stream encoding

JPEG Encoder:

 YUV400/YUV420/YUV422/YUV444

 Supports JPEG up to 4K@60fpS

 Supports image size is form 16x16 to 65520x65520

JPEG Decoder:

 YUV400/YUV411/YUV420/YUV422/YUV440/YUV444

 Supports JPEG up to 4K@60fpS

 Supports image size is form 48x48 to 65520x65520

 Support Media format: Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

 Support Music format: MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE

 Support Photo format: HD JPEG/BMP/GIF/PNG/TIFF

HDR : HDR10 / HDR HLG/HDR ViVid

USB: 1 Type-c USB 3.2 Gen1, 1 Type-A USB 3.2 Gen1 and 2 High speed USB 2.0

Display Port: HDMI 2.1 and type-c dp v1.4

HDD file system: FAT16/FAT32/NTFS

Support Subtitle: SRT/SMI/SUB/SSA/IDX+USB

High Definition video output: 4K(3840*2160 pixel )

LAN : Ethernet:2Ports 1000M standard RJ-45

Wireless: AP6256 80MHZ 2.4G /5G dual-band Wifi, IEEE 802.11 a/b/g/n/ac

Bluetooth: V5.1 EDR and BLE

HDMI: HDMI 2.1 for 4k@120Hz

Product dimension: 190 x 106 x 38 mm

Unit packing: (L*W*H): 208 x 140 x 66 mm

Unit packing (G.W.): 0.48 Kg

Product Colour: Black
