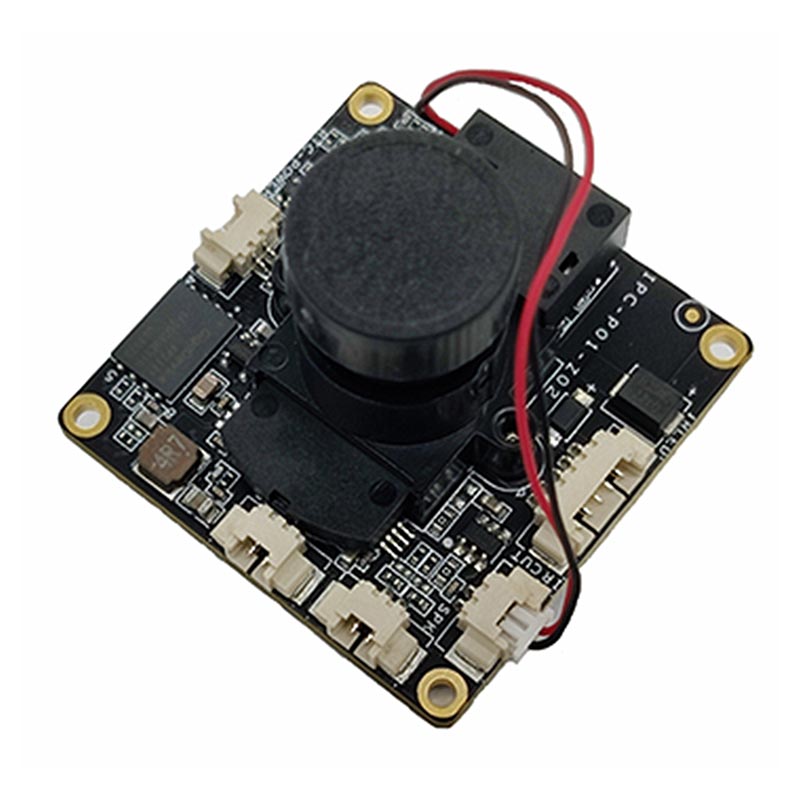

TC-RV1106 AI IP Camera Module

Thinkcore is a leading China TC-RV1106 AI IP Camera Module manufacturers. TV-RV1106 IPC 38 is a video camera module that is embedded with artificial intelligence algorithms that help to enhance and automate video surveillance systems. It is a compact, low-power camera module that is designed for easy integration into existing or new video surveillance systems. The module supports network connectivity, allowing it to communicate with other devices on the same network, such as a server or cloud storage.

Send Inquiry

Product Description

Thinkcore is a leading China TC-RV1106 AI IP Camera Module manufacturers.

1.High-quality video capture: The camera module provides high-definition video capture with features like night vision, motion detection, and automatic exposure adjustment to ensure high-quality video in all lighting conditions.

2.Artificial intelligence and machine learning algorithms: The AI algorithms integrated into the module provide intelligent video analytics and automatic detection of unusual activities or objects, such as movement in prohibited areas or a potential threat.

3.Network connectivity: The module supports network connectivity using protocols like Wi-Fi, Ethernet, and Bluetooth, making it easy to integrate into network-connected video surveillance systems.

4.Customization and Development: The AI IP camera module is designed to be flexible and customizable, allowing it to integrate with a wide range of applications and projects. It comes with an SDK, development tools and application notes, which can help developers quickly integrate the module with their project needs.

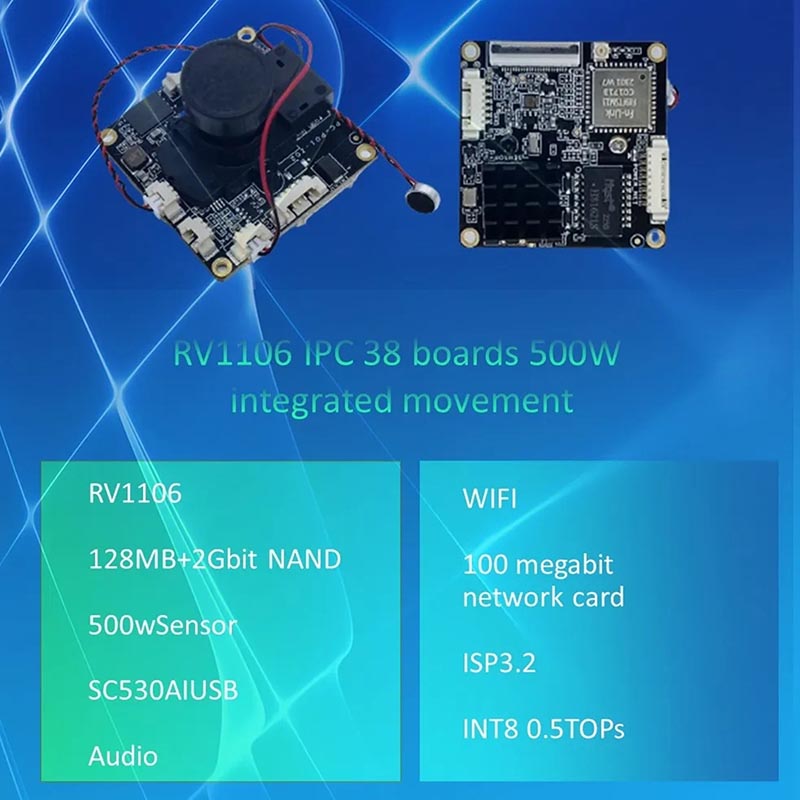

TC-RV1106 IPC 38 Board Specifications

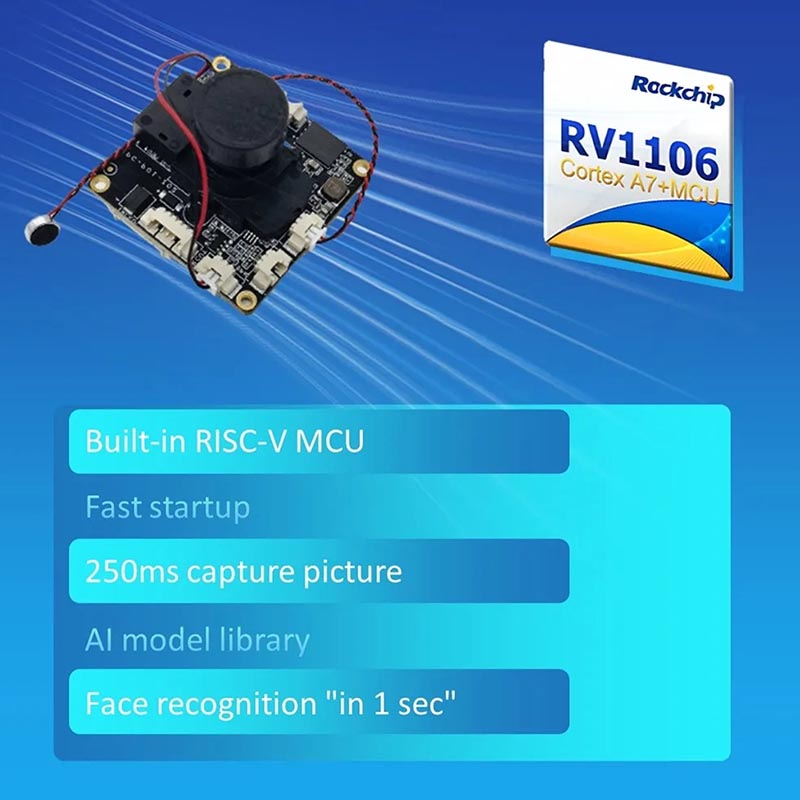

CPU	Rockchip RV1106 Quad-core A7，14nm，1.5GHz
RAM	Built-in 1Gb to 2Gb DDR3L
ROM	2Gb NAND Flash，support NOR Flash

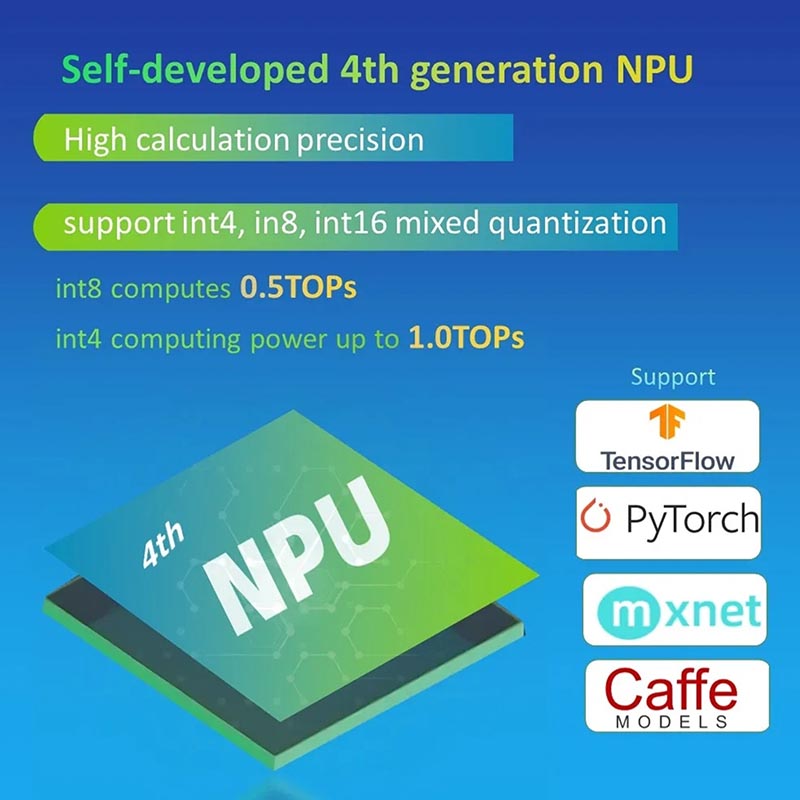

NPU	0.5TOPS, supports RKNN AI framework, and can implement common AI framework model transformation (caffe, darknet, mxnet, onnx, pytorch, tensorflow, tflite) and algorithm support
Sensor	5 million SC530AI monocular Sensor
CSI	4 Lane MIPI CSI supports 5 million @25fps and supports access to a maximum of 3 sensors
DSI	NA
WIFI	SDIO WIFI，IEEE 802.11b/g/n
4G	USB 4G module, support CAT4, CAT1 and other mainstream brand modules
Ethernet port	Adaptive 10/100Mbps 100 megabits, supporting MDIX functions
USB	OTG2.0 X1
MIC	Simulate omnidirectional MIC
SPK	Independent external Audio Coder, pickup and Speak, with 3W power amplifier, Line out is not supported
Photodetector	Optional (ISP induction night function)
Reflector	Expandable LED fill light board supports white light /IR infrared fill light

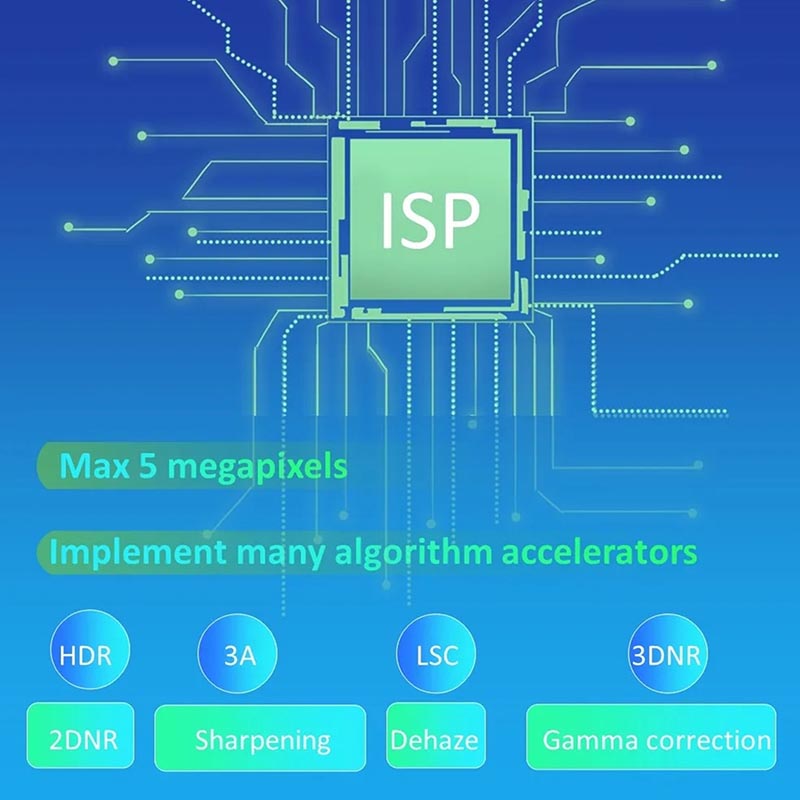

ISP	The third generation of the ISP, 5 (2 f HDR / 3 NDR/WDR/BLC/DPCC/PDAF/LSC

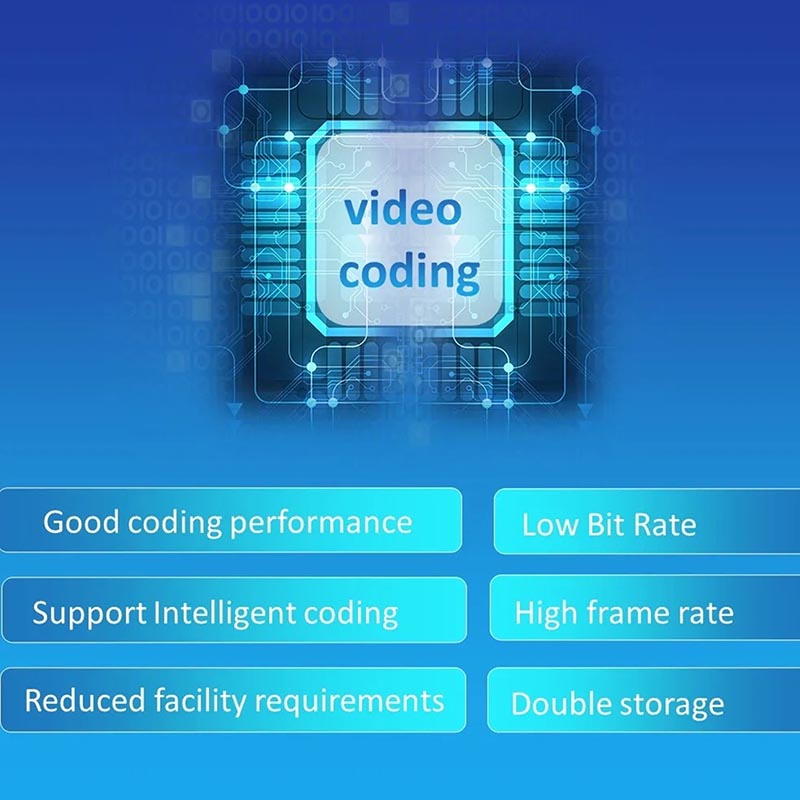

Encoder	H.264/265 5M30FPS，5M@60FPS JPEG snapshot，Six bit rate control modes (CBR, VBR, FIXQP, AVBR, QPMAP, and CVBR)
System support	Linux (Support fast startup, first frame valid frame out time < 150ms)
Operating temperature	-20℃~70℃
Support platform	MCU、ARM、Windows、Linux、Android
