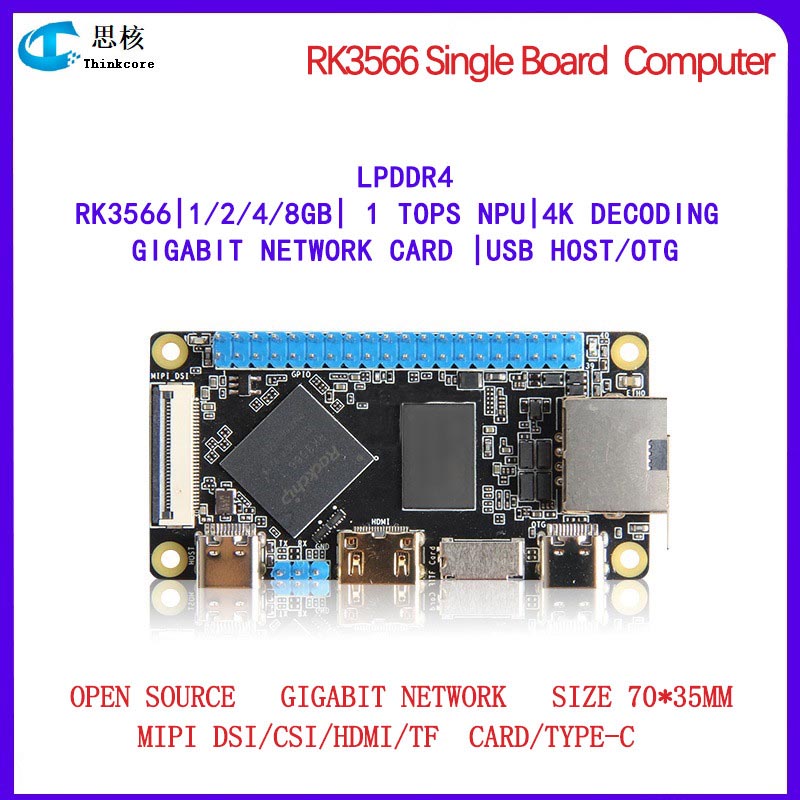

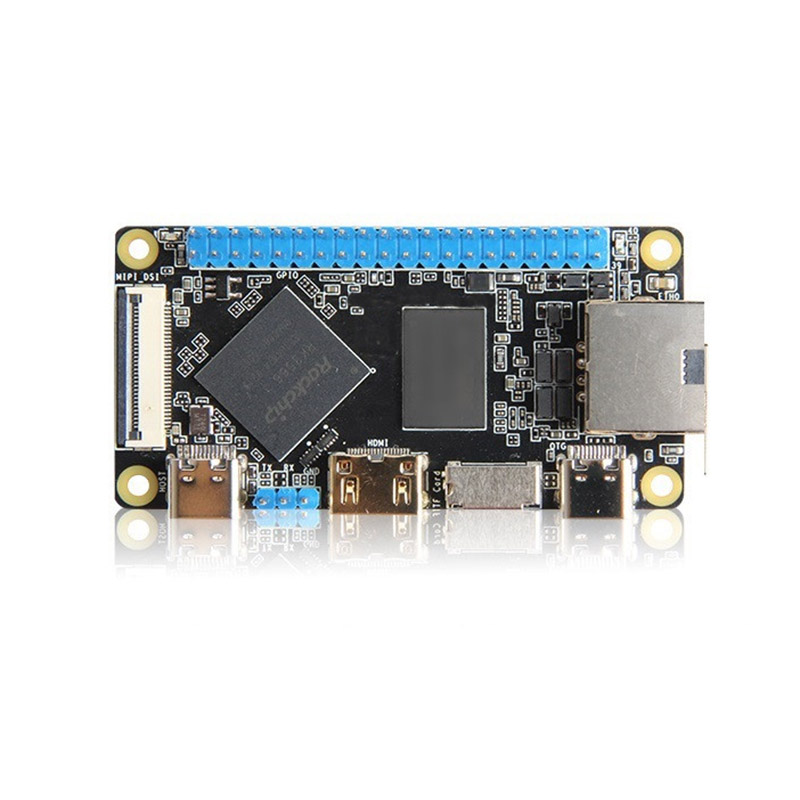

RK3566 SBC Single Board Computer

Find a huge selection of RK3566 SBC Single Board Computer from China at Thinkcore.

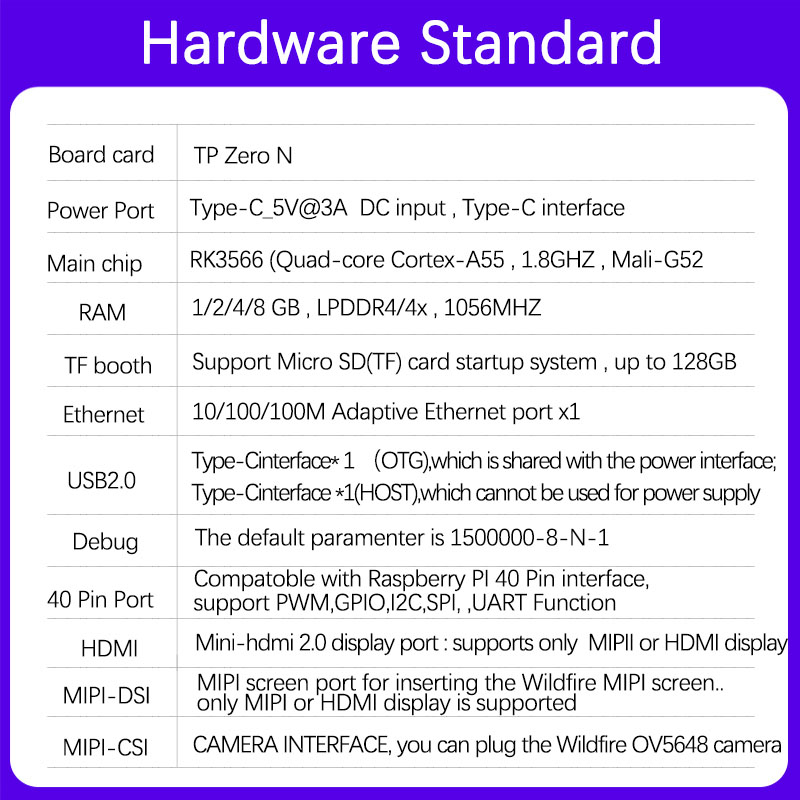

Using Rockchip RK3566 as the main chip, 22nm process technology, 1.8GHz main frequency, integrated quad-core 64-bit Cortex-A55processor, Mali G522EE graphics processor and independent NPU;

With 1TOPS computing power, it can be used for lightweight artificial irtelligence applications;

Support 1 channel 4K60 frame decoding video output and 1080P encoding;

The board provides a variety of memory configuration options, small and exquisite, only 70*35mm,low power consumption, high performance, can easily run Linux or Android system;

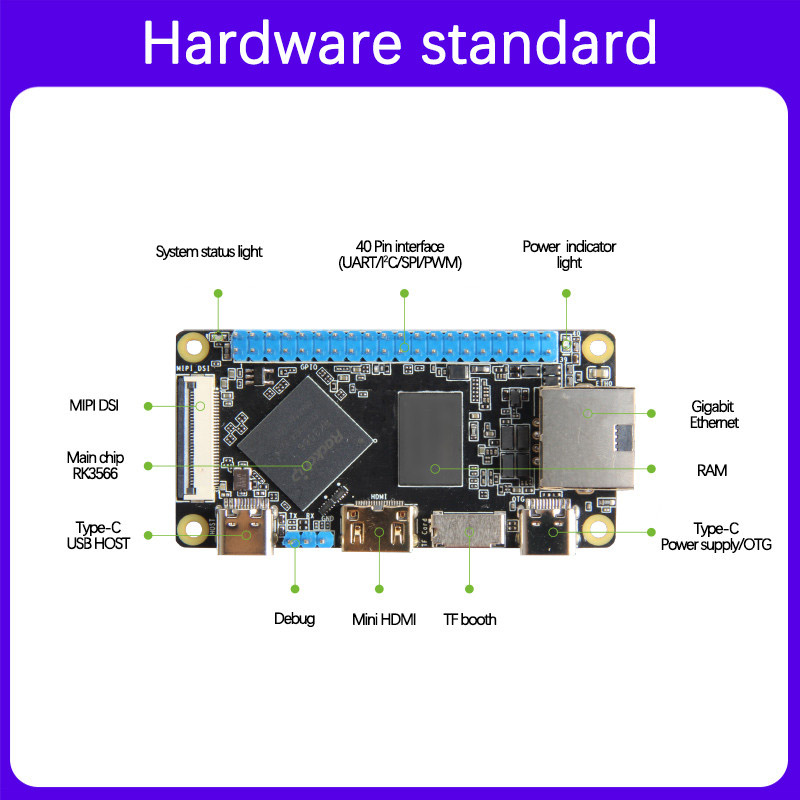

Rich peripheral interfaces, integrated Gigabit Ethernet, USB2.0 Type-C, Mini HDMI,

For peripherals such as MIPI screen interface and MIPI camera interface,40Pin unused pins are reserved, compatible with Raspberry Pi interface;

It can be used as a mobile single-board computer and embedded metherboard,with functions such as office, education, programming development, and embedded development;

Provide Android, Debian, Ubuntu operating system images, which can be applied to a variety of different application environments;

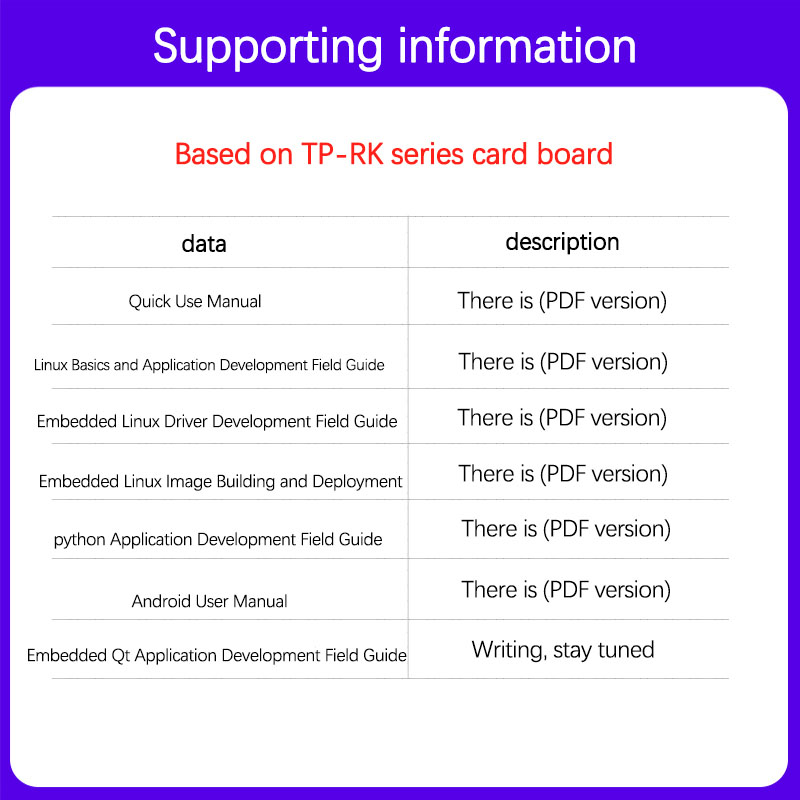

Provide a complete SDK diver development kit, design schematic diagram and other resources, which is convenient for users to use and secondary development.
