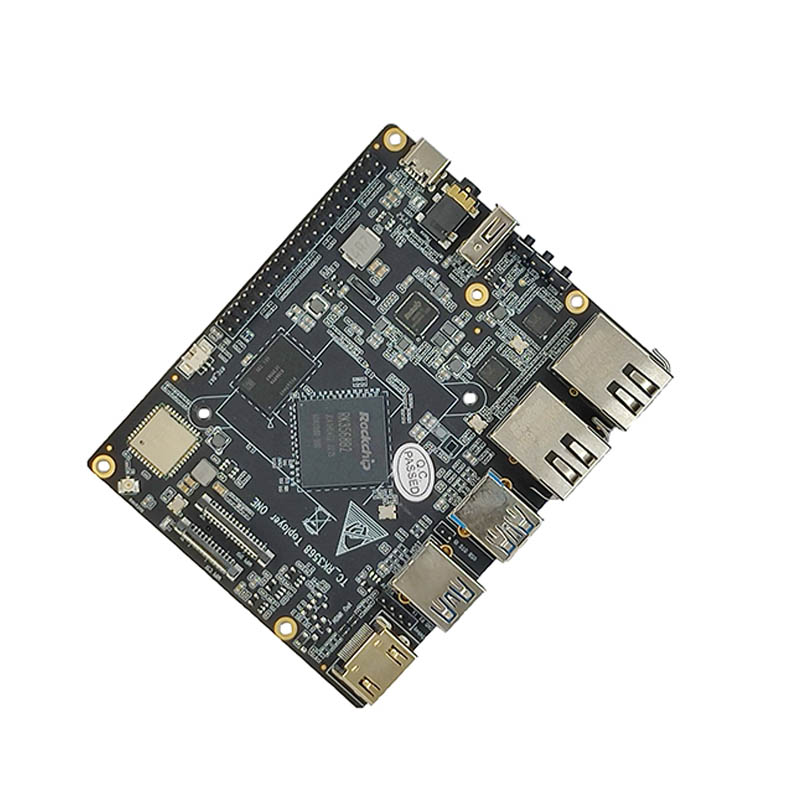

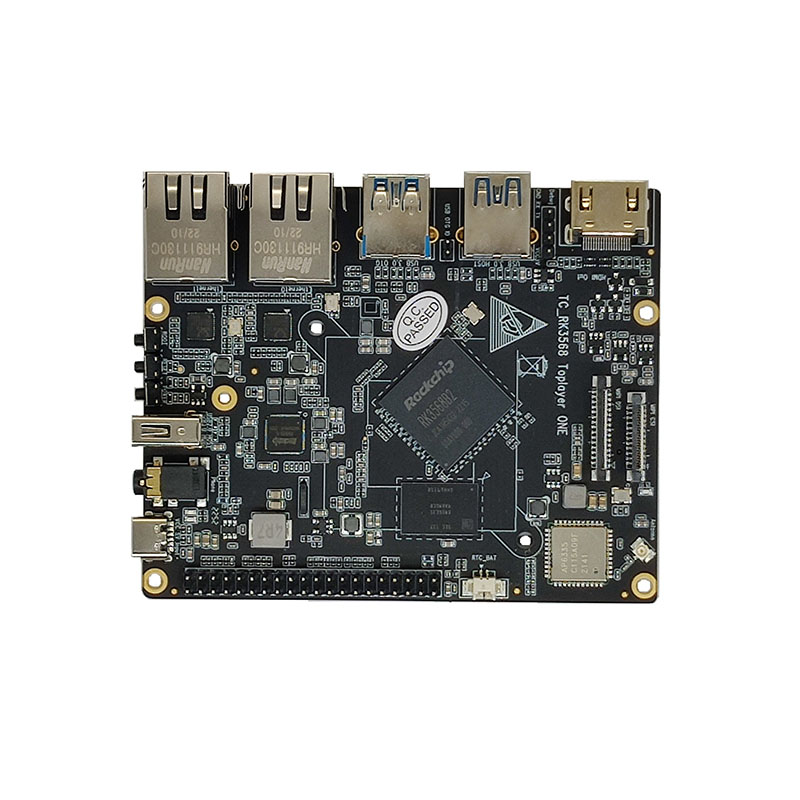

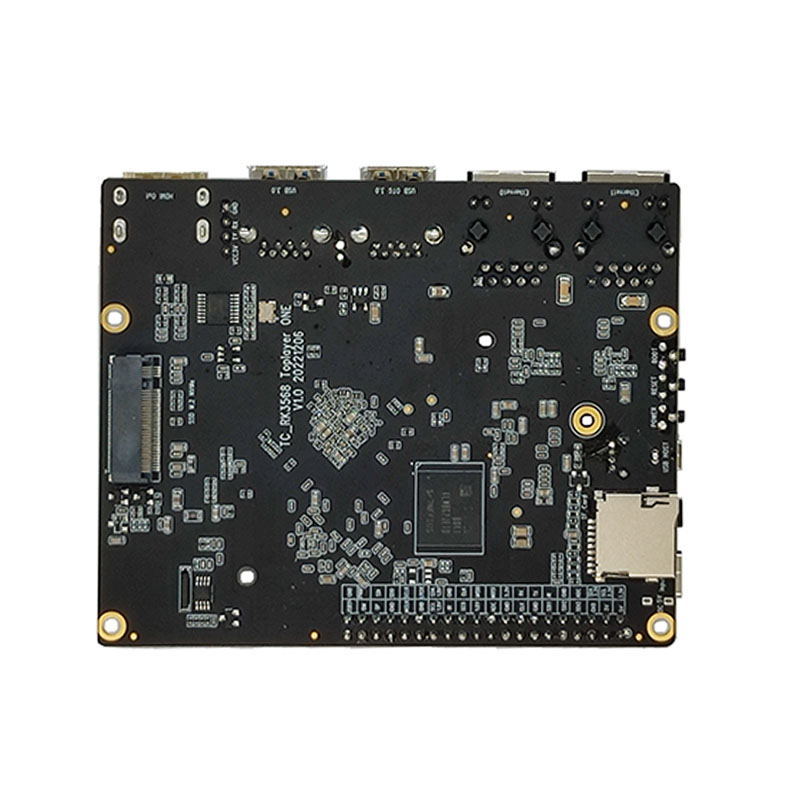

RK3568 Card Computer

Thinkcore is a leading China RK3568 card computer manufacturers, suppliers and exporter. RK3568 Toplayer ONE TC68, equipped with RK3568 as main core chip which with quad-core 64-bit Cortex-A55 processor and Mali G52 2EE graphics processor which can provide efficient and stable performance for back-end device data processing, is a Card computer with greatly improved processing speed and achieves performance improvements. RK3568 has an independent NPU with 1TOPS computing power, which can be used for lightweight artificial intelligence applications.

Send Inquiry

Product Description

Find a huge selection of RK3568 card computer from China at Thinkcore. RK3568 supports dual-screen different display, support maximum simultaneous output of 4K60 frame + 2K60 frame image, support HDR, support 4K60 frame decoding video output and 1080P encoding. So RK3568 is a good choice for NVR local display and video conference local decoding as well as other products with an excellent visual experience.

RK3568 is the first to introduce 22nm process technology, which effectively reduces chip power consumption and chip size, and improves power consumption and performance by 20% compared with 28nm. So though only 102mm*82mm in size，Toplayer ONE TC68 board provides a variety of memory and storage configuration options.

The low power consumption and high performance make RK3568 and Toplayer ONE TC68 run run Linux, Android and other systems easily.

We provide Android, Debian, Ubuntu, Linux Buildroot operating system images, which can be applied to many different application environments. And we also provide the complete SDK source code of each operating system, hardware schematics and bitmaps, manuals, documents, tools and other resources to facilitate customer application and further development.

Features of Toplayer ONE TC68 development platform:

RK3568 work as main control to make the motherboard powerful-perfored, stable and reliable

Rich interface to make a wide range of applications;

Small size (102mm*82mm) can be easily embedded.

Various storage configurations，1/2/4GB，LPDDR4X；8/32/64GB，EMMC；

Support Android，Linux Buildroot，Ubuntu，Debian etc.；Open source code; perfect technical support, speed up the development cycle.

power interface	5V@3A DC input, Type-C interface
Master control SOC	RockChip RK3568（Quad-core 64-bit Cortex-A55 processor, 22nm process, main frequency 2.0GHz）
GPU	ARM Mali-G52 GEE graphics processor Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware
NPU	Integrated high-performance AI accelerator RKNN NPU, 1.0Tops@INT8 Support one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
VPU	Support 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 100fps H.265/H.264 video codec
RAM	1GB/2GB/4GB/8GB LPDDR4x
Storage	8GB/16GB/32GB/64GB/128GB eMMC
Ethernet	2*1000Mbps dual Gigabit Ethernet (RJ45)
Wireless	Support dual-band WiFi, support BT5.0
Display Interfaces	1 * HDMI2.0, support 4K@60 Hz 1 * MIPI DSI，Support 1920*1080@60fps output（Multiplexing with LVDS display interface）
Audio Jack	1 * 3.5mm earphone audio output

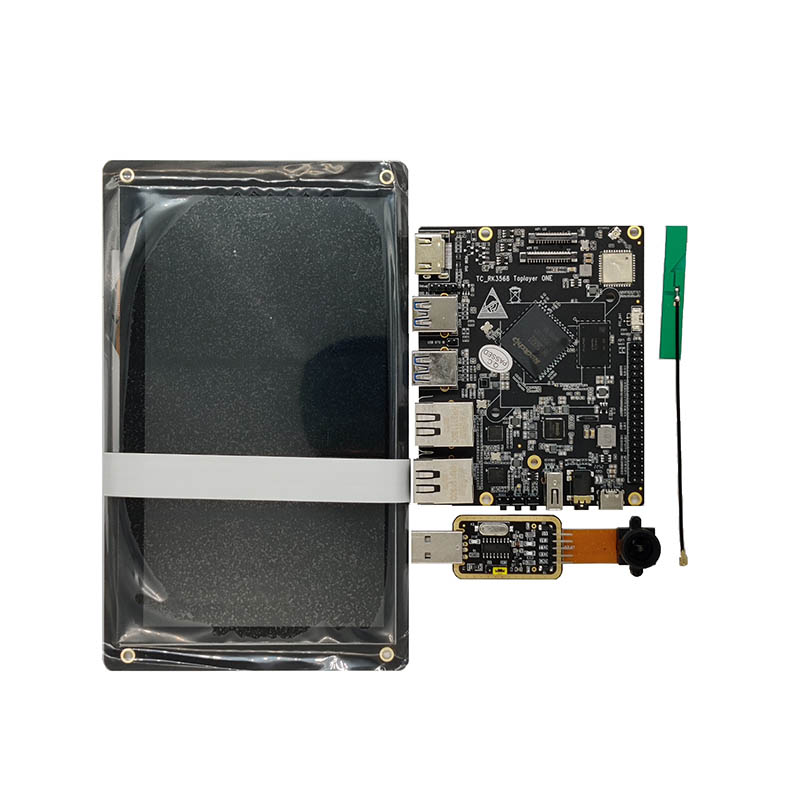

Camera	MIPI-CSI，By default, can be connected to Thinkcore's GC2053 monocular camera
USB interface	1USB2.0 host，1USB3.0 HOST,1*USB3.0 OTG（Host/Device）
Debug serial port	4pin 2.54 interface, default baud rate 115200-8-N-1
TF卡	Support128GB
Button	Power button, Recovery button, reset button
RTC function	RTC battery interface, 2pin 1.25 interface
40Pin interface	2*20 2.54 pitch, support GPIO, I2C, SPI, I2S, ADC, UART, USB, 1.8V, 5V and other functions
Heat dissipation	Heat sink fixing hole
System support	Support Android 11.0，Linux Buildroot，Ubuntu，Debian

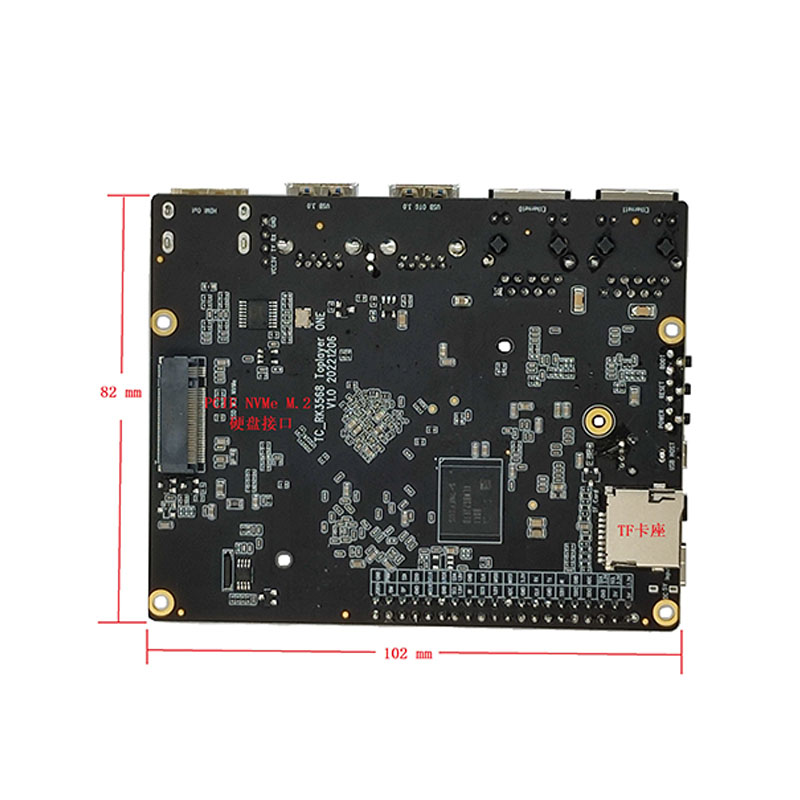

Mainboard Size	102 * 82 mm
Power	5V@3A
Operating temperature	-20℃～65℃
Storage temperature	-30℃～70℃
Storage Humidity	10%～80 %
