RK3568 Core Board

RK3568 Core Board, the quad-core 64-bit Cortex-A55 processor, with 22nm lithography process, has frequency up to 2.0GHz, delivering efficient and stable performance for data processing of back-end equipment. There are a variety of storage options, allowing customers to quickly implement the research and production of products. It supports up to 8GB RAM, with up to 32Bit width and frequency up to 1600MHz. It supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products application. It is integrated with dual-core GPU, high-performance VPU and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow.

Send Inquiry    PDF DownLoad

Product Description

Thinkcore RK3568 Core Board Stamp Hole Development Board Specification


Copyright Statement

Copyrights of this manual belong to Shenzhen Thinkcore Technology Co., Ltd. and all rights are reserved. Any companies or individuals are not allowed to extract part or all of this manual,and violators will be prosecuted under law.


Attention:

The manuals of development platform on sell will be updated from time to time, please download the latest manual from website www.think-core.com or contact our company sales representative, there would be no further notice.


Release Note

Version

Date

Author

Description

Rev.01

2022-08-04

   ThinkcoreMan

Revision



Chapter 1. TC-RK3568 Stamp Hole Development Board Introduction

TC-RK3568 Stamp Hole Development Board Brief

TC-RK3568 Stamp Hole Development Board includes TC-RK3568 Stamp Hole SOM and carrier baord.

TC-RK3568 Stamp Hole system on module is equipped with Rockchip 64-bit processor RK3568 which is configured with dual-core GPU and high-performance NPU.


RK3568, the quad-core 64-bit Cortex-A55 processor, with 22nm lithography process, has frequency up to 2.0GHz, delivering efficient and stable performance for data processing of back-end equipment. There are a variety of storage options, allowing customers to quickly implement the research and production of products. It supports up to 8GB RAM, with up to 32Bit width and frequency up to 1600MHz. It supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products application. It is integrated with dual-core GPU, high-performance VPU and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow.


With MIPI-CSI x2, MIPI-DSI x2, HDMI2.0, EDP video interfaces, it can support up to three screen output with different display. The built-in 8M ISP supports dual cameras and HDR. Video input interface can be connected to an external camera or multiple cameras. It is equipped with dual adaptive RJ45 Gigabit Ethernet ports, through which internal and external network data can be accessed and transmitted, improving network transmission efficiency, and meeting the needs of products with multiple network ports such as NVR and industrial gateway.


The carrier board includes many interfaces, such as 4G LTE Port, USB3.0, USB2.0, PCIE, dual Ethernet, WIFI, Bluetooth, Audio input and output, HDMI out, MIPI DSI display, eDP display, LVDS display, MIPI CSI camera, TF Card slot, RS485, RS232, TTL, CAN, Power out, SATA, etc.

Android 11, Ubuntu 18.04 OS, Debian OS and Linux Buildroot are supported. The stable and reliable operation provides a safe and stable system environment for product research and production.

A complete SDK, development documents, examples, technology documents, tutorials and other resources are provided for the users to make a further customization.


TC-RK3568 Stamp Hole Development Board Features:

Size: 150mm x 110mm.

Rich interfaces, can be directly used in various intelligent products to facilitate the completion of products.

Android 11.0, Ubuntu 18.04 OS, Debian OS and Linux Buildroot are supported.


Application

This board can be widely used in smart NVRs, cloud terminals, IoT gateways, industrial control, edge computing, face recognition gates, NASs, vehicle center consoles, etc.


Characteristic Parameter

Specifications

CPU

RockChip RK3568, Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz

GPU

ARM G52 2EE

Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Embedded high-performance 2D acceleration hardware

NPU

0.8Tops@INT8, integrated high-performance AI accelerator RKNN NPU

Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

VPU

Supports 4K 60fps H.265/H.264/VP9 video decoding

Supports 1080P 100fps H.265/H.264 video encoding

Supports 8M ISP, supports HDR

RAM

2GB/4GB/8GB  LPDDR4

Storage

8GB/16GB/32GB/64GB/128GB eMMC

Supports SATA 3.0 x 1 (Expand with 2.5” SSD/HDD)

Supports TF-Card Slot x1 (Expand with TF card)

System OS

Android11/Linux Buildroot/Ubuntu/Debian


Hardware Features

Display

1 * HDMI2.0, supports 4K@60fps output

1 * MIPI DSI, supports 1920*1080@60fps output

1 * LVDS, supports 1920*1080@60fps output

1 * eDP1.3 , supports 2560x1600@60fps output  or  1 * VGA, supports 1920*1080@60fps output

Ethernet

Supports dual Gigabit Ethernet ports(1000 Mbps)

Wifi

Mini PCIe to connect 4G LTE

Supports WiFi 6 (802.11 AX)

Supports BT5.0

PCIE3.0

Supports PCE3.0 interface

Audio

1 * HDMI audio output

1 * Speaker output

1 * Earphone output

1 * Microphone onboard audio input

Camera

Supports 1-channel MIPI-CSI camera interface

Supports HDR, image remains clear under backlight or strong light conditions



USB

1 * USB3.0 Host, 4* USB 2.0 Host, 1 * USB3.0 OTG

SATA

1 * SATA, 6.0Gb/s

Serial

1 * TTL, 2 * RS232, 1 * RS485

CAN

Support CAN2.0B, Support 1Mbps, 8Mbps

TF Card

1 * TF Card Slot

Others

GPIO And ADC

Size

150mm*110mm


                  Electrical Specification

Input Voltage

12V/3A

Storage Temperature



-30~80℃

Operating Temperature

-20~60℃

Storage Humidity

10%~80%

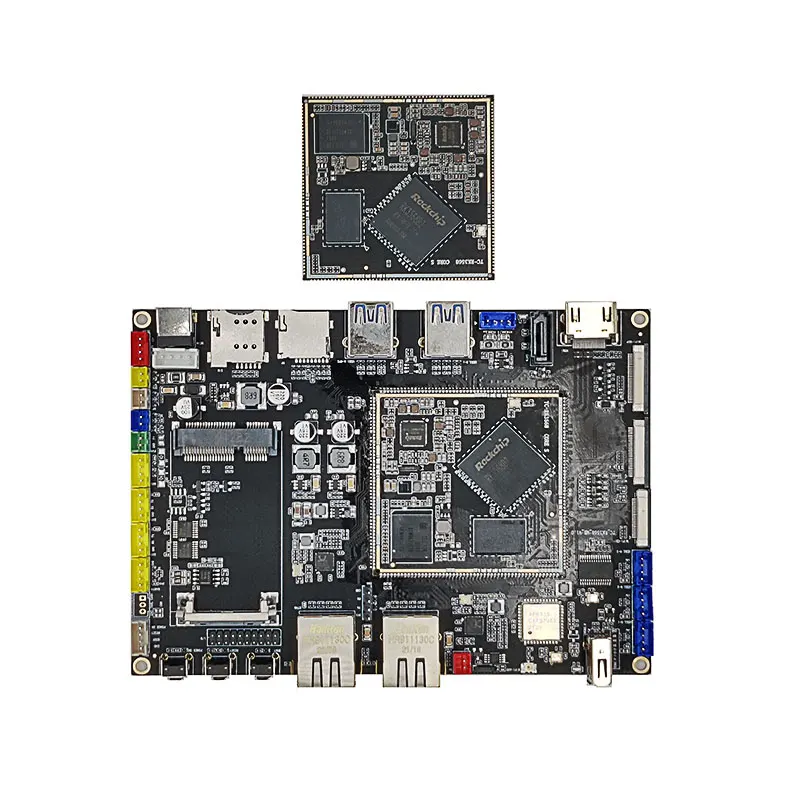

SOM Appearance

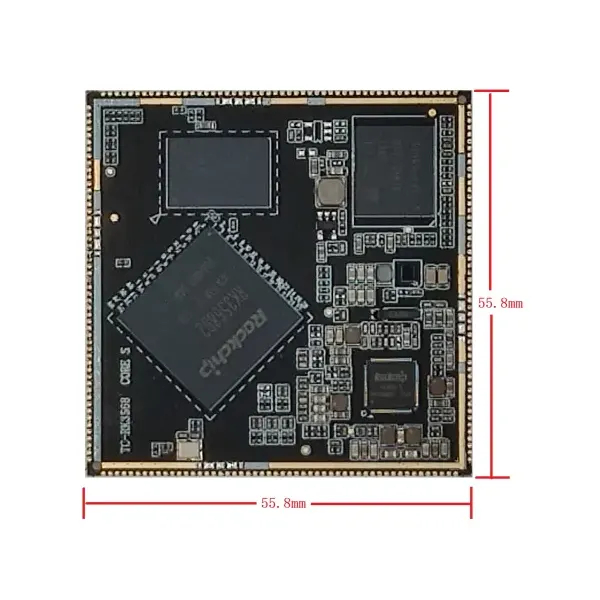

SOM Front

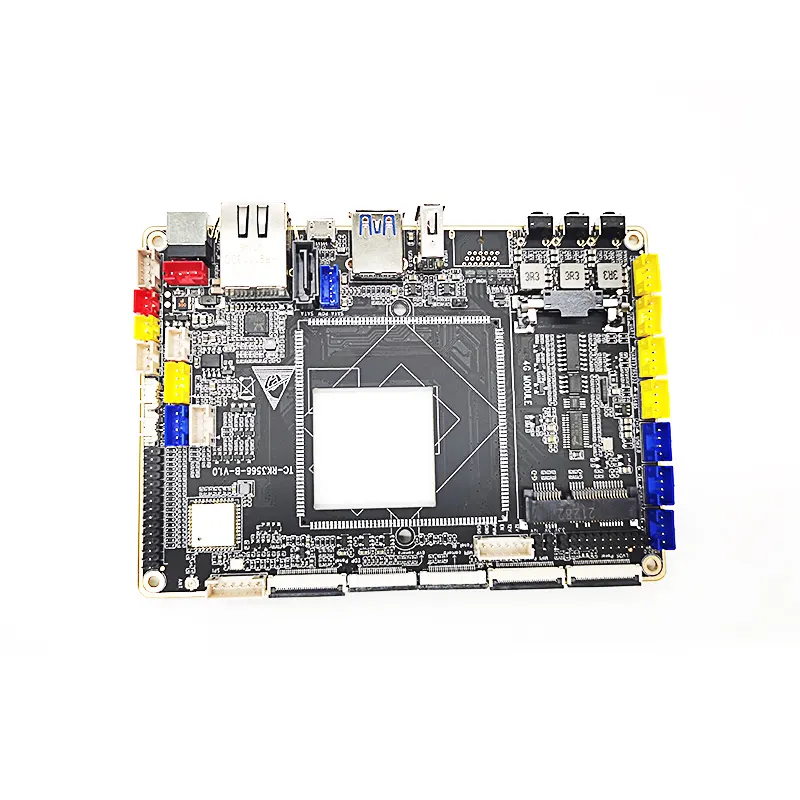

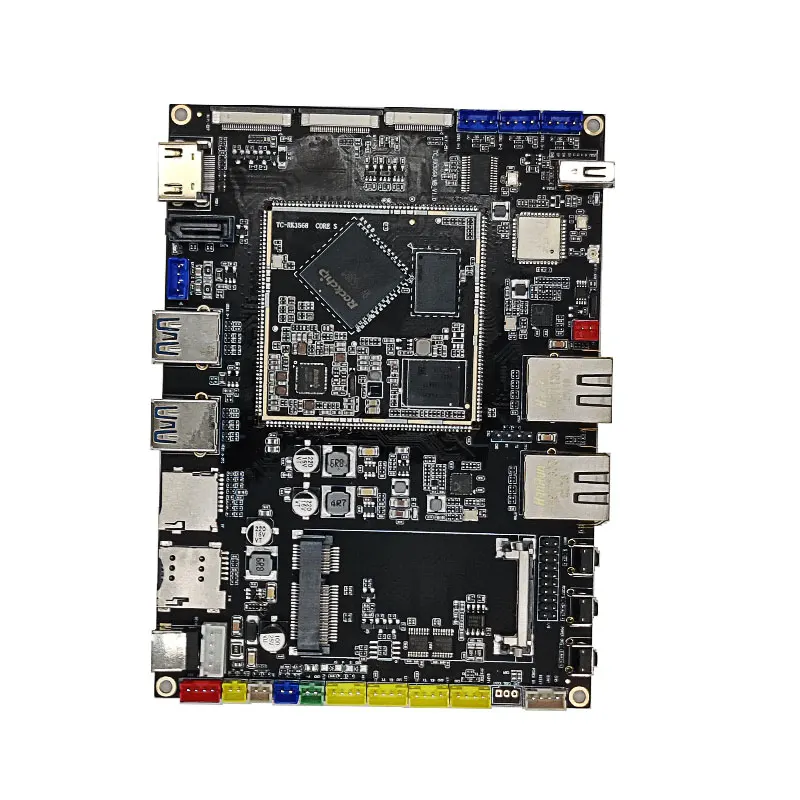

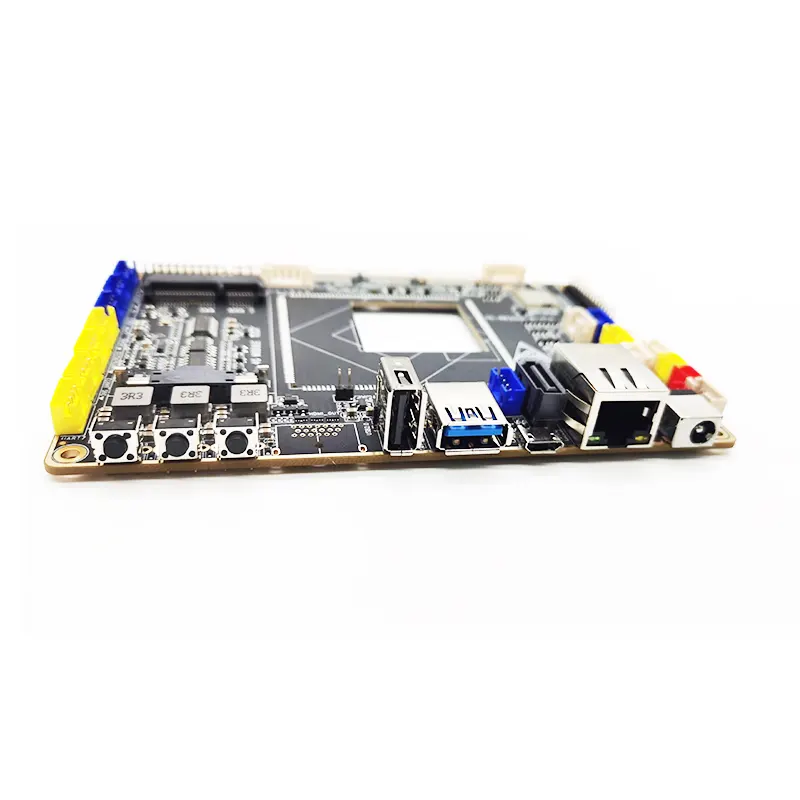

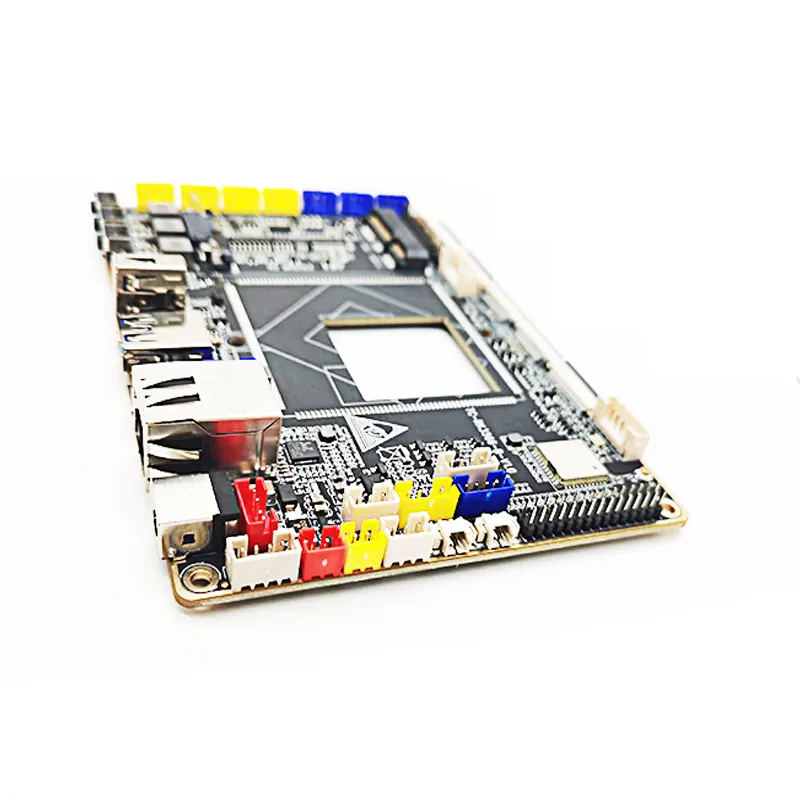

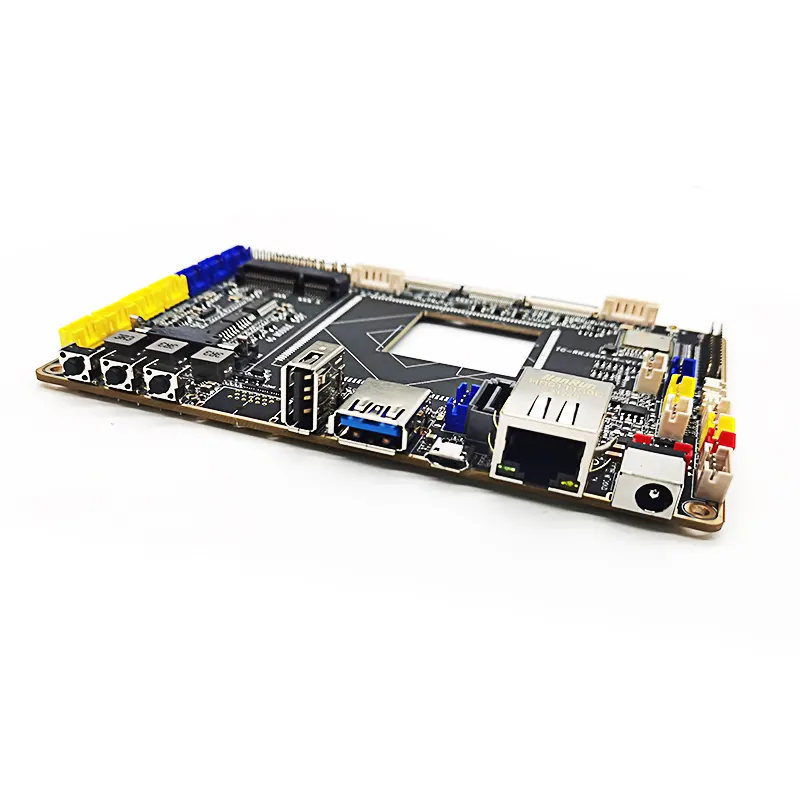

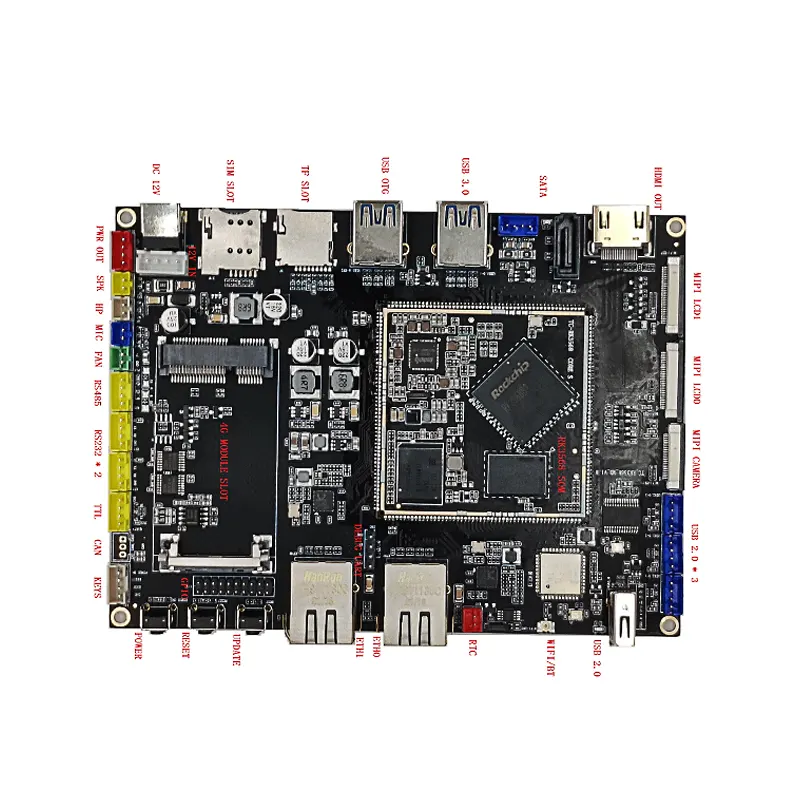

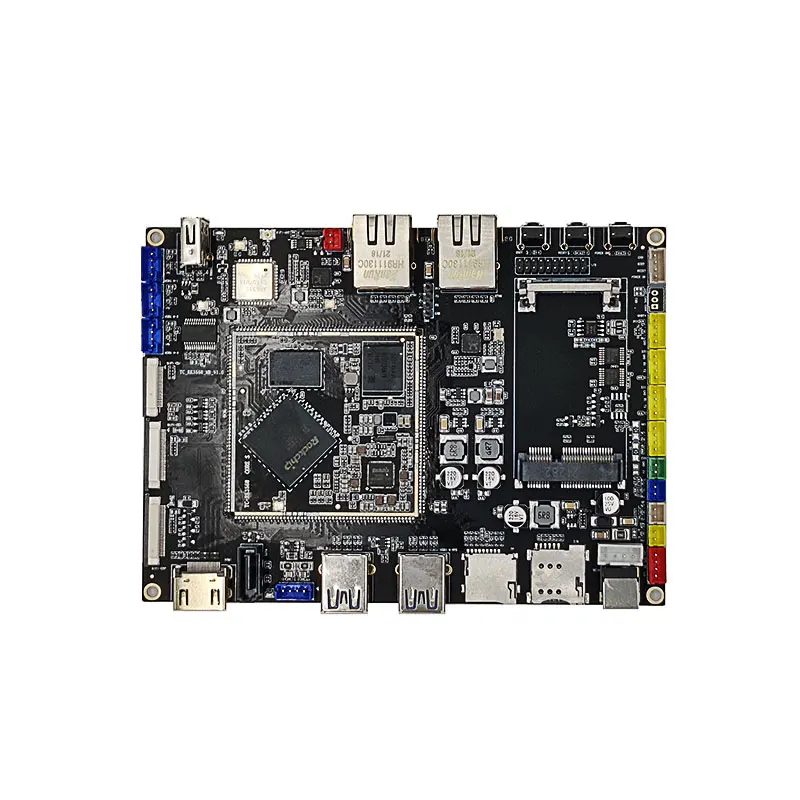

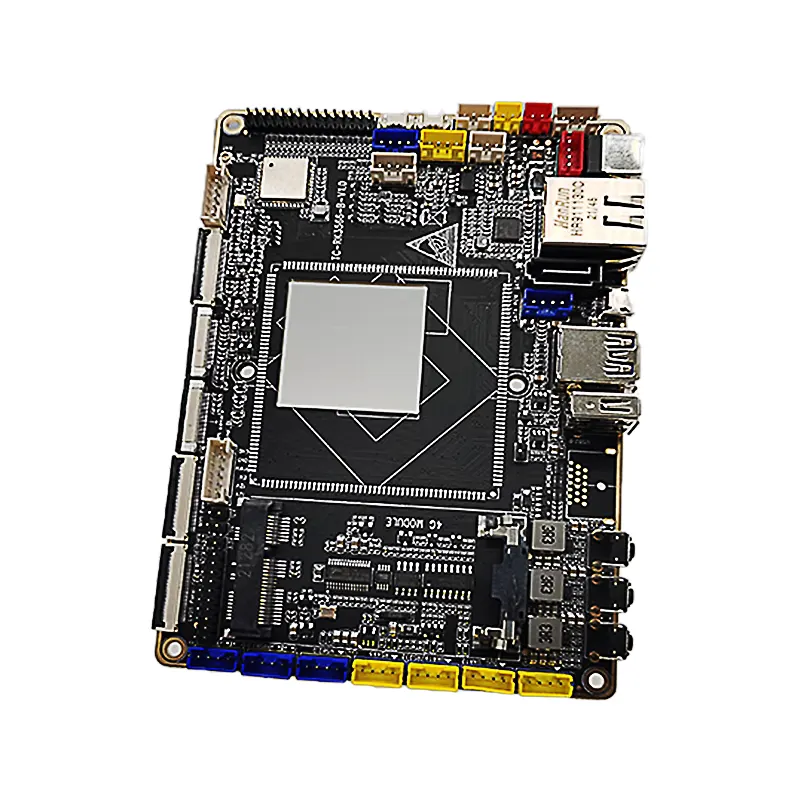

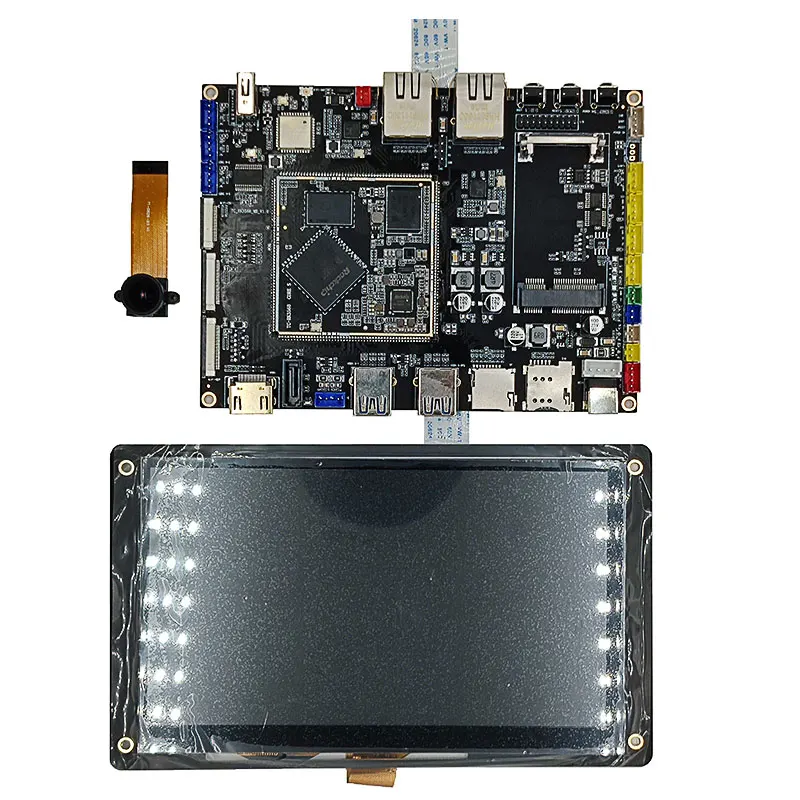

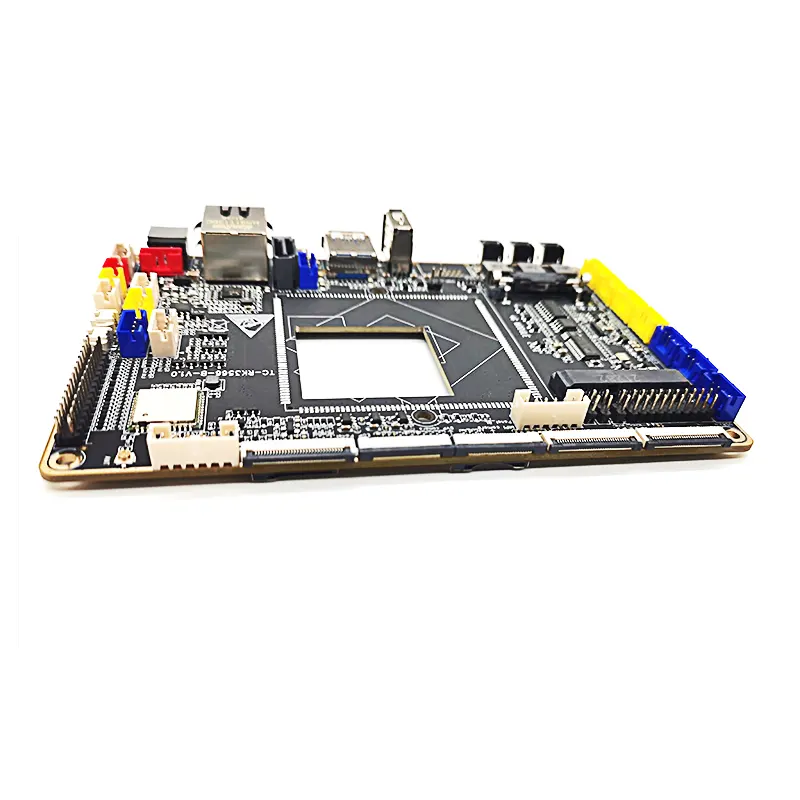

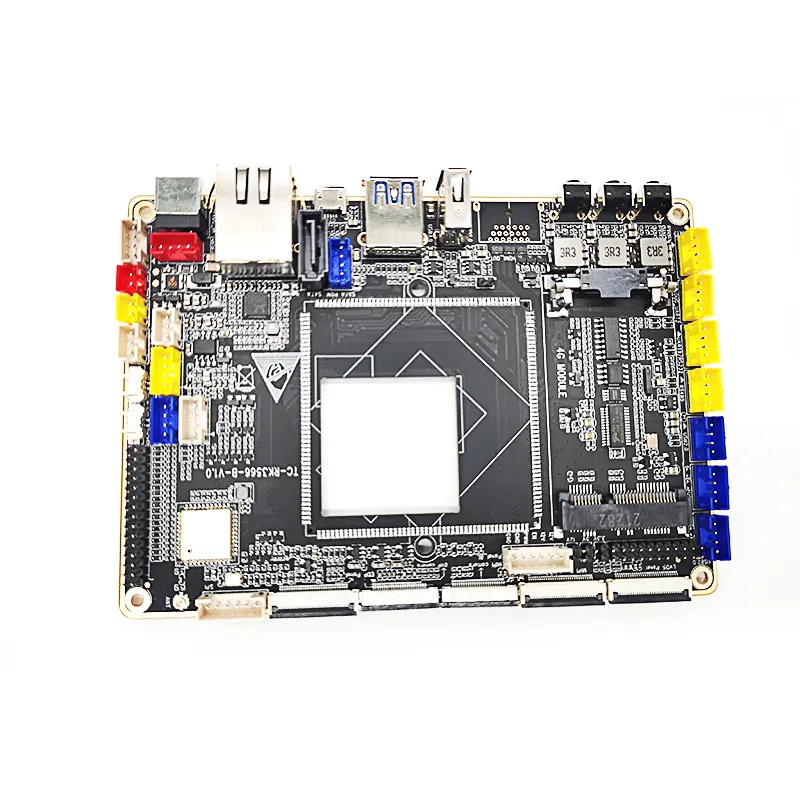

Development Board Appearance


Chapter 2. SOM PIN Definition

SOM PIN Definition

PIN

Core board pin definition

Default function

Default function description

IO Power  Domain

Pad type IO pull

1

VCC3V3_SYS

3.3V System Power Supply

Input Voltage 3.3V



-

2

VCC3V3_SYS

3.3V System Power Supply

Input Voltage 3.3V



-

3

GND

GND

GND



-

4

GND

GND

GND



-

5

SDMMC0_DET_L

SDMMC0_DET/SATA_CP_DET/PCIE30X1_CLKREQn_M0/GPIO0_A4_u

SDMMC0 detect input

3.3V

I/O UP

6

SDMMC0_D3

SDMMC0_D3/ARMJTAG_TMS/UART5_RTSn_M0/GPIO2_A0_u

SDMMC0 data port

3.3V

I/O UP



7

SDMMC0_D2

SDMMC0_D2/ARMJTAG_TCK/UART5_CTSn_M0/GPIO1_D7_u

SDMMC0 data port

3.3V

I/O UP



8

SDMMC0_D1

SDMMC0_D1/UART2_RX_M1/UART6_RX_M1/PWM9_M1/GPIO1_D6_u

SDMMC0 data port

3.3V

I/O UP



9

SDMMC0_D0

SDMMC0_D0/UART2_TX_M1/UART6_TX_M1/PWM8_M1/GPIO1_D5_u

SDMMC0 data port

3.3V

I/O UP



10

SDMMC0_CMD

SDMMC0_CMD/PWM10_M1/UART5_RX_M0/CAN0_TX_M1/GPIO2_A1_u

SDMMC0 command output

3.3V

I/O UP



11

SDMMC0_CLK

SDMMC0_CLK/TEST_CLKOUT/UART5_TX_M0/CAN0_RX_M1/GPIO2_A2_d

SDMMC0 clock output



3.3V

I/O DOWN

12

RESETN

NPOR_U

Reset signal detect

3.3V

-

13

RK809_PWRON

Power On

Power on signal input,external connection power key, active low



-

14

RECOVERY

SARADC_VIN0

AD keyboard input

1.8V

-

15

EXT_EN

EXT_EN

PMIC Power enable  output,active high



-

16

HPR_OUT

HPR_OUT

Headphone right out

3.3V

-

17

HPL_OUT

HPL_OUT

Headphone left out

3.3V

-

18

SPKP_OUT

SPKP_OUT

Speak out+

5V/0.6W

-

19

SPKN_OUT

SPKN_OUT

Speak out-

5V/0.6W

-

20

MIC1_INN

MIC1_INN/MIC_R

MIC1_INN

3.3V

-

21

MIC1_INP

MIC1_INP/MIC_L

MIC1_INP

3.3V

-

22

HP_DET_L_GPIO3_C2

LCDC_VSYNC/VOP_BT1120_D14/SPI1_MISO_M1/UART5_TX_M1/I2S1_SDO3_M2/GPIO3_C2_d

Headphone detect

3.3V

I/O DOWN

23

SPK_CTL_H_GPIO3_C3

LCDC_DEN/VOP_BT1120_D15/SPI1_CLK_M1/UART5_RX_M1/I2S1_SCLK_RX_M2/GPIO3_C3_d



3.3V

I/O DOWN

24

VCC3V3_SD

3.3V Power Supply

Output Voltage 3.3V For SD Card,Rated output current 2A



-

25

VCC_3V3

3.3V Power Supply

Output Voltage 3.3V,Rated output current 2A



-

26

VCC_1V8

1.8V Power Supply

Output voltage 1.8V,rated output current 2.5A



-

27

PDM_SDI1_M0_ADC

I2S1_SDO3_M0/I2S1_SDI1_M0/PDM_SDI1_M0/PCIE20_PERSTn_M2/GPIO1_B2_d

PDM_SDI1_M0_ADC

3.3V

IO DOWN

28

PDM_SDI2_M0_ADC

I2S1_SDO2_M0/I2S1_SDI2_M0/PDM_SDI2_M0/PCIE20_WAKEn_M2/ACODEC_ADC_SYNC/GPIO1_B1_d

PDM_SDI2_M0_ADC

3.3V

IO DOWN

29

PDM_SDI3_M0_ADC

I2S1_SDO1_M0/I2S1_SDI3_M0/PDM_SDI3_M0/PCIE20_CLKREQn_M2/ACODEC_DAC_DATAR/GPIO1_B0_d

PDM_SDI3_M0_ADC

3.3V

IO DOWN

30

PDM_CLK1_M0_ADC

I2S1_SCLK_RX_M0/UART4_RX_M0/PDM_CLK1_M0/SPDIF_TX_M0/GPIO1_A4_d

PDM_CLK1_M0_ADC

3.3V

IO DOWN

31

GMAC0_TXD0

GMAC0_TXD0/UART1_RX_M0/GPIO2_B3_u

GMAC0 transmit data

1.8V

I/O UP

32

GMAC0_TXD1

GMAC0_TXD1/UART1_TX_M0/GPIO2_B4_u

GMAC0 transmit data

1.8V

I/O UP

33

GMAC0_TXD2

SDMMC1_D3/GMAC0_TXD2/UART7_TX_M0/GPIO2_A6_u

GMAC0 transmit data

1.8V

I/O UP

34

GMAC0_TXD3

SDMMC1_CMD/GMAC0_TXD3/UART9_RX_M0/GPIO2_A7_u

GMAC0 transmit data

1.8V

I/O UP

35

GMAC0_TXEN

GMAC0_TXEN/UART1_RTSn_M0/SPI1_CLK_M0/GPIO2_B5_u

GMAC0 transmit enable

1.8V

I/O UP

36

GMAC0_TXCLK

SDMMC1_CLK/GMAC0_TXCLK/UART9_TX_M0/GPIO2_B0_d

GMAC0 transmit clock

1.8V

I/O DOWN

37

GMAC0_RXD0

GMAC0_RXD0/UART1_CTSn_M0/SPI1_MISO_M0/GPIO2_B6_u

GMAC0 recieve data

1.8v

I/O UP

38

GMAC0_RXD1

I2S2_SCLK_RX_M0/GMAC0_RXD1/UART6_RTSn_M0/SPI1_MOSI_M0/GPIO2_B7_d

GMAC0 recieve data

1.8V

I/O DOWN

39

GMAC0_RXD2

SDMMC1_D0/GMAC0_RXD2/UART6_RX_M0/GPIO2_A3_u

GMAC0 recieve data

1.8v

I/O UP

40

GMAC0_RXD3

SDMMC1_D1/GMAC0_RXD3/UART6_TX_M0/GPIO2_A4_u

GMAC0 recieve data

1.8V

I/O UP

41

GMAC0_RXDV_CRS

I2S2_LRCK_RX_M0/GMAC0_RXDV_CRS/UART6_CTSn_M0/SPI1_CS0_M0/GPIO2_C0_d

GMAC0 RX data valid signal

1.8V

I/O DOWN

42

GMAC0_RXCLK

SDMMC1_D2/GMAC0_RXCLK/UART7_RX_M0/GPIO2_A5_u

GMAC0 receive clock

1.8V

I/O UP

43

ETH0_REFCLKO_25M

I2S2_MCLK_M0/ETH0_REFCLKO_25M/UART7_RTSn_M0/SPI2_CLK_M0/GPIO2_C1_d

ETH0_REF CLOCK OUTPUT_25MHz CPU to PHY,Default NC

1.8V

I/O DOWN

44

GMAC0_MCLKINOUT

I2S2_SCLK_TX_M0/GMAC0_MCLKINOUT/UART7_CTSn_M0/SPI2_MISO_M0/GPIO2_C2_d

GMAC0 external clock
input

1.8V

I/O DOWN

45

GMAC0_MDC

I2S2_LRCK_TX_M0/GMAC0_MDC/UART9_RTSn_M0/SPI2_MOSI_M0/GPIO2_C3_d

MAC0 management clock

1.8V

I/O DOWN

46

GMAC0_MDIO

I2S2_SDO_M0/GMAC0_MDIO/UART9_CTSn_M0/SPI2_CS0_M0/GPIO2_C4_d

MAC0 management command and data

1.8V

I/O DOWN

47

GMAC0_RSTN_GPIO3_B7

LCDC_D21/VOP_BT1120_D12/GMAC1_TXD1_M0/I2C3_SDA_M1/PWM11_IR_M0/GPIO3_B6_d



3.3V

IO DOWN

48

GMAC0_INT_PMEB_GPIO3_C0

LCDC_HSYNC/VOP_BT1120_D13/SPI1_MOSI_M1/PCIE20_PERSTn_M1/I2S1_SDO2_M2/GPIO3_C1_d



3.3V

I/O DOWN

49

RTCTC_INT_L_GPIO0_D3

GPIO0_D3_d

RTC_IC_INT,active low

1.8V

I/O DOWN

50

I2C5_SDA_M0

LCDC_D19/VOP_BT1120_D10/GMAC1_RXER_M0/I2C5_SDA_M0/PDM_SDI1_M2/GPIO3_B4_d

I2C serial port 5

3.3V

I/O DOWN

51

I2C5_SCL_M0

LCDC_D18/VOP_BT1120_D9/GMAC1_RXDV_CRS_M0/I2C5_SCL_M0/PDM_SDI0_M2/GPIO3_B3_d

I2C serial port 5

3.3V

I/O DOWN

52

PWM3_IR

PWM3_IR/EDP_HPDIN_M1/PCIE30X1_WAKEn_M0/MCU_JTAG_TMS/GPIO0_C2_d



3.3V

I/O DOWN

53

CAN1_TX_M1

PWM15_IR_M1/SPI3_MOSI_M1/CAN1_TX_M1/PCIE30X2_WAKEn_M2/I2S3_SCLK_M1/GPIO4_C3_d

CAN data transmit

3.3V

I/O DOWN

54

CAN1_RX_M1

PWM14_M1/SPI3_CLK_M1/CAN1_RX_M1/PCIE30X2_CLKREQn_M2/I2S3_MCLK_M1/GPIO4_C2_d

CAN data recieve

3.3V

I/O DOWN

55

UART2_RX_M0_DEBUG

UART2_RX_M0/GPIO0_D0_u

UART serial port  data recieve for debug

3.3V

I/O UP

56

UART2_TX_M0_DEBUG

UART2_TX_M0/GPIO0_D1_u

UART serial port data transmit for debug

3.3V

I/O UP

57

UART3_RX_M1

LCDC_D23/PWM13_M0/GMAC1_MCLKINOUT_M0/UART3_RX_M1/PDM_SDI3_M2/GPIO3_C0_d

UART searial port data recieve

3.3V

I/O DOWN

58

UART3_TX_M1

LCDC_D22/PWM12_M0/GMAC1_TXEN_M0/UART3_TX_M1/PDM_SDI2_M2/GPIO3_B7_d

UART searial port data transmit

3.3V

I/O DOWN

59

UART4_TX_M1

LCDC_D17/VOP_BT1120_D8/GMAC1_RXD1_M0/UART4_TX_M1/PWM9_M0/GPIO3_B2_d

UART searial port data transmit

3.3V

I/O DOWN

60

UART4_RX_M1

LCDC_D16/VOP_BT1120_D7/GMAC1_RXD0_M0/UART4_RX_M1/PWM8_M0/GPIO3_B1_d

UART searial port data recieve

3.3V

I/O DOWN

61

UART9_RX_M1

PWM13_M1/SPI3_CS0_M1/SATA0_ACT_LED/UART9_RX_M1/I2S3_SDI_M1/GPIO4_C6_d

UART searial port data recieve

3.3V

I/O DOWN

62

UART9_TX_M1

PWM12_M1/SPI3_MISO_M1/SATA1_ACT_LED/UART9_TX_M1/I2S3_SDO_M1/GPIO4_C5_d

UART searial port data transmit

3.3V

I/O DOWN

63

UART7_RX_M1

PWM15_IR_M0/SPDIF_TX_M1/GMAC1_MDIO_M0/UART7_RX_M1/I2S1_LRCK_RX_M2/GPIO3_C5_d

UART searial port data recieve

3.3V

I/O DOWN

64

UART7_TX_M1

PWM14_M0/VOP_PWM_M1/GMAC1_MDC_M0/UART7_TX_M1/PDM_CLK1_M2/GPIO3_C4_d

UART searial port data transmit

3.3V

I/O DOWN

65

RS485_DIR_GPIO3_B5

LCDC_D20/VOP_BT1120_D11/GMAC1_TXD0_M0/I2C3_SCL_M1/PWM10_M0/GPIO3_B5_d

RS485 data direction

3.3V

I/O DOWN

66

DVP_PWREN0_H_GPIO0_B0

CLK32K_IN/CLK32K_OUT0/PCIE30X2_BUTTONRSTn/GPIO0_B0_u



3.3V

I/O UP

67

WIFI_PWREN_L_GPIO0_C1

PWM2_M0/NPUAVS/UART0_TX/MCU_JTAG_TDI/GPIO0_C1_d



3.3V

I/O DOWN

68

I2S3_SDI_M0

LCDC_D13/VOP_BT1120_CLK/GMAC1_TXCLK_M0/I2S3_SDI_M0/SDMMC2_CLK_M1/GPIO3_A6_d

I2S3_SDI

3.3V

I/O DOWN

69

I2S3_SDO_M0

LCDC_D12/VOP_BT1120_D4/GMAC1_RXD3_M0/I2S3_SDO_M0/SDMMC2_CMD_M1/GPIO3_A5_d

I2S3_SDO

3.3V

I/O DOWN

70

I2S3_LRCK_M0

LCDC_D11/VOP_BT1120_D3/GMAC1_RXD2_M0/I2S3_LRCK_M0/SDMMC2_D3_M1/GPIO3_A4_d

I2S3_LRCK

3.3V

I/O DOWN

71

I2S3_SCLK_M0

LCDC_D10/VOP_BT1120_D2/GMAC1_TXD3_M0/I2S3_SCLK_M0/SDMMC2_D2_M1/GPIO3_A3_d

I2S3_SCLK

3.3V

I/O DOWN

72

HOST_WAKE_BT_H_GPIO3_A2

LCDC_D9/VOP_BT1120_D1/GMAC1_TXD2_M0/I2S3_MCLK_M0/SDMMC2_D1_M1/GPIO3_A2_d

HOST_WAKE_BT

3.3V

I/O DOWN

73

BT_WAKE_HOST_H_GPIO3_A1

LCDC_D8/VOP_BT1120_D0/SPI1_CS0_M1/PCIE30X1_PERSTn_M1/SDMMC2_D0_M1/GPIO3_A1_d

BT_WAKE_HOST

3.3V

I/O DOWN

74

BT_REG_ON_H_GPIO3_A0

LCDC_CLK/VOP_BT656_CLK_M0/SPI2_CLK_M1/UART8_RX_M1/I2S1_SDO1_M2/GPIO3_A0_d

Bluetooth module power enable

3.3V

I/O DOWN

75

UART8_RX_M0

CLK32K_OUT1/UART8_RX_M0/SPI1_CS1_M0/GPIO2_C6_d

UART searial port data recieve

1,8V

I/O DOWN

76

UART8_TX_M0

I2S2_SDI_M0/GMAC0_RXER/UART8_TX_M0/SPI2_CS1_M0/GPIO2_C5_d

UART searial port data transmit

1.8V

I/O DOWN

77

UART8_CTSN_M0

SDMMC1_DET/I2C4_SCL_M1/UART8_CTSn_M0/CAN2_TX_M1/GPIO2_B2_u

UART8_CTSn_M0

1.8V

I/O DOWN

78

UART8_RTSN_M0

SDMMC1_PWREN/I2C4_SDA_M1/UART8_RTSn_M0/CAN2_RX_M1/GPIO2_B1_d

UART8_RTSn_M0

1.8V

I/O DOWN

79

WIFI_REG_ON_H_GPIO3_D5

CIF_D7/EBC_SDDO7/SDMMC2_PWREN_M0/I2S1_SDI3_M1/VOP_BT656_D7_M1/GPIO3_D5_d

WIFI_REG enable

1.8V

I/O DOWN

80

WIFI_WAKE_HOST_H_GPIO3_D4

CIF_D6/EBC_SDDO6/SDMMC2_DET_M0/I2S1_SDI2_M1/VOP_BT656_D6_M1/GPIO3_D4_d

WIFI wake up host

1.8V

I/O DOWN

81

SDMMC2_CLK_M0

CIF_D5/EBC_SDDO5/SDMMC2_CLK_M0/I2S1_SDI1_M1/VOP_BT656_D5_M1/GPIO3_D3_d

SDMMC2 clock

1.8V

I/O DOWN

82

SDMMC2_CMD_M0

CIF_D4/EBC_SDDO4/SDMMC2_CMD_M0/I2S1_SDI0_M1/VOP_BT656_D4_M1/GPIO3_D2_d

SDMMC2 command

1.8V

I/O DOWN

83

SDMMC2_D3_M0

CIF_D3/EBC_SDDO3/SDMMC2_D3_M0/I2S1_SDO0_M1/VOP_BT656_D3_M1/GPIO3_D1_d

SDMMC2 data

1.8V

I/O DOWN

84

SDMMC2_D2_M0

CIF_D2/EBC_SDDO2/SDMMC2_D2_M0/I2S1_LRCK_TX_M1/VOP_BT656_D2_M1/GPIO3_D0_d

SDMMC2 data

1.8V

I/O DOWN

85

SDMMC2_D1_M0

CIF_D1/EBC_SDDO1/SDMMC2_D1_M0/I2S1_SCLK_TX_M1/VOP_BT656_D1_M1/GPIO3_C7_d

SDMMC2 data

1.8V

I/O DOWN

86

SDMMC2_D0_M0

CIF_D0/EBC_SDDO0/SDMMC2_D0_M0/I2S1_MCLK_M1/VOP_BT656_D0_M1/GPIO3_C6_d

SDMMC2 data

1.8V

I/O DOWN

87

GMAC1_INT/PMEB_GPIO3_A7

LCDC_D14/VOP_BT1120_D5/GMAC1_RXCLK_M0/SDMMC2_DET_M1/GPIO3_A7_d



3.3V

I/O DOWN

88

GMAC1_RSTN_GPIO3_B0

LCDC_D15/VOP_BT1120_D6/ETH1_REFCLKO_25M_M0/SDMMC2_PWREN_M1/GPIO3_B0_d



3.3V

I/O DOWN

89

GMAC1_MDIO_M1

IF_VSYNC/EBC_SDOE/GMAC1_MDIO_M1/I2S2_SCLK_TX_M1/GPIO4_B7_d

GMAC1 management command and data

1.8V

I/O DOWN

90

GMAC1_MDC_M1

CIF_HREF/EBC_SDLE/GMAC1_MDC_M1/UART1_RTSn_M1/I2S2_MCLK_M1/GPIO4_B6_d

GMAC1 management clock

1.8V

I/O DOWN

91

GMAC1_MCLKINOUT_M1

CIF_CLKIN/EBC_SDCLK/GMAC1_MCLKINOUT_M1/UART1_CTSn_M1/I2S2_SCLK_RX_M1/GPIO4_C1_d

GMAC1 external clock
input

1.8V

I/O DOWN

92

ETH1_REFCLKO_25M_M1

I2C4_SCL_M0/EBC_GDOE/ETH1_REFCLKO_25M_M1/SPI3_CLK_M0/I2S2_SDO_M1/GPIO4_B3_d

ETH1 Clock output

1.8V

I/O DOWN

93

GMAC1_RXCLK_M1

CIF_D13/EBC_SDDO13/GMAC1_RXCLK_M1/UART7_RX_M2/PDM_SDI3_M1/GPIO4_A3_d

GMAC1 receive clock

1.8V

I/O DOWN

94

GMAC1_RXDV_CRS_M1

ISP_PRELIGHT_TRIG/EBC_SDCE3/GMAC1_RXDV_CRS_M1/I2S1_SDO2_M1/GPIO4_B1_d

GMAC1 RX data valid signal

1.8V

I/O DOWN

95

GMAC1_RXD3_M1

CIF_D12/EBC_SDDO12/GMAC1_RXD3_M1/UART7_TX_M2/PDM_SDI2_M1/GPIO4_A2_d

GMAC1 recieve data

1.8V

I/O DOWN

96

GMAC1_RXD2_M1

CIF_D11/EBC_SDDO11/GMAC1_RXD2_M1/PDM_SDI1_M1/GPIO4_A1_d

GMAC1 recieve data

1.8V

I/O DOWN

97

GMAC1_RXD1_M1

CAM_CLKOUT1/EBC_SDCE2/GMAC1_RXD1_M1/SPI3_MISO_M0/I2S1_SDO1_M1/GPIO4_B0_d

GMAC1 recieve data

1.8V

I/O DOWN

98

GMAC1_RXD0_M1

CAM_CLKOUT0/EBC_SDCE1/GMAC1_RXD0_M1/SPI3_CS1_M0/I2S1_LRCK_RX_M1/GPIO4_A7_d

GMAC1 recieve data

1.8V

I/O DOWN

99

GMAC1_TXCLK_M1

CIF_D10/EBC_SDDO10/GMAC1_TXCLK_M1/PDM_CLK1_M1/GPIO4_A0_d

GMAC1 transmit clock

1.8V

I/O DOWN

100

GMAC1_TXEN_M1

ISP_FLASHTRIGOUT/EBC_SDCE0/GMAC1_TXEN_M1/SPI3_CS0_M0/I2S1_SCLK_RX_M1/GPIO4_A6_d

GMAC1 transmit enable

1.8V

I/O DOWN

101

GMAC1_TXD3_M1

CIF_D9/EBC_SDDO9/GMAC1_TXD3_M1/UART1_RX_M1/PDM_SDI0_M1/GPIO3_D7_d

GMAC1 transmit data

1.8V

I/O DOWN

102

GMAC1_TXD2_M1

CIF_D8/EBC_SDDO8/GMAC1_TXD2_M1/UART1_TX_M1/PDM_CLK0_M1/GPIO3_D6_d

GMAC1 transmit data

1.8V

I/O DOWN

103

GMAC1_TXD1_M1

CIF_D15/EBC_SDDO15/GMAC1_TXD1_M1/UART9_RX_M2/I2S2_LRCK_RX_M1/GPIO4_A5_d

GMAC1 transmit data

1.8V

I/O DOWN

104

GMAC1_TXD0_M1

CIF_D14/EBC_SDDO14/GMAC1_TXD0_M1/UART9_TX_M2/I2S2_LRCK_TX_M1/GPIO4_A4_d

GMAC1 transmit data

1.8V

I/O DOWN

105

TP_RST_L_GPIO0_B6

I2C2_SDA_M0/SPI0_MOSI_M0/PCIE20_PERSTn_M0/PWM2_M1/GPIO0_B6_u

Touchpanel reset

3.3V

I/O UP



106

TP_INT_L_GPIO0_B5

I2C2_SCL_M0/SPI0_CLK_M0/PCIE20_WAKEn_M0/PWM1_M1/GPIO0_B5_u

Touchpanel interrupt data input

3.3V

I/O UP

107

I2C1_SDA_TP

I2C1_SDA/CAN0_RX_M0/PCIE20_BUTTONRSTn/MCU_JTAG_TCK/GPIO0_B4_u

I2C serial port 1

3.3V

I/O UP

108

I2C1_SCL_TP

I2C1_SCL/CAN0_TX_M0/PCIE30X1_BUTTONRSTn/MCU_JTAG_TDO/GPIO0_B3_u

I2C serial port 1

3.3V

I/O UP

109

I2C3_SCL_M0

I2C3_SCL_M0/UART3_TX_M0/CAN1_TX_M0/AUDIOPWM_LOUT_N/ACODEC_ADC_CLK/GPIO1_A1_u

I2C serial port 3

3.3V

I/O UP

110

I2C3_SDA_M0

I2C3_SDA_M0/UART3_RX_M0/CAN1_RX_M0/AUDIOPWM_LOUT_P/ACODEC_ADC_DATA/GPIO1_A0_u

I2C serial port 3

3.3V

I/O UP

111

I2C2_SCL_M1

I2C2_SCL_M1/EBC_SDSHR/CAN2_TX_M0/I2S1_SDO3_M1/GPIO4_B5_d

I2C serial port 2

1.8V

I/O DOWN

112

I2C2_SDA_M1

I2C2_SDA_M1/EBC_GDSP/CAN2_RX_M0/ISP_FLASH_TRIGIN/VOP_BT656_CLK_M1/GPIO4_B4_d

I2C serial port 2

1.8V

I/O DOWN

113

MIPI_CAM1_PDN_L_GPIO3_D3

LCDC_D1/VOP_BT656_D1_M0/SPI0_MOSI_M1/PCIE20_WAKEn_M1/I2S1_SCLK_TX_M2/GPIO2_D1_d

Camera1 power down

3.3V

I/O DOWN

114

MIPI_CAM1_RST_L_GPIO3_D2

LCDC_D0/VOP_BT656_D0_M0/SPI0_MISO_M1/PCIE20_CLKREQn_M1/I2S1_MCLK_M2/GPIO2_D0_d

Camera1 reset

3.3V

I/O DOWN

115

MIPI_CAM0_RST_L_GPIO3_D4

LCDC_D2/VOP_BT656_D2_M0/SPI0_CS0_M1/PCIE30X1_CLKREQn_M1/I2S1_LRCK_TX_M2/GPIO2_D2_d

Camera0 reset

3.3V

I/O DOWN

116

MIPI_CAM0_PDN_L_GPIO3_D5

LCDC_D3/VOP_BT656_D3_M0/SPI0_CLK_M1/PCIE30X1_WAKEn_M1/I2S1_SDI0_M2/GPIO2_D3_d

Camera0 power down

3.3V

I/O DOWN

117

USB2_HOST2_DM

USB2_HOST2_DM

USB2_HOST2_DM

3.3V

-

118

USB2_HOST2_DP

USB2_HOST2_DP

USB2_HOST2_DP

3.3V

-

119

USB2_HOST3_DM

USB2_HOST3_DM

USB2_HOST3_DM

3.3V

-

120

USB2_HOST3_DP

USB2_HOST3_DP

USB2_HOST3_DP

3.3V

-

121

REFCLK_OUT

REFCLK_OUT/GPIO0_A0_d

Clock output for camera

3.3V

I/O DOWN

122

CIF_CLKOUT

CIF_CLKOUT/EBC_GDCLK/PWM11_IR_M1/GPIO4_C0_d

CIF clock out

1.8V

I/O DOWN

123

MIPI_CSI_RX_D3P

MIPI_CSI_RX_D3P

MIPI_CSI_RX_D3P

1.8V

-

124

MIPI_CSI_RX_D3N

MIPI_CSI_RX_D3N

MIPI_CSI_RX_D3N

1.8V

-

125

MIPI_CSI_RX_D2P

MIPI_CSI_RX_D2P

MIPI_CSI_RX_D2P

1.8V

-

126

MIPI_CSI_RX_D2N

MIPI_CSI_RX_D2N

MIPI_CSI_RX_D2N

1.8V

-

127

MIPI_CSI_RX_CLK1P

MIPI_CSI_RX_CLK1P

MIPI_CSI_RX_CLK1P

1.8V

-

128

MIPI_CSI_RX_CLK1N

MIPI_CSI_RX_CLK1N

MIPI_CSI_RX_CLK1N

1.8V

-

129

MIPI_CSI_RX_CLK0P

MIPI_CSI_RX_CLK0P

MIPI_CSI_RX_CLK0P

1.8V

-

130

MIPI_CSI_RX_CLK0N

MIPI_CSI_RX_CLK0N

MIPI_CSI_RX_CLK0N

1.8V

-

131

MIPI_CSI_RX_D1P

MIPI_CSI_RX_D1P

MIPI_CSI_RX_D1P

1.8V

-

132

MIPI_CSI_RX_D1N

MIPI_CSI_RX_D1N

MIPI_CSI_RX_D1N

1.8V

-

133

MIPI_CSI_RX_D0P

MIPI_CSI_RX_D0P

MIPI_CSI_RX_D0P

1.8V

-

134

MIPI_CSI_RX_D0N

MIPI_CSI_RX_D0N

MIPI_CSI_RX_D0N

1.8V

-

135

LCD1_PWREN_H_GPIO0_C5

PWM6/SPI0_MISO_M0/PCIE30X2_WAKEn_M0/GPIO0_C5_d

LCD power enable

3.3V

I/O DOWN

136

LCD1_BL_PWM5

PWM5/SPI0_CS1_M0/UART0_RTSn/GPIO0_C4_d

LCD backlight PWM

3.3V

I/O DOWN

137

LCD1_BL_PWM4

PWM4/VOP_PWM_M0/PCIE30X1_PERSTn_M0/MCU_JTAG_TRSTn/GPIO0_C3_d

LCD backlight PWM

3.3V

I/O DOWN

138

LCD0_PWREN_H_GPIO0_C7

HDMITX_CEC_M1/PWM0_M1/UART0_CTSn/GPIO0_C7_d

LCD power enable

3.3V

I/O DOWN

139

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

1.8V

-

140

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

1.8V

-

141

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

1.8V

-

142

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

1.8V

-

143

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

1.8V

-

144

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

1.8V

-

145

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

1.8V

-

146

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

1.8V

-

147

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

1.8V

-

148

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

1.8V

-

149

HDMI_TXCLKN_PORT

HDMI_TX_CLKN

HDMI_TX2CLKN_PORT,and series resistance 2.2R

1.8V

-

150

HDMI_TXCLKP_PORT

HDMI_TX_CLKP

HDMI_TXCLKP_PORT,and series resistance 2.2R

1.8V

-

151

HDMI_TX0N_PORT

HDMI_TX_D0N

HDMI_TX0N_PORT,and series resistance 2.2R

1.8V

-

152

HDMI_TX0P_PORT

HDMI_TX_D0P

HDMI_TX0P_PORT,and series resistance 2.2R

1.8V

-

153

HDMI_TX1N_PORT

HDMI_TX_D1N

HDMI_TX1N_PORT,and series resistance 2.2R

1.8V

-

154

HDMI_TX1P_PORT

HDMI_TX_D1P

HDMI_TX1P_PORT,and series resistance 2.2R

1.8V

-

155

HDMI_TX2N_PORT

HDMI_TX_D2N

HDMI_TX2N_PORT,and series resistance 2.2R

1.8V

-

156

HDMI_TX2P_PORT

HDMI_TX_D2P

HDMI_TX2P_PORT,and series resistance 2.2R

1.8V

-

157

HDMITX_SCL

HDMITX_SCL/I2C5_SCL_M1/GPIO4_C7_u

I2C serial port for HDMI

3.3V

I/O UP

158

HDMITC_SDA

HDMITX_SDA/I2C5_SDA_M1/GPIO4_D0_u

I2C serial port for HDMI

3.3V

I/O UP

159

HDMITX_CEC_M0

HDMITX_CEC_M0/SPI3_CS1_M1/GPIO4_D1_u

HDMITX_CEC

3.3V

I/O UP

160

HDMI_TX_HPDIN

HDMI_TX_HPDIN

HDMI_TX hot plug

1.8V

-

161

PCIE30X2_CLKREQN_M1

LCDC_D4/VOP_BT656_D4_M0/SPI2_CS1_M1/PCIE30X2_CLKREQn_M1/I2S1_SDI1_M2/GPIO2_D4_d

PCIE30X2_CLKREQn

3.3

I/O DOWN

162

PCIE30X2_WAKEN_M1

LCDC_D5/VOP_BT656_D5_M0/SPI2_CS0_M1/PCIE30X2_WAKEn_M1/I2S1_SDI2_M2/GPIO2_D5_d

PCIE30X2_WAKEn

3.3V

I/O DOWN

163

PCIE30X2_PERSTN_M1

LCDC_D6/VOP_BT656_D6_M0/SPI2_MOSI_M1/PCIE30X2_PERSTn_M1/I2S1_SDI3_M2/GPIO2_D6_d

PCIE30X2 reset

3.3V

I/O DOWN

164

PCIE30X2_PRSNT_L_GPIO2_D7

LCDC_D7/VOP_BT656_D7_M0/SPI2_MISO_M1/UART8_TX_M1/I2S1_SDO0_M2/GPIO2_D7_d

PCIE30X2 wake host

3.3V

I/O DOWN

165

PCIE_PWREN_H_GPIO0_D4

GPIO0_D4_d

PCIE power enable

1.8V

I/O DOWN

166

PCIE30_RX1N

PCIE30_RX1N

PCIE30_RX1N

1.8V

-

167

PCIE30_RX1P

PCIE30_RX1P

PCIE30_RX1P

1.8V

-

168

PCIE30_RX0N

PCIE30_RX0N

PCIE30_RX0N

1.8V

-

169

PCIE30_RX0P

PCIE30_RX0P

PCIE30_RX0P

1.8V

-

170

PCIE30_TX1N

PCIE30_TX1N

PCIE30_TX1N

1.8V

-

171

PCIE30_TX1P

PCIE30_TX1P

PCIE30_TX1P

1.8V

-

172

PCIE30_TX0N

PCIE30_TX0N

PCIE30_TX0N

1.8V

-

173

PCIE30_TX0P

PCIE30_TX0P

PCIE30_TX0P

1.8V

-

174

PCIE30_REFCLKN_IN

PCIE30_REFCLKN_IN

PCIE30_REFCLKN_IN

1.8V

-

175

PCIE30_REFCLKP_IN

PCIE30_REFCLKP_IN

PCIE30_REFCLKP_IN

1.8V

-

176

PCIE20_REFCLKN

PCIE20_REFCLKN

PCIE20_REFCLKN

1.8V

-

177

PCIE20_REFCLKP

PCIE20_REFCLKP

PCIE20_REFCLKP

1.8V

-

178

SATA2_RXN

PCIE20_RXN/SATA2_RXN/QSGMII_RXN_M1

SATA2_RXN

1.8V

-

179

SATA2_RXP

PCIE20_RXP/SATA2_RXP/QSGMII_RXP_M1

SATA2_RXP

1.8V

-

180

SATA2_TXN

PCIE20_TXN/SATA2_TXN/QSGMII_TXN_M1

SATA2_TXN

1.8V

-

181

SATA2_TXP

PCIE20_TXP/SATA2_TXP/QSGMII_TXP_M1

SATA2_TXP

1.8V

-

182

SATA2_ACT_LED

EDP_HPDIN_M0/SPDIF_TX_M2/SATA2_ACT_LED/PCIE30X2_PERSTn_M2/I2S3_LRCK_M1/GPIO4_C4_d

SATA active indicate

3.3V

I/O DOWN

183

USB3_HOST1_SSTXP

USB3_HOST1_SSTXP/SATA1_TXP/QSGMII_TXP_M0

USB3_HOST1_SSTXP

1.8V

-

184

USB3_HOST1_SSTXN

USB3_HOST1_SSTXN/SATA1_TXN/QSGMII_TXN_M0

USB3_HOST1_SSTXN

1.8V

-

185

USB3_HOST1_SSRXP

USB3_HOST1_SSRXP/SATA1_RXP/QSGMII_RXP_M0

USB3_HOST1_SSRXP

1.8V

-

186

USB3_HOST1_SSRXN

USB3_HOST1_SSRXN/SATA1_RXN/QSGMII_RXN_M0

USB3_HOST1_SSRXN

1.8V

-

187

USB3_HOST1_DM

USB3_HOST1_DM

USB3_HOST1_DM

3.3V

-

188

USB3_HOST1_DP

USB3_HOST1_DP

USB3_HOST1_DP

3.3V

-

189

USB3_OTG0_SSTXP

USB3_OTG0_SSTXP/SATA0_TXP

USB3_OTG0_SSTXP

1.8V

-

190

USB3_OTG0_SSTXN

USB3_OTG0_SSTXN/SATA0_TXN

USB3_OTG0_SSTXN

1.8V

-

191

USB3_OTG0_SSRXP

USB3_OTG0_SSRXP/SATA0_RXP

USB3_OTG0_SSRXP

1.8V

-

192

USB3_OTG0_SSRXN

USB3_OTG0_SSRXN/SATA0_RXN

USB3_OTG0_SSRXN

1.8V

-

193

USB3_OTG0_DM

USB3_OTG0_DM

USB3_OTG0_DM

3.3V

-

194

USB3_OTG0_DP

USB3_OTG0_DP

USB3_OTG0_DP

3.3V

-

195

USB3_OTG0_ID

USB3_OTG0_ID

USB3_OTG0_ID

3.3V

-

196

USB3_OTG0_VBUSDET

USB3_OTG0_VBUSDET

USB3_OTG0_VBUS detect

3.3V

-

197

USB_HOST_PWREN_H_GPIO0_A6

GPU_PWREN/SATA_CP_POD/PCIE30X2_CLKREQn_M0/GPIO0_A6_d

USB host power enable

3.3V

I/O DOWN

198

USB_OTG_PWREN_H_GPIO0_A5

SDMMC0_PWREN/SATA_MP_SWITCH/PCIE20_CLKREQn_M0/GPIO0_A5_d

USB OTG power enable

3.3V

I/O DOWN

199

DSI_TX1_D3N/EDP_TX_D3N

MIPI_DSI_TX1_D3N/EDP_TX_D3N

MIPI_DSI_TX1_D3N/EDP_TX_D3N

1.8V

-

200

DSI_TX1_D3P/EDP_TX_D3P

MIPI_DSI_TX1_D3P/EDP_TX_D3P

MIPI_DSI_TX1_D3P/EDP_TX_D3P

1.8V

-

201

DSI_TX1_D2N/EDP_TX_D2N

MIPI_DSI_TX1_D2N/EDP_TX_D2N

MIPI_DSI_TX1_D2N/EDP_TX_D2N

1.8V

-

202

DSI_TX1_D2P/EDP_TX_D2P

MIPI_DSI_TX1_D2P/EDP_TX_D2P

MIPI_DSI_TX1_D2P/EDP_TX_D2P

1.8v

-

203

DSI_TX1_D1N/EDP_TX_D1N

MIPI_DSI_TX1_D1N/EDP_TX_D1N

MIPI_DSI_TX1_D1N/EDP_TX_D1N

1.8V

-

204

DSI_TX1_D1P/EDP_TX_D1P

MIPI_DSI_TX1_D1P/EDP_TX_D1P

MIPI_DSI_TX1_D1P/EDP_TX_D1P

1.8V

-

205

DSI_TX1_D0N/EDP_TX_D0N

MIPI_DSI_TX1_D0N/EDP_TX_D0N

MIPI_DSI_TX1_D0N/EDP_TX_D0N

1.8V

-

206

DSI_TX1_D0P/EDP_TX_D0P

MIPI_DSI_TX1_D0P/EDP_TX_D0P

MIPI_DSI_TX1_D0P/EDP_TX_D0P

1.8V

-

207

DSI_TX1_CLKN/EDP_TX_AUN

MIPI_DSI_TX1_CLKN/EDP_TX_AUN

MIPI_DSI_TX1_CLKN/EDP_TX_AUN

1.8V

-

208

DSI_TX1_CLKP/EDP_TX_AUP

MIPI_DSI_TX1_CLKP/EDP_TX_AUP

MIPI_DSI_TX1_CLKP/EDP_TX_AUP

1.8V

-


Chapter 3. Development Board

Size

The size is 150mm*110mm, 4 layers, 1.6mm thickness .


Interfaces Description


Interfaces Description

NO.#

Name

【1】

DC 12V Input/4pin 2.54mm 12V Input

【2】

4G module sim card slot

【3】

TF card slot

【4】

USB OTG

【5】

USB3.0 HOST

【6】

SATA Data & Power

【7】

HDMI Out

【8】

MIPI LCD1

【9】

MIPI LCD0

【10】

MIPI Camera

【11】

USB2.0 * 3

【12】

USB2.0 TypeA

【13】

WIFI/BT(AP6335)

【14】

RTC

【15】

ETH0

【16】

ETH1

【17】

Update Key

【18】

Reset Key

【19】

Power Key

【20】

Keys(4pin 2.0mm)

【21】

CAN(3pin 2.0mm)

【22】

Uart TTL(4pin 2.0mm)

【23】

RS232 * 2(4pin 2.0mm)

【24】

RS485(4pin 2.0mm)

【25】

FAN(2pin 2.0mm)

【26】

MIC(2pin 2.0mm)

【27】

HP(2pin 2.0mm)

【28】

SPK(2pin 2.0mm)

【29】

Power Out(4pin 2.0mm)

【30】

Debug Uart(4pin 2.0mm)

【31】

GPIO(2*10pin 2,0mm)

【32】

4G Module Slot(PCIE port)

【33】

RK3568 SOM


The board uses 12V DC power supply, that connect by DC 12V Input connector or 4pin 2.54mm 12V Input connector.

Details of other interfaces, could refer to the schematic diagram and layout of the development board.


Chapter 4. Hardware Design

Design Reference

Take TC-RK3568 Development Board as hardware platform, you could refer to Power design, USB design, PCIE Port design, MIPI display design, Audio design, Ethernet design, Camera design, and so on. These are open to customers, can refer to our carrier board design.


Chapter 5. Software Design

TC-RK3568 develop platform supports Android11, Linux Buildroot, Ubuntu and Debian System OS, source codes are open. You can read the references such as Thinkcore TC-RK3568 system usermanual .



Hot Tags: RK3568 Core Board, Manufacturers, Suppliers, China, Buy, Wholesale, Factory, Made in China, Price, Quality, Newest, Cheap
Related Category

RV1126 Core Board

RK3568 Core Board

PX30 Core Board

RK3399 Core Board

RK3566 Core Board

Send Inquiry
Please feel free to give your inquiry in the form below. We will reply you in 24 hours.
Related Products
Hit enter to search or ESC to close
X
We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy
Reject Accept
