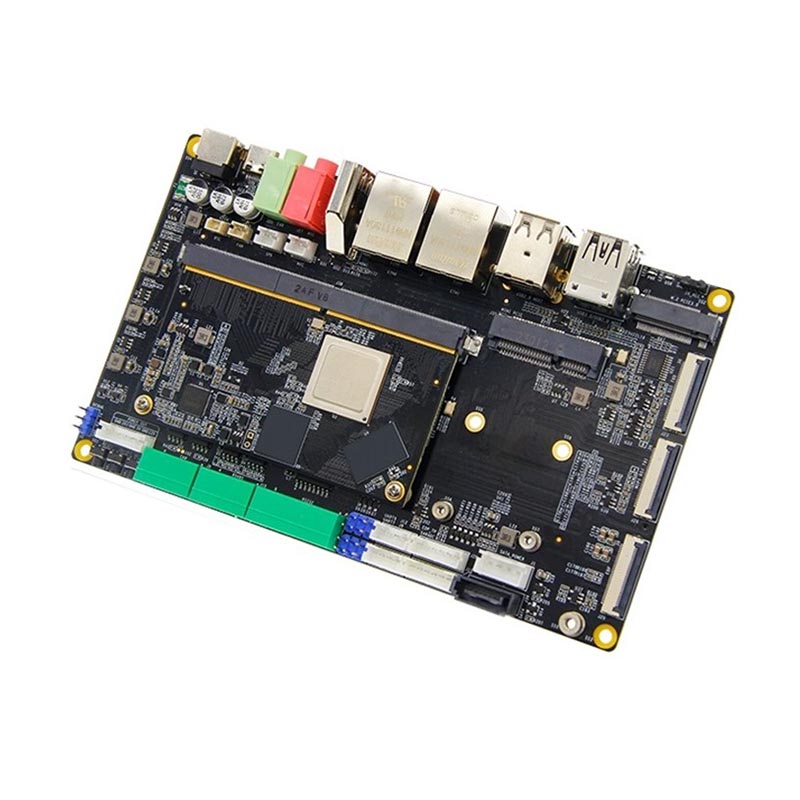

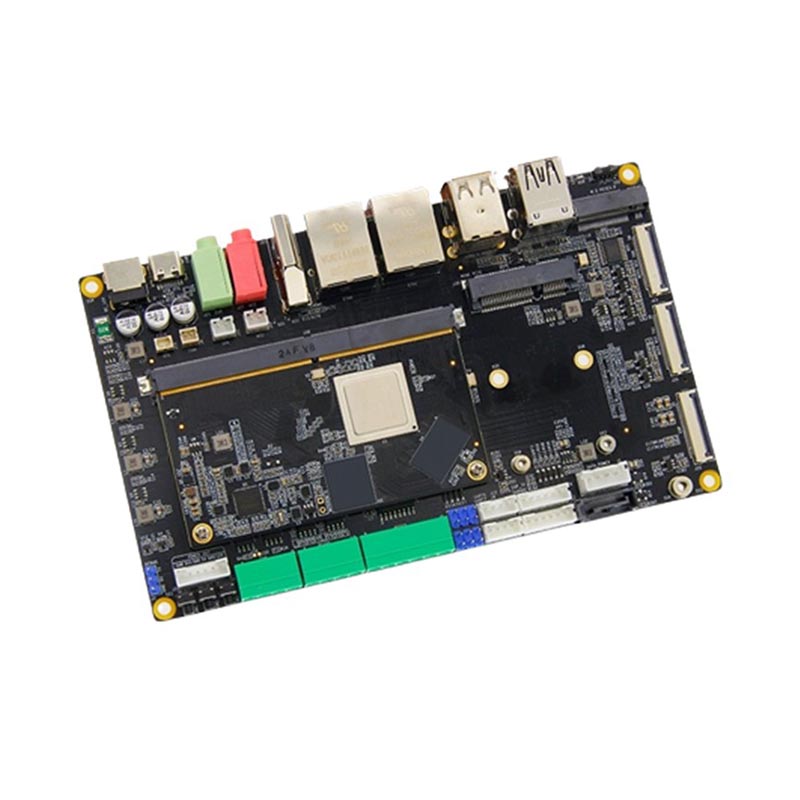

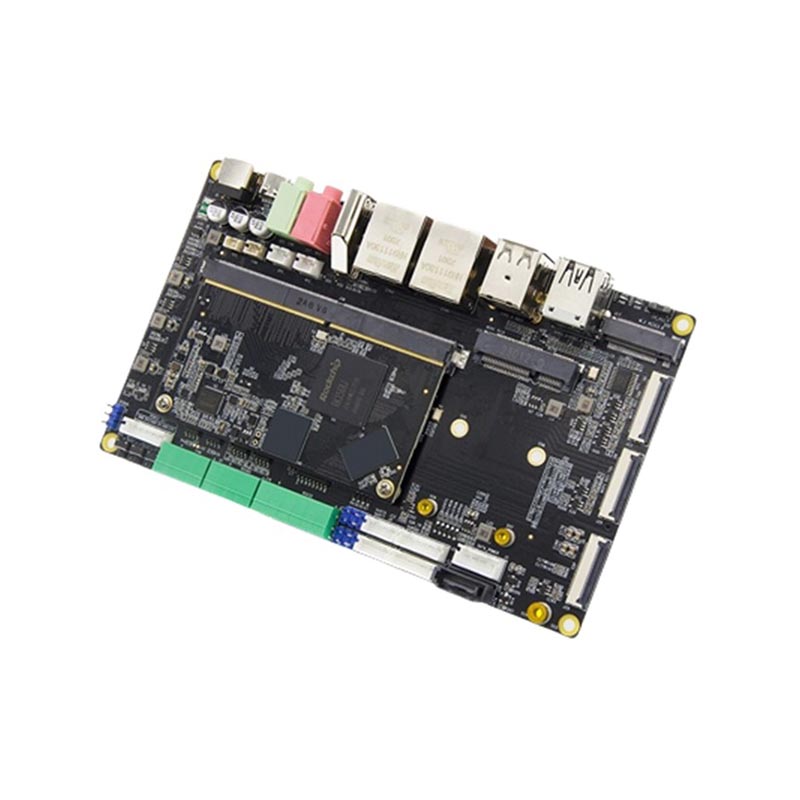

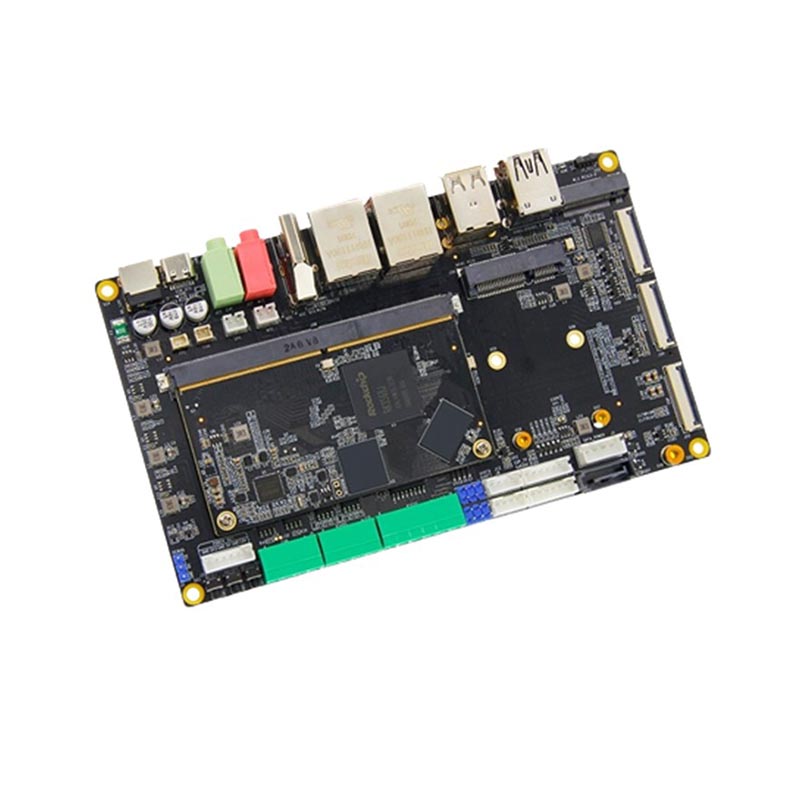

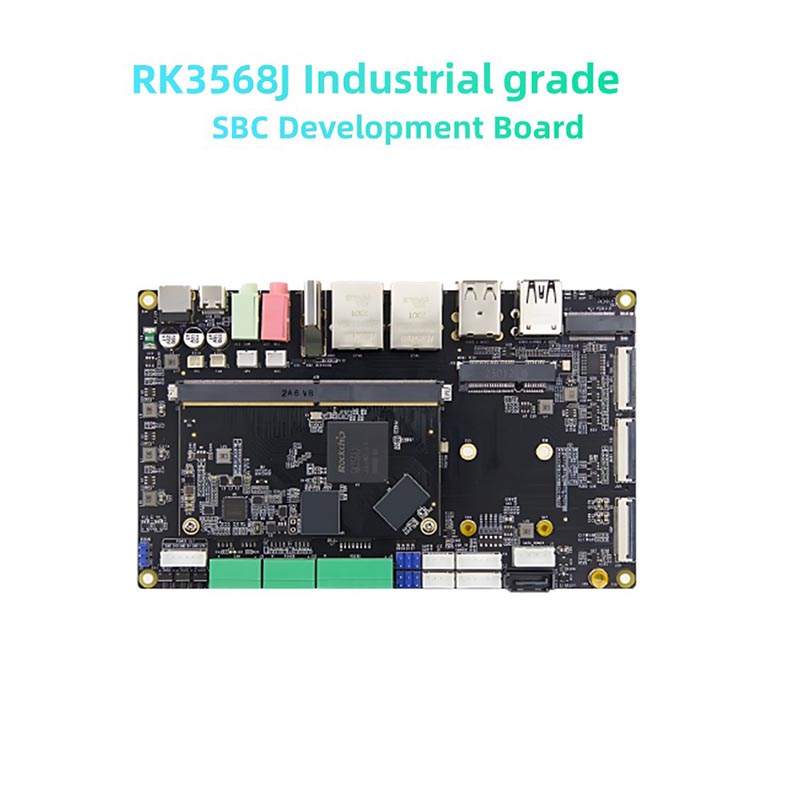

RK3568/RK3568J Golden Finger Development Board

Thinkcore Technology is a leading China RK3568/RK3568J Golden Finger Development Board manufacturers. Open source and SDK are provided for Rockchip RK3568 /RK3568J development board. Thinkcore Technology Co., Ltd. is a technical enterprise focusing on embedded hardware research and development, design, production and sales.

Send Inquiry

Product Description

Thinkcore Technology is a leading China RK3568/RK3568J Golden Finger Development Board manufacturers. This RK3568/ RK3568J development board uses Rockchip RK3568 (commercial grade)/RK3568J (industrial grade) as the main chip, adopts 22nm process technology, the main frequency can reach up to 2.0GHz, integrates quad-core 64-bit Cortex-A55 processor and Mali G522EE graphics processing. It supports 4K decoding and 1080P encoding, supports dual-frequency differential display, built-in independent NPU, and can be used for lightweight artificial intelligence applications.

Provides a variety of memory and storage combinations to choose from, and the onboard hardware configuration is uniform, with a wide range of applications.

Built-in independent NPU computing power up to 1TOPS (512MAC NPU for 3568J) can be used for lightweight artificial intelligence applications.

The development board is highly integrated and has a wealth of expansion interfaces. With peripherals such as dual Gigabit Ethernet ports, HDMI, eDPMini PCle, SATA, M.2USB3.USB2.0, MIPI screen interface, MIPI camera interface, and audio interface, you can Give full play to the performance of the processor and further expand the usage scenarios of the board.

Officially supports the mainstream Andriod11, DebainUbuntu operating system images, which can be applied to a variety of different application environments.

It is completely open source, provides official tutorials, provides a complete SDK driver development kit, design schematic diagrams and other resources, and can be easily developed

Product Parameters

Connector	314PinsMXM connector, model: ASOB821-S55B-7H
power interface	12V@1A (1A and above) DC input, DC interface
Ethernet	10/100/1000M adaptive Ethernet port*2
HDMI	HDMI2.0 screen interface, support dual-screen different display
MIPI DSI	MIPI screen interface *2, support dual screen different display
MIPI CSI	MIPI camera interface *2,
eDP	eDP1.3 screen interface1, eDP touch interface1; support dual-screen display
USB2.0	Type-A interface3(HOST); Type-C interface1(OTG), for firmware burning interface
USB3.0	Type-A interface*1(HOST)
M.2 interface	SSD M.Key type, PCle3.0*2Lanes; 2280 specification NVME SSD can be inserted
PCIe interface	Mini-PCie interface, can be used with full-height or half-height WIFI network card 4Gmodule or other Mini-PCle interface modules
SIM card slot	The SIM card function needs to be used with a 4G module
SATA interface	Standard SATA interface1; SATA power supply interface1, support 12V output
CAN	CAN*2
ADC	ADC acquisition interface*1
Serial port	Debug serial port1 (UART2) default parameter 1500000-8-N-1; LVTTL2(UART7&UART9); RS2322(UART7&UART9)RS4852(UART3&UART4
TF slot	Support MicroSD (TF) card boot system, up to 512GB
Audio	Audio output, 3.5mm audio seat 1 (red); audio input, 3.5mm audio seat 1 (green); MIC microphone interface 1 SPK speaker interface 1, can be connected to 1W power speaker
Button	Power button; MaskRom button; Recovery button
Infrared receiver	Support infrared remote control function
RTC	RTC power socket*1
Fan interface	Support installation of 5V fan cooling
