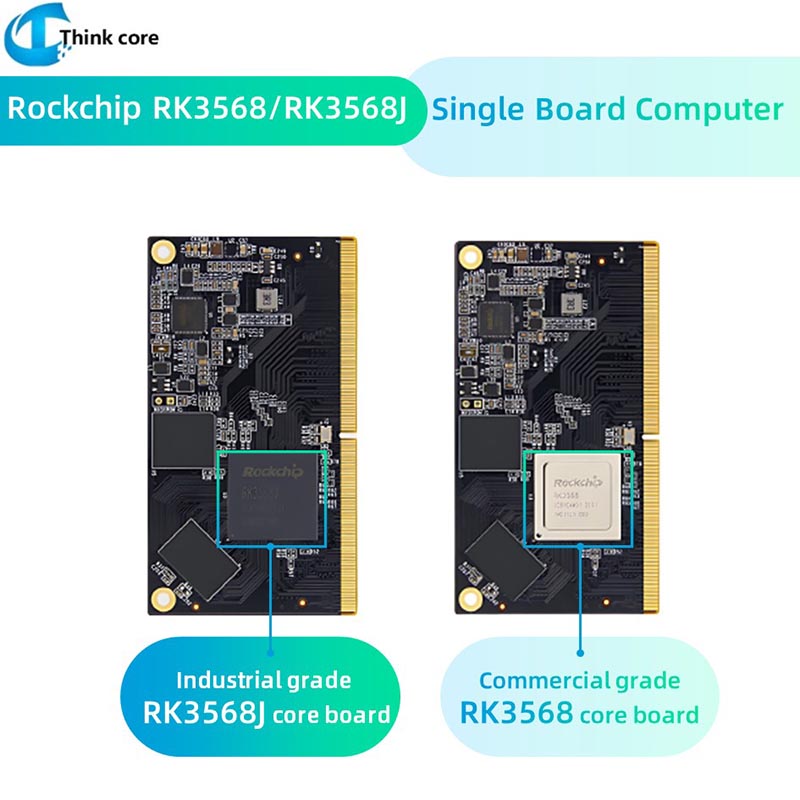

RK3568J RK3568 Golden Finger SOM Board

Thinkcore Technology is a leading China RK3568J RK3568 Golden Finger SOM Board manufacturers. This RK3568 single-board computer board supports Ubuntu, Debian, Android, and other systems, and provides multiple sets of teaching materials, covering pure application layer users and system development users. Even beginners who are new to the embedded industry can complete development according to our tutorials. If you are a senior develper, you can speed up the secondary development process of the product.

Using Rockchip RK3568 as the main chip, 22nm process technology, 2.0GHz Main frequency, integrated quad-core 64-bit Cortex-A55 processor, Mali G52 2EE graphics processor and independent NPU;

With 1TOPS computing power, it can be used for lightweight artificial intelligence applications;

Support dual-screen different display, support maximum simultaneous output of 4K60 frame + 2K60 frame image, support HDR, support 4K60 frame decoding video output and 1080P encoding;

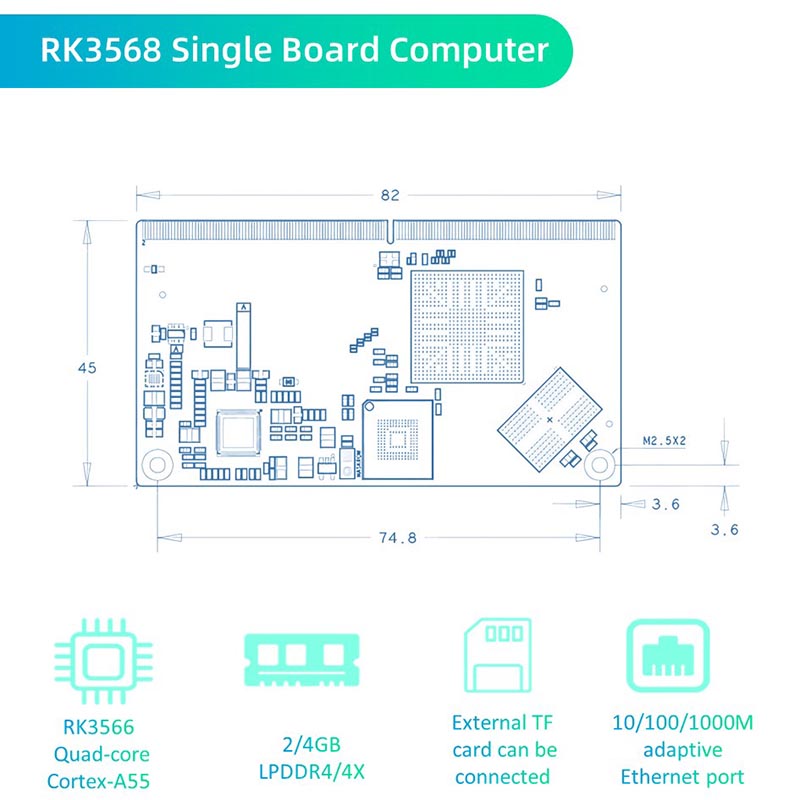

The board provides a variety of memory and storage configuration options, only 82*45 mm in size, low power consumption, high performance, and can easily run Linux or Android systems;

Provide Andriod, Debain, Ubuntu operating system images, which can be applied to a variety of different application environments.

Provide complete SDK driver development kits, design schematic diagrams and other resources, which are convenient for users to use and secondary development.

Product Parameters

Connector: 314Pins MXM connector, model: ASOB821-S55B-7H

Main chip: RK3568/RK3568J (quad-core Cortex-A55, 2GHzMali-G52)

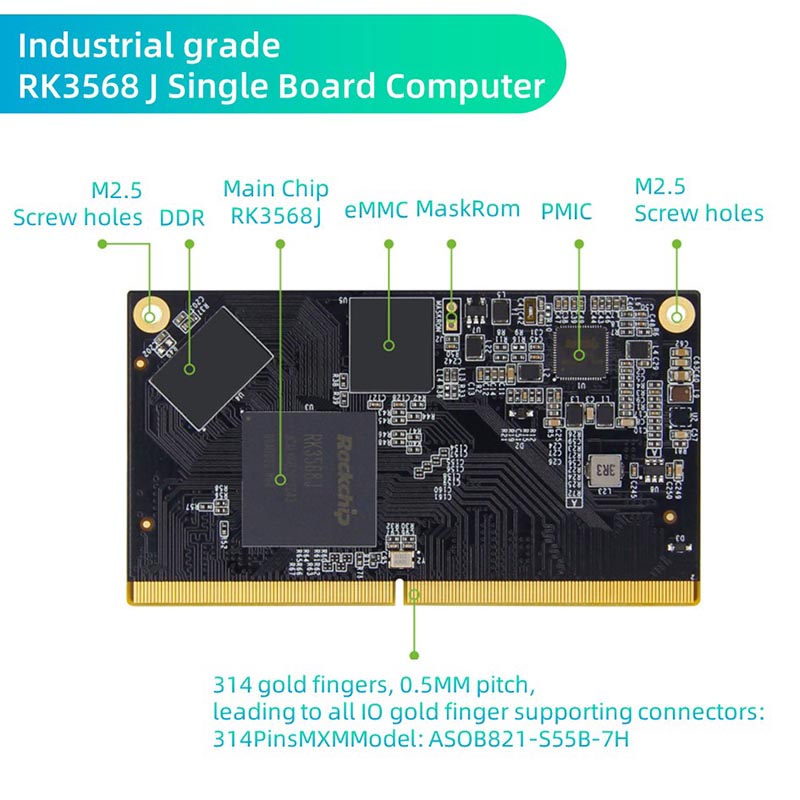

IO: 314 gold fingers, 0.5MM spacing, leading to all I0

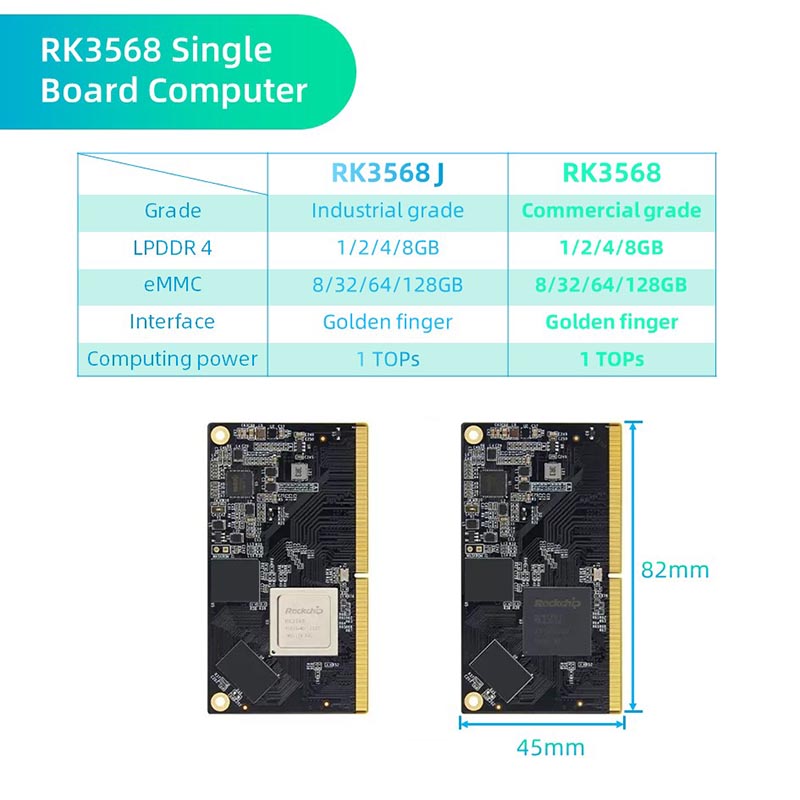

Memory: LPDDR4/4X-1/2/4/8GB

Storage: eMMC-8/32/64/128GB
