Rockchip RK3566 Arm Single board computer with Gigabit

Thinkcore Technology is a professional leader China Rockchip RK3566 Arm Single board computer with Gigabit manufacturer with high quality and reasonable price.

The RK3566 SBC board is a high-performance and energy-efficient board that is ideal for a wide range of industrial and commercial applications. It is designed to offer exceptional processing power and reliability, making it an excellent choice for users in search of a reliable, high-quality computing solution.

It’s excellent performance and rich hardware models cover education, commercial applications, industrial control and other fields, and have a wide range of application scenarios: card computers, Linux servers, home intelligent hubs, industrial boards;

Product Features

 Using Rockchip RK3566 as the main chip, 22nm process technology, 1.8GHz main frequency, integrated quad-core 64-bit Cortex-A55 processor, Mali G52 2EE graphics processor and independent NPU;

 With 1TOPS computing power, it can be used for lightweight artificial intelligence applications;

 Supports 1 channel 4K60 frame decoding video output and 1080P encoding;

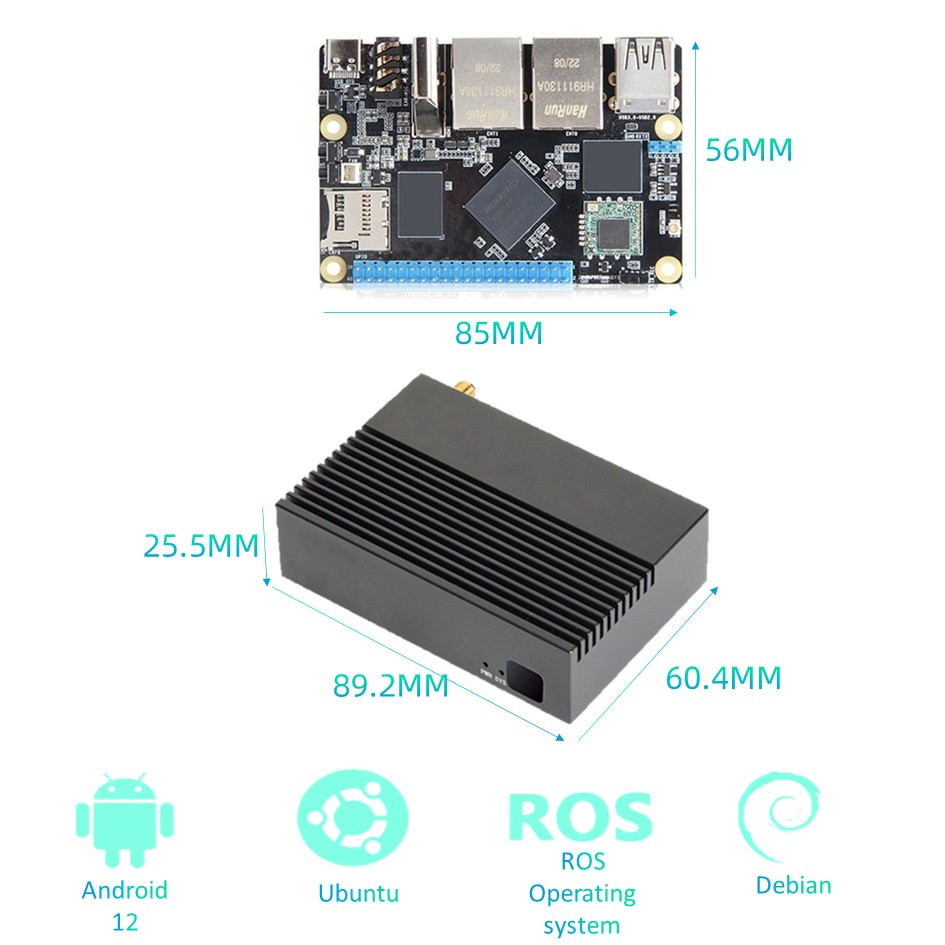

 The board provides a variety of memory and storage configuration options, only 85*56 mm in size, low power consumption, high performance, and can easily run Linux or Android systems;

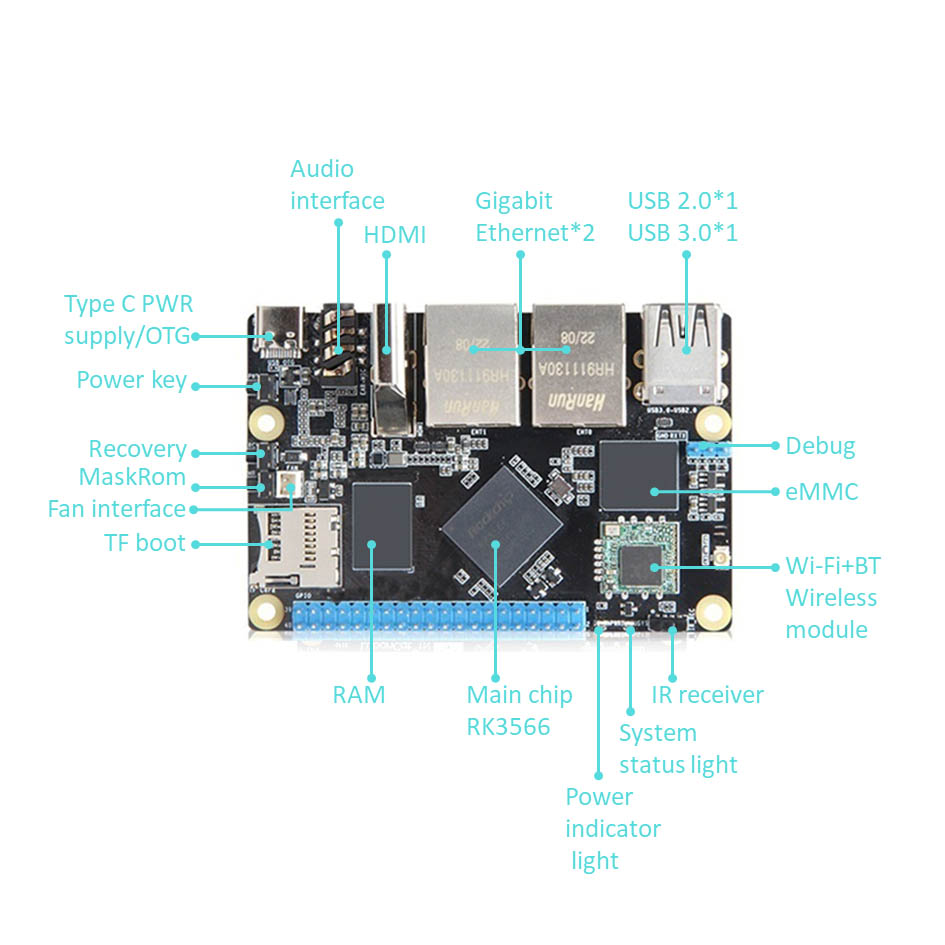

 It has a large number of commonly used peripherals onboard, integrating dual-band WiFi + BT4.2 wireless modules, dual gigabit Ethernet ports, USB3.0, USB2.0, HDMI, Mini PCIe, MIPI screen interface and MIPI camera interface and other peripherals, reserved 40Pin unused pins, compatible with Raspberry Pi interface;

 Provides Andriod, Debain, and Ubuntu operating system images, which can be applied to a variety of different application environments

 Provides a complete SDK driver development package, design schematics and other resources to facilitate user use and secondary development.

Product Parameters

 Power interface: 5V@3A DC input, Type-C interface

 Main control chip: RK3566 (quad-core Cortex-A55, 1.8GHz, Mali-G52)

 Memory: 1/2/4/8GB，LPDDR4/4x, 1056MHz

 Storage: 8/32/64/128GB，eMMC

 Wireless network: 802. 11ac dual-band wireless network card, up to 433Mbps;

 Bluetooth: supports BT4.2 protocol

 Ethernet: 10/100/1000M adaptive Ethernet port*2

 HDMI: HDMI2.0

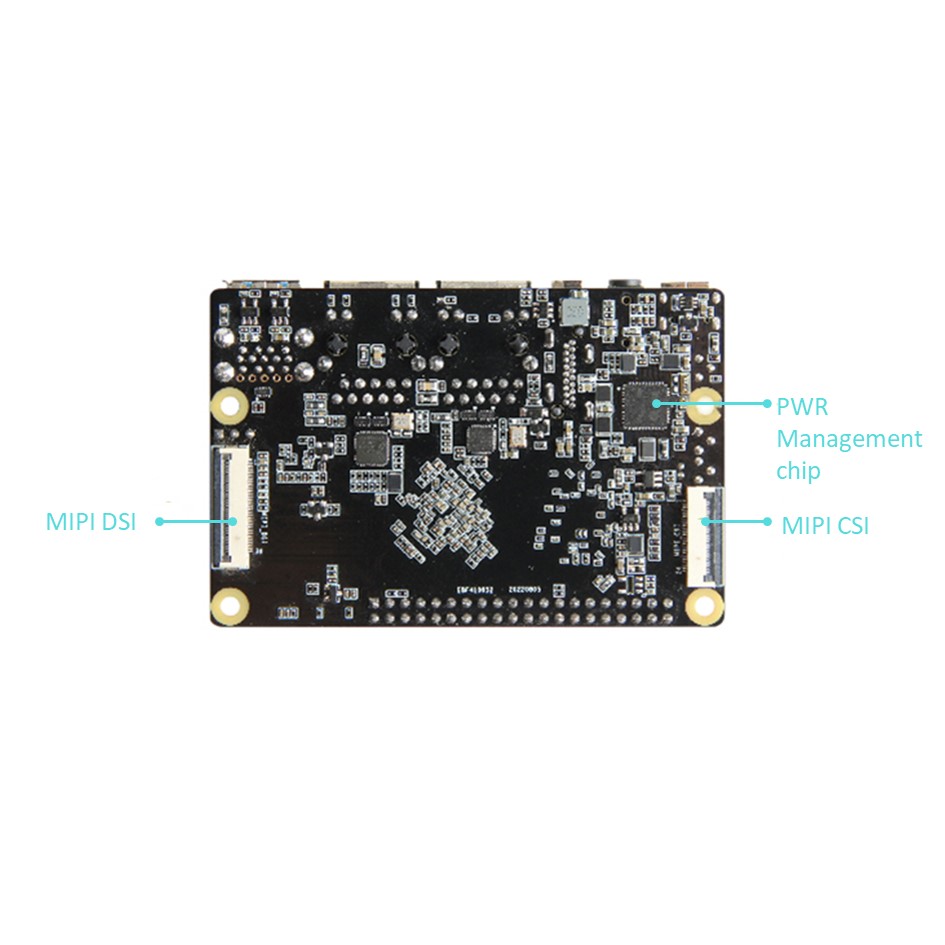

 Display interface: MIPI-DSI MIPI screen interface

 MIPI-CSI: MIPI camera interface

 USB2.0: Type-A interface*1(HOST); Type-C interface *1 (OTG), for firmware burning interface, shared with the power interface

 USB3.0: Type-A interface*1(HOST)40Pin interface Compatible

 with Raspberry Pi 40Pin interface, supports PWM, GPIO, I²C, SPI, UART

Functions

 Debug serial port: Default parameter 1500000-8- N- 1

 TF card holder: Support Micro SD (TF) card boot system, up to 128GB

 Audio interface: Headphone output + microphone input 2 in 1 interface

 Button: Power button; MaskRom button; Recovery button

 Infrared receiver: Support infrared remote control function

 Fan interface : Support the installation of fans for heat dissipation
