RK3566 System on module

RK3566 System on module

RK3566 System on module is equipped with Rockchip Quad coretex- A55 processor RK3566. It is suitable for scenarios such as smart NVR, cloud terminal, IoT gateway, industrial control, edge computing, turnstile gate, NAS and vehicle control.

A complete SDK, development documents, examples, technology documents, tutorials and other resources are provided for the users to make a further customization.

RK3566, the quad-core 64-bit Cortex-A55 processor, with 22nm lithography process, has frequency up to 2.0GHz, delivering efficient and stable performance for data processing of back-end equipment.

There are a variety of storage options, allowing customers to quickly implement the research and production of products. It supports up to 8GB RAM, with up to 32Bit width and frequency up to 1600MHz.

It supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products application. It is integrated with dual-core GPU, high-performance VPU and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow.

With MIPI-CSI x2, MIPI-DSI x2, HDMI2.0, EDP video interfaces, it can support up to three screen output with different display. The built-in 8M ISP supports dual cameras and HDR. Video input interface can be connected to an external camera or multiple cameras.

RK3566 System on module is equipped with dual adaptive RJ45 Gigabit Ethernet ports, through which internal and external network data can be accessed and transmitted, improving network transmission efficiency, support WiFi 6 (802.11ax) wireless network communication, with high-speed transmission, reduce packet loss rate and retransmission rate characteristics, more effectively reduce data congestion, and allow more devices to connect to the network, so that the transmission is more stable and secure; Also through the external module can expand 5G/4G, so that the product communication has a higher rate, larger capacity and lower delay.

TC-RK3566 platform supports Android 11.0, Linux Buildroot, Ubuntu and Debian operating systems.

The system runs stably and reliably, providing a safe and stable system environment for product research and production. SDK open source is conducive to independent development by customers.

RK3566 System on module leads to 192 Pin, combined with the bottom board can form a complete high-performance industry application motherboard, more extensive interface, can be directly applied to a variety of intelligent products, accelerate the product landing.

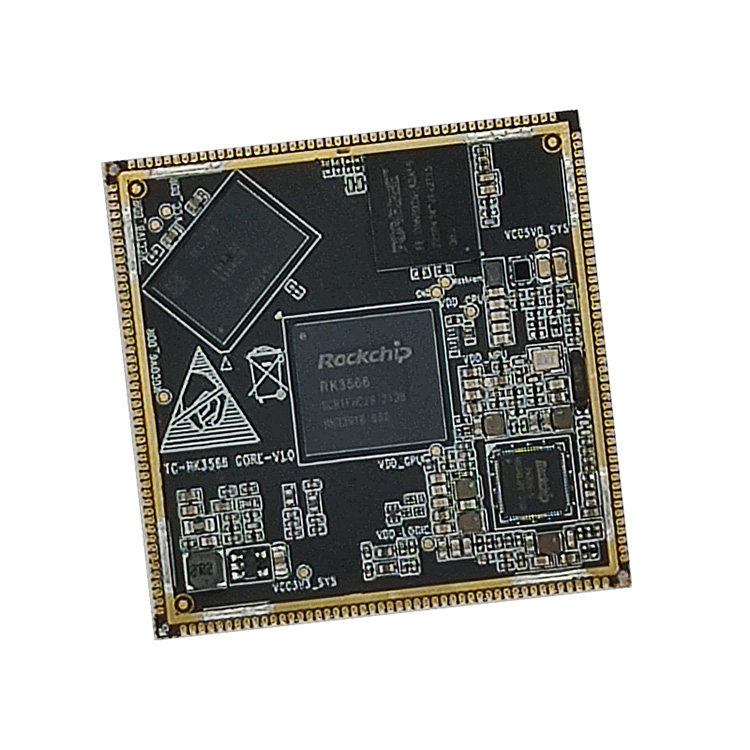

TC-RK3566 Stamp Hole SOM Features：

⚫ Rockchip 64-bit processor A55 processor RK3566, which integrates dual-core GPU, high-

performance VPU and highly efficient NPU.

⚫ It supports up to 8GB LPDDR4 RAM，128GB eMMC storage. Default combination is 2GB+8GB

and 4GB+32GB.

⚫ Size: 53mm * 53mm ；

⚫ In the form of stamp, up to 192 pins, rich interfaces.

⚫ Android11.0，Linux Buildroot, Ubuntu and Debian are supported. SDK is open.
