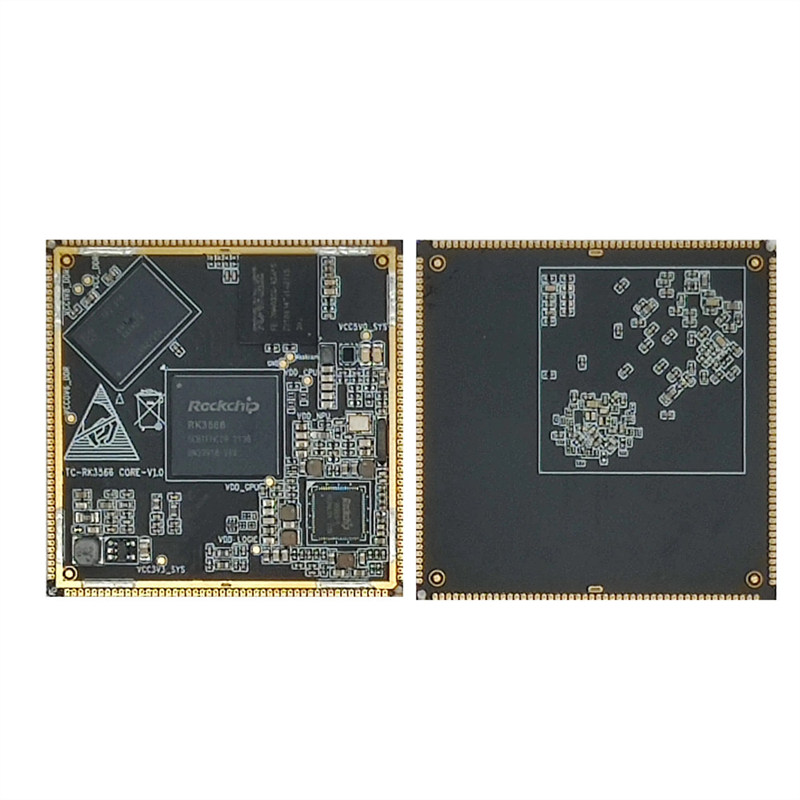

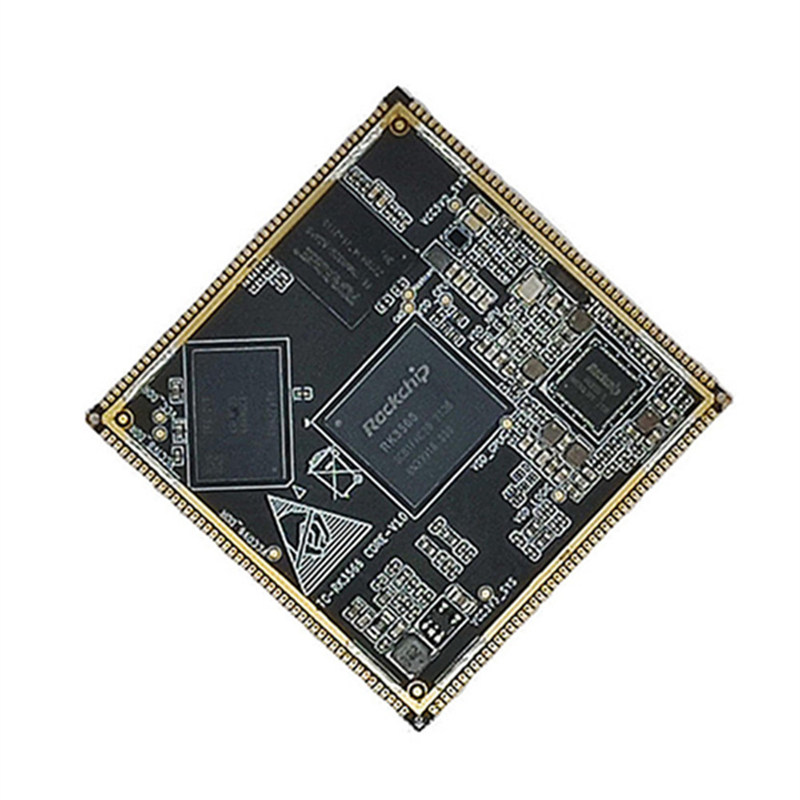

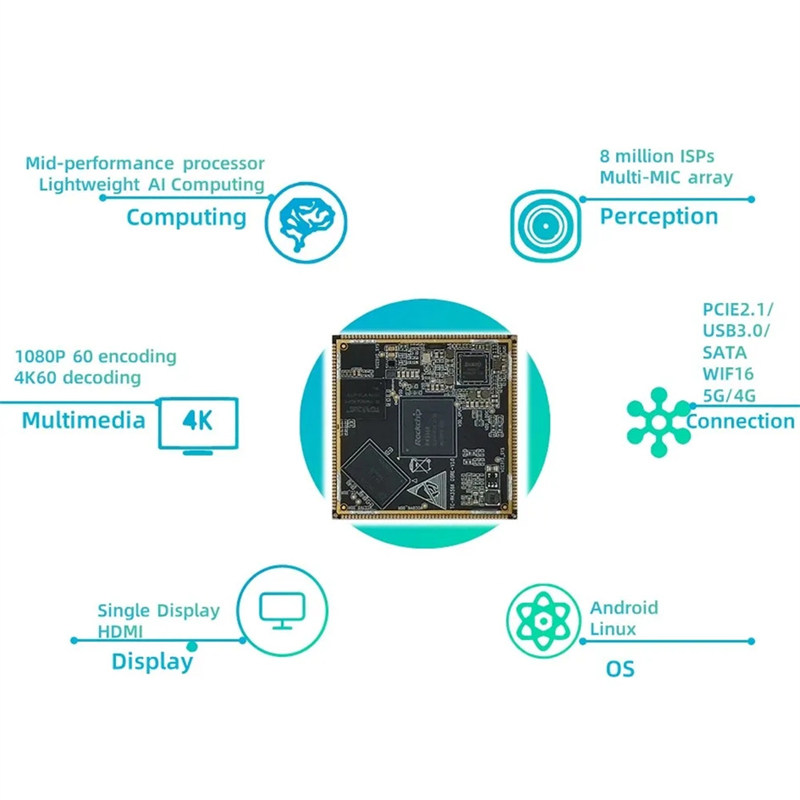

Rockchip RK3566 Core Board

Thinkcore is a leading China Rockchip RK3566 Core Board manufacturer. It supports the configuration of dual gigabit adaptive RJ45 Ethernet ports, which can access and transmit data on the internal and external networks through the dual network ports, improving network transmission efficiency;supporting wireless network.

Send Inquiry

Product Description

Thinkcore is a leading China Rockchip RK3566 Core Board manufacturer.

About this item

• It supports the configuration of dual gigabit adaptive RJ45 Ethernet ports, which can access and transmit data on the internal and external networks through the dual network ports, improving network transmission efficiency;supporting wireless network

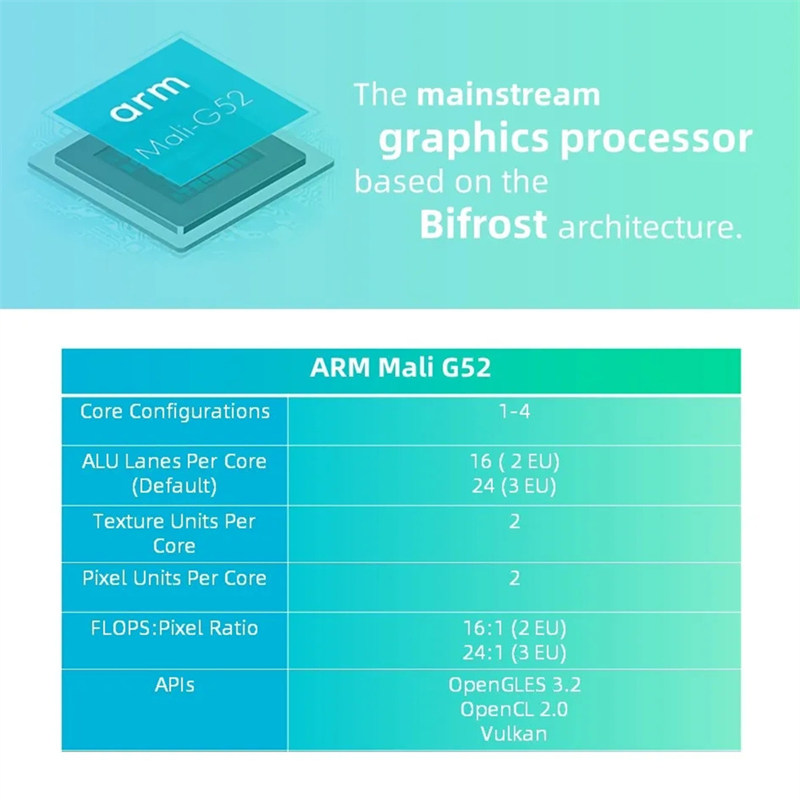

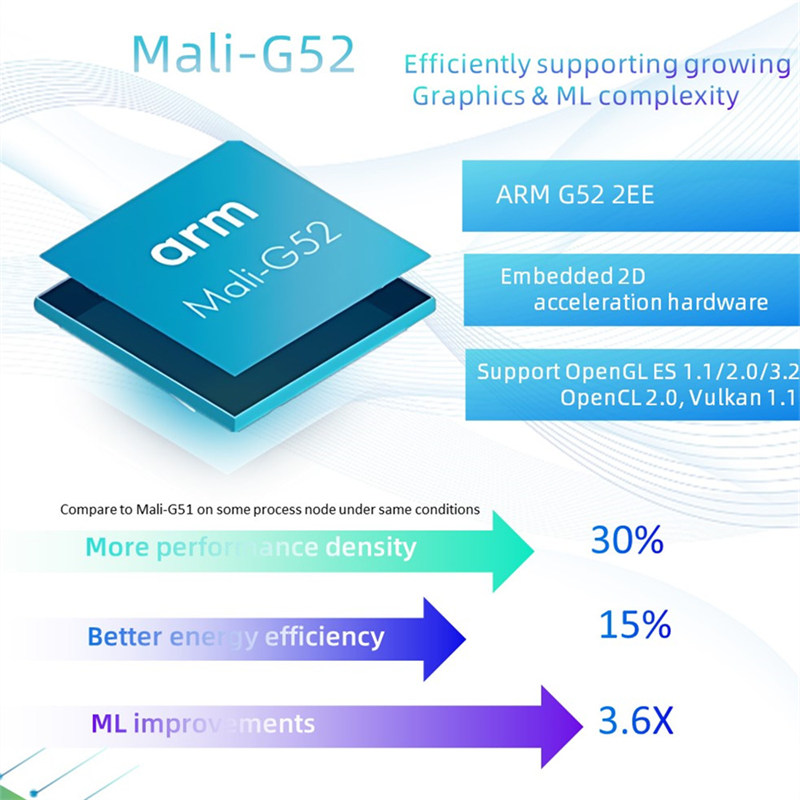

• GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1; VPU can realize 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/H.264 video encoding; NPU supports Caffe/TensorFlow and other mainstream One-click switching of architecture models.

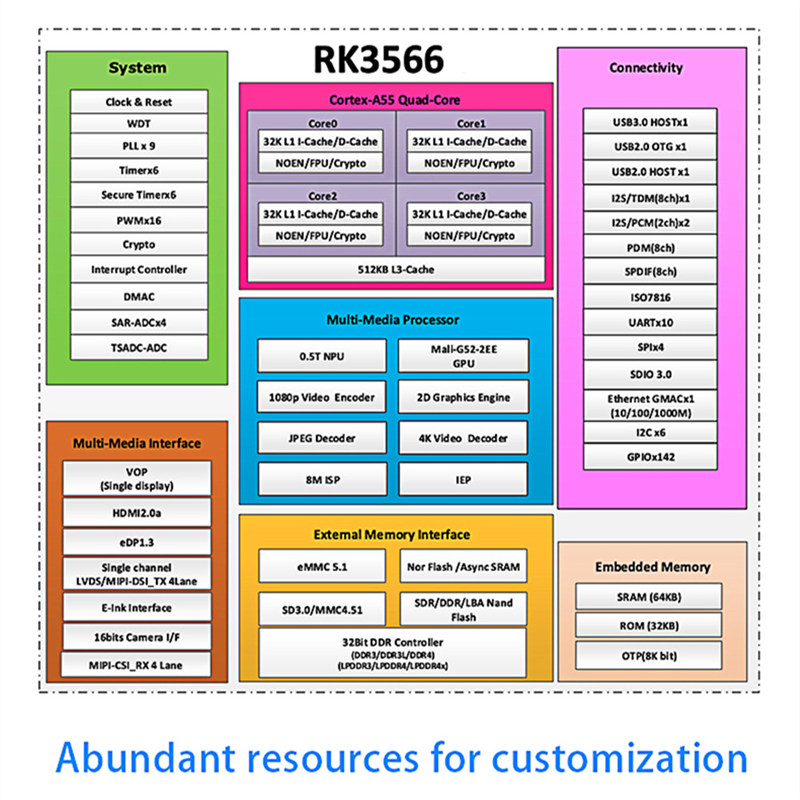

• RK3566 adopts 22nm advanced technology, with a main frequency of up to 2.0GHz, CPU can be equipped with up to 8GB memory capacity, which can reach 32Bit bit width, and frequency up to 1600MHz.

• RK3566 has MIPI-CSIx2, MIPI-DSIx2, HDMI2.0, EDP video interface, which can support up to three screens with different display output; built-in 8M ISP image signal processor, which can support dual cameras and HDR functions;

• The TC-RK3566 platform supports Android 11.0, Linux Buildroot, Ubuntu, and Debian operating systems. The system runs stably and reliably,the SDK is open source, which is conducive to independent development by customers.

Product Major Parameters
Power interface	12V@2A DC input, DC interface
Main chip	RK3568, Quad Cortex-A55，2.0GHz，Mali-G52
RAM	1/2/4/8GB，LPDDR4/4x，1560MHz
Storage	8/32/64/128GB，eMMC
Ethernet	2.5G Ethernet port2; 10/100/1000M adaptive Ethernet port2
HDMI	HDMI2.0 display interface, support dual-screen display with MIPI-DSI
MIPI- DSI	MIPI screen interface, wildfire MIPI screen can be plugged in, support dual-screen display with HDMI2.0
MIPI-CSI	MIPI-Camera interface
USB2.0	Type-A Indicates interface 1(HOST). Type-C interface 1(OTG), which is the firmware burning interface and shared with the power interface
USB3.0	Type-A port*1 (HOST)
PCIe interface	Mini-PCIe interface, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCIe interface modules
SATA interface	Standard SATA interface
Hard disk pwr supply interface	supports 12V output
SIM card holder	The SIM card function needs to be used with a 4G module
40Pin interface	Compatible with Raspberry Pi 40Pin interface, supports PWM, GPIO, I²C, SPI, UART functions
Debug serial port	Default parameter 1500000-8-N-1
TF deck	Support Micro SD (TF) card boot system, up to 128GB
audio port	Headphone output + microphone input 2 in 1 interface
SPK speaker interface	1W power speaker can be connected
Button	Power button, MaskRom button; Recovery button
Infrared receiver	supports infrared remote control function
Fan interface	supports the installation of fans for heat dissipation
RTC battery interface	supports RTC function
