Rockchip RK3566 BTB Core Board

1. RK3566 Core board can be used as a high-performance single-board computer and embedded motherboard for display, control, network transmission, file storage, edge computing and other scenarios.

2. Using Rockchip RK3566 as the main chip, it adopts 22nm process technology, with a main frequency of up to 1.8GHz, integrated with quad-core 64-bit Cortex-A55 processor and MaliG522EE graphics processor, supports 4K decoding and 1080P encoding, supports dual-frequency display, built-in independent NPU, can be used for lightweight artificial intelligence applications.

3. Provide a variety of memory and storage combinations to choose from, onboard hardware configuration is balanced, and the application range is wide.

4. The built-in independent NPU computing power can reach 1TOPS, which can be used for lightweight artificial intelligence ai applications.

5. High integration, with rich expansion interfaces, with Gigabit Ethernet port, HDMI, eDP, MiniPCle, USB3.0, USB2.0, MIPI screen interface and MIPI camera interface, audio interface and other peripherals, can give full play to the performance of the processor and further expand the use scenarios of the board.

6. Officially supports mainstream Andriod 11, Debain, Ubuntu operating system images, and can be applied to a variety of different application environments.

7. Completely open source, providing official tutorials, complete SDK driver development kits, design schematics and other resources, you can easily get started without blind spots.

Product Features

1. Free SDK

2. Board to board structure. Rk3566 RK3568 two core boards are compatible

3. Supports multiple screen interfaces, supports up to 4K60 frame output. Supports HDMI, MIPI DSI, eDp, LVDS

4. Built-in independent NPU, computing power can reach 1TOPS

5. Multiple configurations: 1/2/4/8GB LPDDR4 ;8/32/64/128GB eMMC

6. 4K decoding; Gigabit Ethernet port; USB3.0

7. Provide technical support

Product Parameters

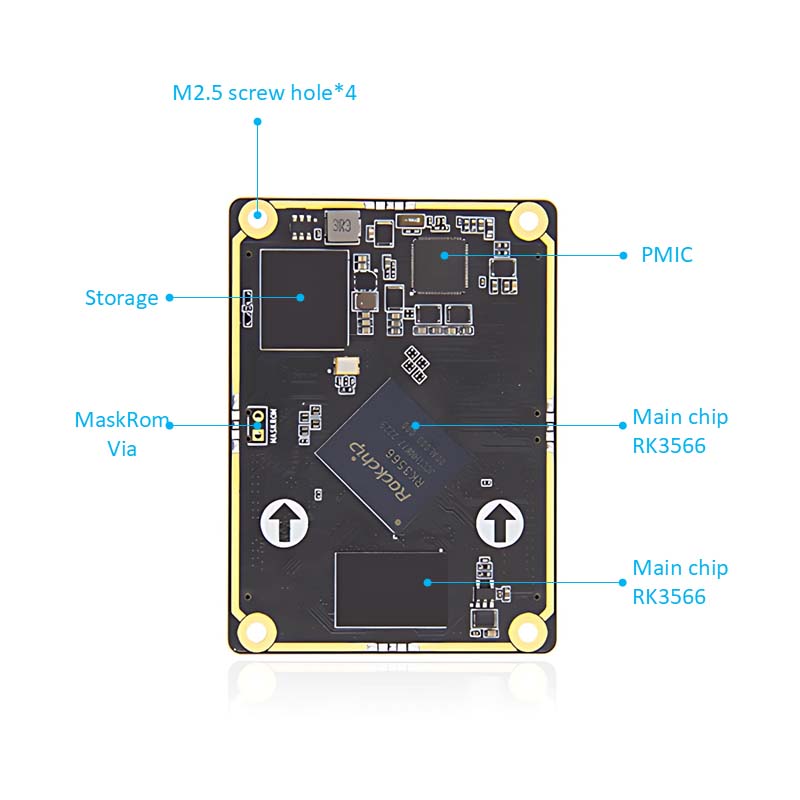

Core-board Parameters

Connector: 260Pins DDR4 connector, model: ASOA826-H2SB-7H

Main chip: RK3566 (quad-core Cortex-A55, 1.8GHz, Mali-G52)

IO: 260 gold fingers, 0.5MM spacing, lead out all I0

Memory: 1/2/4/8GB, LPDDR4/4X, 1056MHz

Storage: 8/32/64/128GB, Emmc

Baseboard Parameters

Connector: 260Pins DDR4 connector, model: ASOA826-H2SB-7H

Power interface: 12V@1A (1A and above) DC input, DC interface

Ethernet: 10/100/1000M adaptive Ethernet port

HDMI: HDMI2.0 screen interface*1, maximum resolution 4096*2160@60Hz

LVDS: LVDS screen interface*1, single channel 8bit

MIPI-DSI: MIPI screen interface*1; single MIPI mode maximum resolution 1920*1080@60HZ

MIPI-CSI: MIPI camera interface*2, pluggable IMX415/OV8858 camera

eDP: eDP1.3 screen interface*1, eDP touch interface*1

USB2.0: Type-A interface*3 (HOST); Type-C interface*1 (OTG), for firmware burning interface

USB3.0: Type-A interface*1 (HOST)

WiFi+Bluetooth: Onboard WiFi Bluetooth module, model: RTL8821CU

PCle interface: Mini-PCle interface, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCle interface module

SIM card holder: SIM card function needs to be used with 4G module

1²C: 1²C*2

Serial port: Debug serial port*1 (UART2) default parameter 1500000-8-N-1; LVTTL serial port*2 (UART7&UART9); RS232*2 (UART3&UART4); RS485*2 (UART1&UART6)

TF card holder: Support Micro SD (TF) card to start the system, up to 512GB

Audio: Audio output, 3.5mm audio jack*1 (green); Audio input, 3.5mm audio jack*1 (red) MIC microphone interface*1

SPK speaker interface*1, can connect 1W power speaker

Buttons: power button; MaskRom button; Recovery button

Infrared receiver: supports infrared remote control function

RTC: RTC power socket*1

Fan interface: supports installation of 5V fan cooling
