Rockchip RK3588 Core Board Board To Board

RKK3588 Features

 8nm advanced process, 8-core 64-bit architecture, high performance, low power consumption

 ARM Mali-G610 MC4 GPU, dedicated 2D graphics acceleration module

 6TOPs NPU, enabling various AI scenarios

 8K video encoding and decoding, 8K display output

 Built-in multiple display interfaces, support multi-screen display

 Super image processing capabilities, 48MP ISP, support for multiple camera inputs

 Rich high-speed interfaces (PCIe, TYPE-C, SATA, Gigabit Ethernet), easy to expand

 Android and Linux OS

Product Parameters

RK3588 Core board parameters

 Connector: Male connector: DF40C-100DP-0.4V(51) Female connector: DF40C-100DS-0.4V(51)

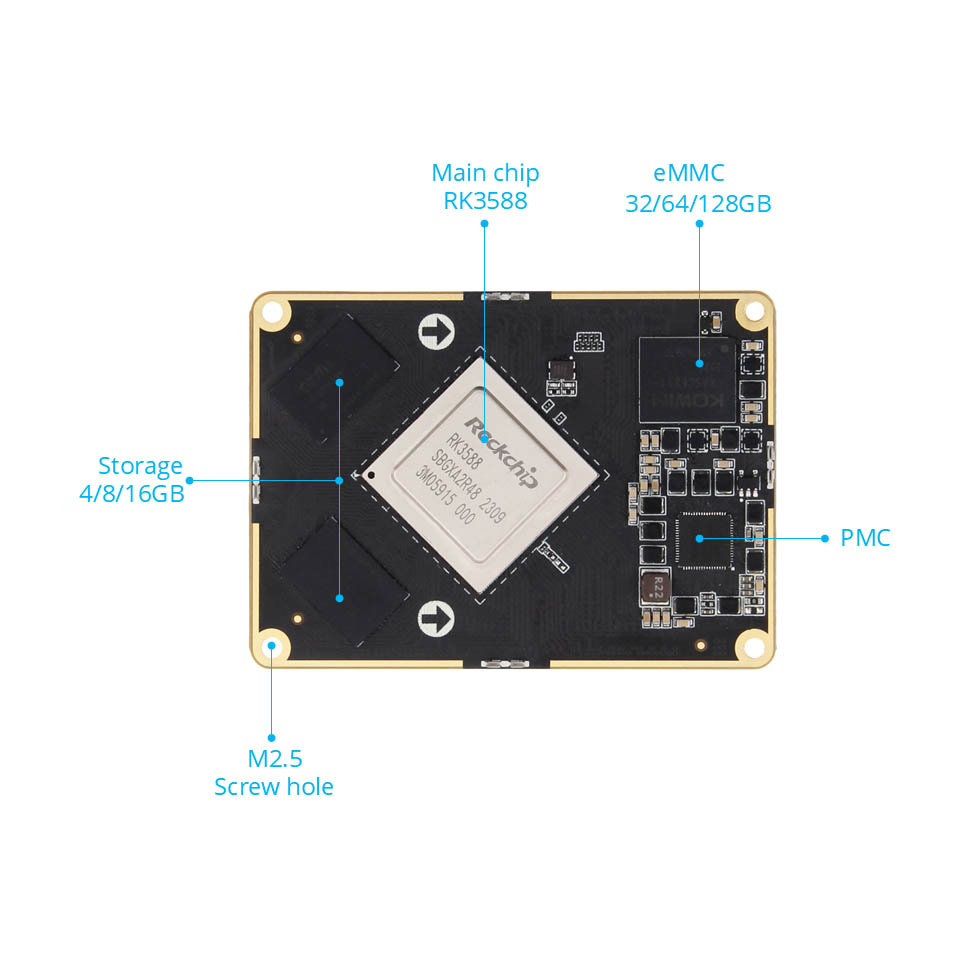

 Main chip: RK3588 (quad-core A76 + quad-core A55, Mali-G610, 6TOPS computing power) BTB leads to 400 pins, 0.5mm spacing, leads to all I0

 Memory: 4/8/16GB, LPDDR4/4x

 Storage: 32/64/128GB.eMMC

RK3588 Baseboard parameters

 Connector: Male: DF40C-100DP-0.4V(51) Female: DF40C-100DS-0.4V(51)

 Power interface: 12V@2A DC input, DC interface*1; power output interface*1

 Ethernet: Gigabit network port*2, support 10/100/1000Mbps data transmission rate

 HDMI: HDMI12.0 input*1, up to 3840x2160@60FPS; HDMI2.1 output*2, supports multiple screens with other screens, maximum resolution 7680x4320@60Hz (8K resolution)

 MIPI-DSI: MIPI screen interface*2 (front*1, back*1), can be plugged into Wildfire MIPI screen, supports multiple screens with other screens; single MIPI mode maximum resolution 1920*1080@60HZ

 MIPI-CSI: MIPI camera interface*6 (front*3, back*3), can be plugged into Wildfire MIPI camera

 USB2.0: USB-HOSTType-A interface*3

 USB3.0: USB-OTGType-A interface*1; Type-C interface*1, can be used for firmware burning, supports DP1.4 protocol

 PCle interface: Mini-PCle interface*1, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCle interface module: PCle3.0X4 interface*1

 M.2 interface: M.2EKEY interface*1, supports M.2 E-Key wireless network card module; M.2 M KEY interface*1, supports M.2 M-Key PCle3.0*4Lanes specification 2280 hard disk

 TF card holder: Micro SD (TF) card holder*1, supports TF card boot system, up to 512GB

 SIM card holder: SIM card holder*1, SIM card function needs to be used with 4G module

 SATA interface: Standard SATA interface*1; SATA power interface*1, supports 12V output

 CAN: CAN*2

 ADC: ADC acquisition interface*1

 Debug serial port:

 Debug serial port*1 (UART2), default parameter 1500000-8-N-1; UART serial port*2 (UART7&UART9); RS232*2 (UART4&UART7);

 RS485*2 (UART4&UART7); RS232/RS485 selection jumper interface*2

 Audio: Onboard MIC microphone*1; SPK speaker interface*2, can connect 3W power speaker headphone output + microphone input 2-in-1 interface*1

 Button: ON/OFF button*1; MaskRom button*1; Recovery button*1; Reset button*

 LED: Power indicator*1; System indicator*1

 Infrared receiver: Support infrared remote control function

 RTC: RTC power socket*1

 Fan interface: Support installation of 5V or 12V fan cooling
