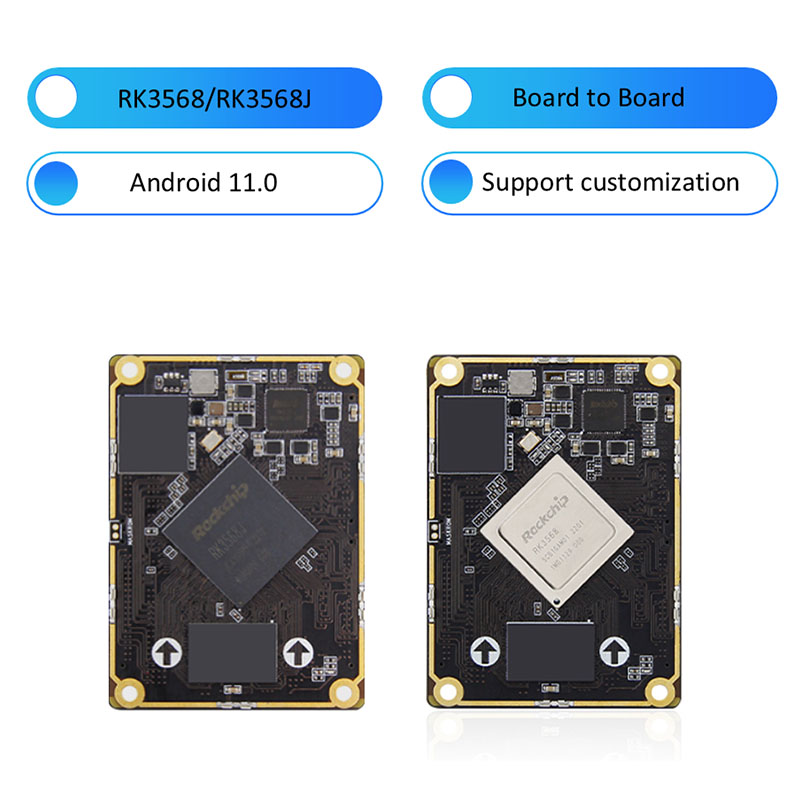

RK3568J RK3568 Board to Board SOM Core Board

This full-featured board (BTB interface) can be used as a high-performance single-board computer and embedded motherboard for display, control, network transmission, file storage, edge computing and other scenarios.

Using RockchipRK3568 (commercial grade)/RK3568J (industrial grade) as the main chip, it adopts 22nm process technology, with a maximum frequency of 2.0GHz, integrated quad-core 64-bit Cortex-A55 processor and MaliG522EE graphics processor, supports 4K decoding and 1080P encoding, supports dual-frequency display, built-in independent NPU, can be used for lightweight artificial intelligence applications.

Provide a variety of memory and storage combinations to choose from, balanced onboard hardware configuration, wide range of applications.

Built-in independent NPU computing power can reach 1TOPS (3568J is 512MACNPU), can be used for lightweight artificial intelligence applications.

It has high integration and rich expansion interfaces, and is equipped with dual Gigabit Ethernet ports, HDMI, eDP, 5MiniPCle, SATA, M.2, USB3.0, USB2.0, MIPI screen interface, MIPI camera interface, audio interface and other peripherals, which can give full play to the performance of the processor and further expand the use scenarios of the board.

Officially supports mainstream Andriod 11, Debain, Ubuntu operating system images, and can be applied to a variety of different application environments.

Provide Completely open source, official tutorials, complete SDK driver development packages, design schematics and other resources, you can easily get started without dead ends.

RK3568J RK3568 Board to Board SOM Core Board Features

It can share a baseboard with our RK3566 BTB core board. In other words, you only need to design one baseboard to support two core boards.

Commercial grade and Industrial grade are available.

Reasonable price with high quality.

Ready to use. supports multiple operating systems.

Dual Gigabit Ethernet interfaces, support dynamic voltage regulation.

Built-in independent NPU, computing power can reach 512MAC/1TOPS.

Supports one-click switching of mainstream architecture models, can be used for lightweight artificial intelligence applications.

Powerful image analysis capabilities, easy decoding 4K supports 4K@60 frames H.264\H.265\VP9 format decoding and 1080P60 frame H.264\H.265 format encoding.

Dual-screen display, high-definition and portable.

Support dual-screen display, support up to 4K60 frames + 1080P60 frames image output at the same time.

With rich expansion interfaces to meet various external needs

RK3568J RK3568 Board to Board SOM Core Board Parameters

RK3568 BTB core board hardware configuration

Connector: Male: SGDBM-05-80P-H10 Female: SGDBF-05-80P-H30

Main chip: RK3568/RK3568J (quad-core Cortex-A55, 2GHz, Mali-G52)

IO: BTB leads to 320 pins, 0.5mm spacing, leads to all I0

Memory: 1/2/4/8GB, LPDDR4/4x, 1560MHz

Storage: 8/32/64/128GB, eMMC

k3568 BTB baseboard hardware configuration

Connector: Male: SGDBM-05-80P-H10 Female: SGDBF-05-80P-H30

Power interface: 12V@1A (1A and above) DC input, DC interface

Ethernet: 10/100/1000M adaptive Ethernet port*2

HDMI: HDMI2.0 screen interface, supports dual-screen display, maximum resolution 4096*2160@60Hz

MIPI-DSI: MIPI screen interface*2, can be plugged into Wildfire MIPI screen, support dual-screen display: single MIPI mode maximum resolution 1920*1080@60HZ

MIPI-CSI: MIPI camera interface*2, can be plugged into IMX415/OV8858 camera

eDP: eDP1.3 screen interface*1, eDP touch interface*1; support dual-screen display

USB2.0: Type-A interface*3 (HOST); Type-C interface*1 (OTG), for firmware burning interface

USB3.0: Type-A interface*1 (HOST)

M.2 interface: M.Key type solid state drive, PCle3.0*2 Lanes; can be plugged in 2280 specification NVME solid state drive

PCle interface: Mini-PCle interface, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCle interface module

SIM card holder: SIM card function needs to be used with 4G module

SATA interface: standard SATA interface*1; SATA power supply interface*1, supports 12V output

CAN:CAN*2

ADC: ADC acquisition interface*1

Serial port: Debug serial port*1 (UART2) default parameter 1500000-8-N-1; LVTTL serial port*2 (UART7&UART9); RS232*2 (UART7&UART9) RS485*2 (UART3&UART4)

TF card holder: supports Micro SD (TF) card boot system, up to 512GB

Audio: Audio output, 3.5mm audio holder*1 (green); Audio input, 3.5mm audio holder*1 (red); MIC microphone interface*1 SPK speaker interface*1, can connect 1W power speaker

Button: power button; reset button; Recovery button

Infrared receiver: supports infrared remote control function

RTC: RTC power socket*1

Fan interface: supports installation of 5V fan for cooling
